Huali Chilled Water Wall Mounted Fan Coil Unit

Huali Chilled Water Wall Mounted Fan Coil Unit thumbnail-1
Huali Chilled Water Wall Mounted Fan Coil Unit photo-1
US$ 79 - 299 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Fan Coil Unit, Split Type Wall Mounted
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Shenzhen Jinhuali Refrigeration Plant Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Fan Coil Unit, Split Type Wall Mounted
Place of Origin Guangdong, China
Brand Name Huali
Model Number HLC~102G
Operating Voltage Other, 220V
Mounting Split
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

CE water chiller and heat pump Wall Mounted Chilled Water Fan Coil Unit



Components:

It consists of heat exchanger, water pipe, filter, fan, water pan, exhaust valve, holder and etc.



1. Motor



The motor is adopts motor of low noise three speed and one way four capacitor.



2.Fan



It is adopts the leafy centrifugal rotor, the wind turbines with a variety of motor optimization matching to ensure the unit’s various specification.



3.Heat exchanger



It is adopts seamless copper tube and aluminum finned tube expanding machine, Fin with copper pipe tightly bound, fin using quadratic flanging, open air turbulence window, it can play the best effect of heat transfer, each unit with 12.5 kg/cm2 pressure leak detection.



4.Condensate plate



Its adopts the stamping forming process, to ensure the condensate plate to keep strictness.



5.Shell



The unit’s shell combined by high quality galvanized sheet metal parts assembly molding. It has left and right type and free exchange type if necessary. It also can set the return air box when necessary, operation is simple. The body structure is compact, light weight, beautiful appearance generous, pipes, wires, convenient and easy to installation.

Description

1.Fan coil unit with CE certificate



2.Air low range: 510CMH-1020CMH or 300CFM to 600CFM



3.Cooling capacity range:2.8KW-5.6KW



4.Heating capacity:4.19KW-8.22KW



6.Fan coil unit with low noise

Parameter




       Model   HLC~51G68G85G102G
 Air flow m3/h5106808501020

Cooling capacity		W2800370047005600
BTU9556126281604119113

Heating capacity		W4190549069308220
BTU14300187372365228055
 Water flow kg/h6007709601190
 Input Power W52627696
 Noise level   dB(A)39414345
 Pressure of outlet12Pa
 Power220V / 1Ph / 50HZ
 Insulated gradeE
 Heating discharge finVertical blinds style
WA
Quantity of the Motor		1111
WM
Quantity of the Fan		2222
LA Water inlet pipeDN20       internal thread
LM Water outlet pipeDN20       internal thread
 Condenser pipeDN20       internal thread

 Dimension:
 ModelHLC-51GHLC-68GHLC-85GHLC-102G
 A85085010301080
 B290290290330
 C180180185215






Advatages of  wall mounted fan coil unit
  • Quiet.    Compared with other air-conditioning methods, the operation noise of the fan coil unit is very low because the only moving parts are the fan and fan motor.
  • Safe Operation.    Lower noise by hot galvanized sheet steel with 6mm acoustic insulation layer.
  • High Durability.    The fan motor is double-sealed against moisture and dust, providing long operation life.
  • Integrated models.    Integrated model range airflow varies from 250~2000 m3/h including nine models.intelligence operations.
  • Fresh air by high efficiency synthetic fiber washable filter or aluminum filter.
  • V shape extended drain pan design greatly increases the drainage efficiency.
  • High quality purple copper, with high diathermanous efficiency, tenacity and rigidity characteristic to bear high hydraulic pressure especially, suits super high building use

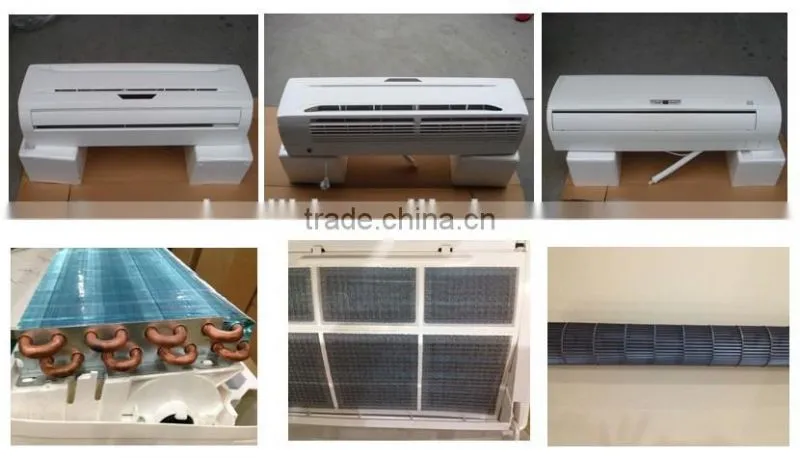

Fan coil unit Details



 Huali Chilled Water Wall Mounted Fan Coil UnitHuali Chilled Water Wall Mounted Fan Coil Unit

Our Customer

About our certification

Company profile

Shenzhen Jinhuali Technology Co.,Ltd. is a modern large enterprise, which integrates technology, industry and trade. It is a professional enterprise that provides central A/C, refrigeration plant, eletromechanical device, electric equipment and electronics, as engineering design and installation service. HUALI takes an area of over 100,000m2  with an asset of more than 100 millions and empolyee of more than 500 persons, and its has 5 branch companies in the rest of China.



Why chose us ?

Wall Mounted Fan Coil parameter Quotation Remarks

1.Packing: Standard Export Packing



2.Delivery Day: 10-25 days after deposit is confirmed



3.Delivery term: CIF,FOB or CNF EX-Work are welcomed



4.Payment term: 30% deposit by TT, clear payment before delivery; Or 100% Irrevocable non-transferred LC at sight



5.Warranty: Our standard warranty for defect parts covers from the date of original installation or 12 months from the date of shipment

   from the factory, whichever comes first.



6.Validity: 20 days



7.Payment currency: USD
