Room Use Water chiller fan coil unit

FOB Price

USD $50 - $200 / Unit

1 Unit(Min.Order)

Product Details

Condition:	New	Type:	Fan Coil Unit	Place of Origin:	Guangdong, China
Brand Name:	HUALI	Model Number:	HLC~51G-102G	Operating Voltage:	Other, 220VAC
Mounting:	Split	Certification:	CE	After-sales Service Provided:	Engineers available to service machinery overseas

Room Use Water chiller fan coil unit

Advantages of wall mounted fan coil unit

Quiet. Compared with other air-conditioning methods, the operation noise of the fan coil unit is very low because the only moving parts are the fan and fan motor.
Safe Operation. Lower noise by hot galvanized sheet steel with 6mm acoustic insulation layer.
High Durability. The fan motor is double-sealed against moisture and dust, providing long operation life.
Integrated models. Integrated model range airflow varies from 250~2000 m3/h including nine models.intelligence operations.
Fresh air by high efficiency synthetic fiber washable filter or aluminum filter.
V shape extended drain pan design greatly increases the drainage efficiency.
High quality purple copper, with high diathermanous efficiency, tenacity and rigidity characteristic to bear high hydraulic pressure especially, suits super high building use

Parameter of split fan coil unit

Model HLC~			51G	68G	85G	102G
Air flow m3/h			510	680	850	1020
Cooling capacity		W	2800	3700	4700	5600
Cooling capacity		BTU	9556	12628	16041	19113
Heating capacity		W	4190	5490	6930	8220
Heating capacity		BTU	14300	18737	23652	28055
Water flow kg/h			600	770	960	1190
Input Power W			52	62	76	96
Noise level dB(A)			39	41	43	45
Pressure of outlet			12Pa
Power			220V/1 50HZ
Insulated grade			E
Heating discharge fin			Vertical blinds style
WA	Quantity of the Motor		1	1	1	1
WM	Quantity of the Fan		2	2	2	2
LA	Water inlet pipe		DN20 internal thread
LM	Water outlet pipe		DN20 internal thread
Condenser pipe			DN20 internal thread

	Dimension:
	Model	HLC-51G	HLC-68G	HLC-85G	HLC-102G
	A	850	850	1030	1080
	B	290	290	290	330
	C	180	180	185	215
	Remark: it is DN20 for both inlet/outlet water pipes and Condenser pipe.

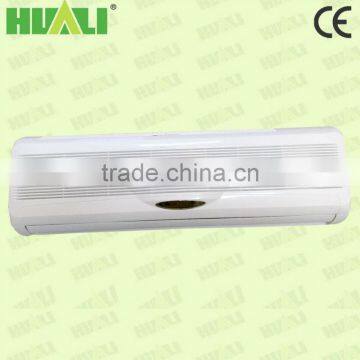

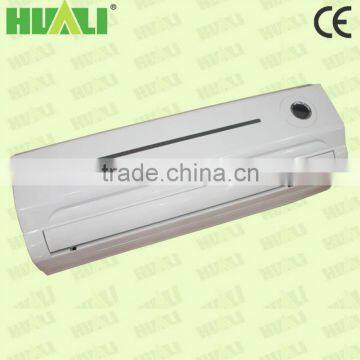

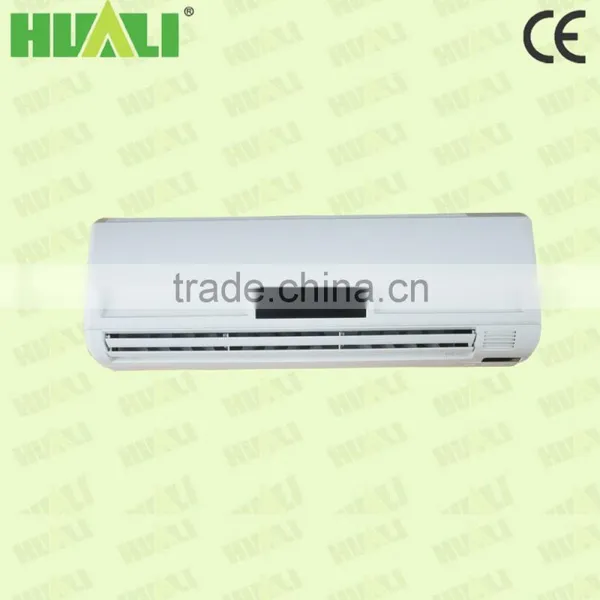

Photo of split fan coil unit
