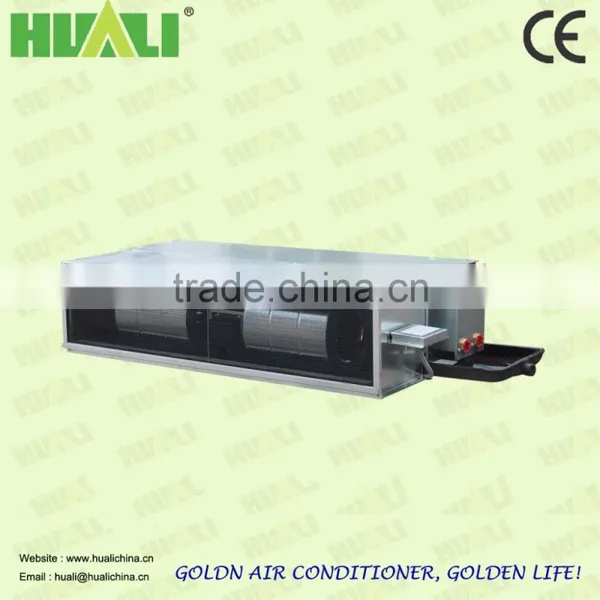

Horizontal Concealed Chiller Water Fan Coil For Comerses,Ducted Type Fan Coil
US$ 70 - 245
MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Other, Air Conditioner Parts, Fan Coil Unit
Application:
Commercial
Certification:
CE
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Horizontal Type Fan Coil Unit Energy Saving With Chilled Water CooledUS$ 70 - 245MOQ: 1 Piece -
CE Water Chiller for Laser MachineUS$ 550 - 1,500MOQ: 1 Piece
-
Industrial Air Cooled Water Water Cool ChillerUS$ 1,299 - 13,999MOQ: 1 Set
-
Water Cooling ChillerUS$ 2,000 - 30,000MOQ: 1 Set
-
China High Quality Water to Water Source Heat Pump ManufactureUS$ 1,500 - 13,500MOQ: 1 Set
Type
Other, Air Conditioner Parts, Fan Coil Unit
Application
Commercial
Certification
CE
Place of Origin
Guangdong, China
Brand Name
Huali
Model Number
HLC~34HC-238HC

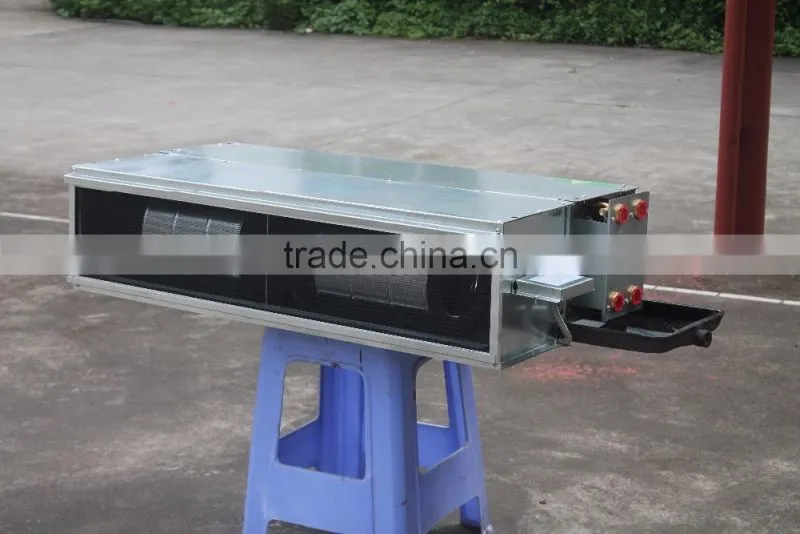

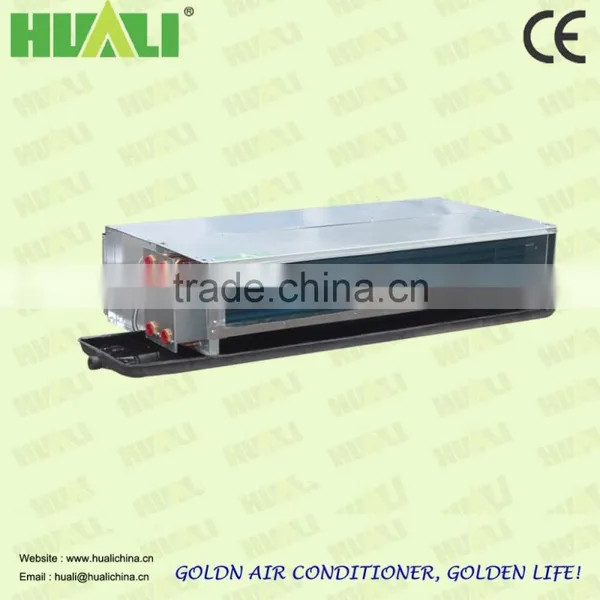

Horizontal Concealed Chiller Water Fan Coil For Comerses,Ducted Type Fan Coil
| Horizontal Concealed Fan Coil Unit | |||||||||||
| ModelHLC~ | 34HC | 51HC | 68HC | 85HC | 102HC | 136HC | 170HC | 204HC | 238HC | ||
| Air flow (m3/h) |
High speed | 340 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | 2380 | |
| Medium speed | 255 | 383 | 510 | 638 | 765 | 1020 | 1275 | 1530 | 1785 | ||
| Low speed | 170 | 255 | 340 | 425 | 510 | 680 | 850 | 1020 | 1190 | ||
|
Cooling capacity |
High | W | 2247 | 3146 | 4146 | 5056 | 5955 | 7758 | 9657 | 11601 | 13965 |
| BTU | 7669 | 10737 | 14150 | 17256 | 20324 | 26478 | 32959 | 39594 | 47663 | ||
| Medium | W | 1620 | 2440 | 3290 | 4120 | 4850 | 6550 | 8190 | 9730 | 11580 | |
| BTU | 5529 | 8328 | 11229 | 14062 | 16553 | 22355 | 27952 | 33208 | 39523 | ||
| Low | W | 1310 | 2010 | 2650 | 3320 | 3900 | 5300 | 6610 | 7860 | 9350 | |
| BTU | 4471 | 6860 | 9044 | 11331 | 13311 | 18089 | 22560 | 26826 | 31912 | ||
|
Heating capacity |
High | W | 3251 | 4697 | 6189 | 7747 | 9491 | 11997 | 14732 | 18162 | 22137 |
| BTU | 11096 | 16031 | 21123 | 26441 | 32393 | 40946 | 50280 | 61987 | 75554 | ||
| Medium | W | 2350 | 3520 | 4530 | 6040 | 6850 | 9260 | 11740 | 14140 | 16360 | |
| BTU | 8021 | 12014 | 15461 | 20615 | 23379 | 31604 | 40069 | 48260 | 55837 | ||
| Low | W | 1620 | 2470 | 3130 | 4170 | 4740 | 6500 | 8180 | 9710 | 11290 | |
| BTU | 5529 | 8430 | 10683 | 14232 | 16178 | 22185 | 27918 | 33140 | 38533 | ||
| Surplus pressure of outlet (Pa) |
Normal | 0 or 12 | |||||||||
| High static pressure | 30 or 50 | ||||||||||
| Cooling water temperature | 7-12°C | ||||||||||
| Hot water temperature | 40-60°C | ||||||||||
| Power supply | AC220V/50Hz | ||||||||||
| Heat Exchanger | Type | 2.2mm copper pipes covered into aluminum fins, fin pitch 2.2mm | |||||||||
| Water supply kg/h | 324 | 482 | 655 | 814 | 936 | 1278 | 1602 | 1915 | 2178 | ||
| Water resistance kPa | 30 | 30 | 30 | 30 | 40 | 40 | 40 | 40 | 50 | ||
| Working pressure | 1.6MPa | ||||||||||
|
Low static pressure FCU |
Input power w | 37 | 52 | 62 | 76 | 96 | 134 | 152 | 189 | 228 | |
|

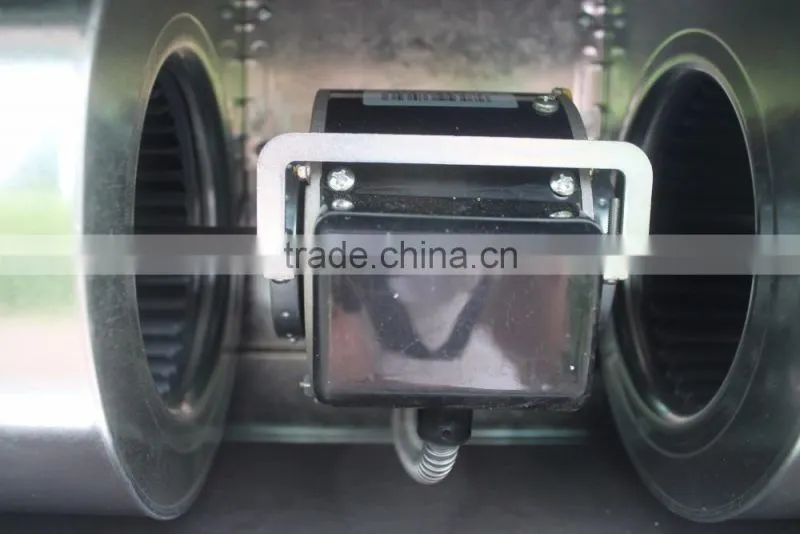

Motor power w |
10 | 16 | 20 | 25 | 30 | 20×2 | 25×2 | 30×2 | 40×2 | ||
| High static pressure FCU |
Static pressrue 30Pa |
Input power w |
44 | 59 | 72 | 87 | 108 | 156 | 174 | 212 | 253 |
|
Motor power w |
12 | 20 | 25 | 30 | 40 | 25×2 | 30×2 | 40×2 | 50×2 | ||
| Static pressure 50Pa |
Input power w |
49 | 66 | 84 | 100 | 118 | 174 | 210 | 250 | 300 | |
|
Motor power w |
16 | 25 | 30 | 40 | 50 | 30×2 | 40×2 | 50×2 | 60×2 | ||
| Fan motor quantity | 1 | 2 | 2 | 2 | 2 | 3 | 4 | 4 | 4 | ||
|
Noise dB(A) |
Low static pressure | ≤37 | ≤39 | ≤41 | ≤43 | ≤45 | ≤46 | ≤48 | ≤50 | ≤52 | |
| High static pressure 30Pa | ≤40 | ≤42 | ≤44 | ≤46 | ≤47 | ≤48 | ≤50 | ≤52 | ≤54 | ||
| High static pressure 50Pa | ≤42 | ≤44 | ≤46 | ≤47 | ≤49 | ≤50 | ≤52 | ≤54 | ≤56 | ||
| Pipe | Inlet/outlet water pipe | 3/4 "internal thread | |||||||||
| Condensation water pipe | 3/4" external thread | ||||||||||
| Dimension |
L mm | 780 | 880 | 980 | 1080 | 1180 | 1480 | 1680 | 1780 | 1880 | |
| W mm | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | ||
| H mm | 260 | 260 | 260 | 260 | 260 | 260 | 260 | 260 | 260 | ||
| 20GP container loading quantity | 325 | 290 | 260 | 236 | 216 | 172 | 152 | 143 | 135 | ||
| 40GP container loading quantity | 666 | 591 | 531 | 482 | 441 | 351 | 309 | 292 | 277 | ||
| Main materials | |||||||||||
| Aluminium thickness:0.014mm, Copper tube thickless:0.35mm, Galvanized sheet: 1mm, Packing: Carton | |||||||||||
|
|
|||||||||||
Note:
1. Cooling: Indoors DB 27°C,WB 19.5°C; Chilled water inlet/outlet temp. 12°C/7°C.
2. Heating: Indoors DB WB 21°C, heating water inlet&outlet temperature 60°C/50°C;
3.The noise level based on: background noise 11.5Db(A) semi-anechoic room.
4. Water resitance refers to that of rated water flow volume;
5. Input power refers to that of High speed air flow;
6. Above parameters are for your reference to model choice of FCU with cooling and heating; Heating energy of one row is 40% of three rows'; Low static pressure air flow volume loss: 10%, high static pressure air flow volume loss: 20%.
