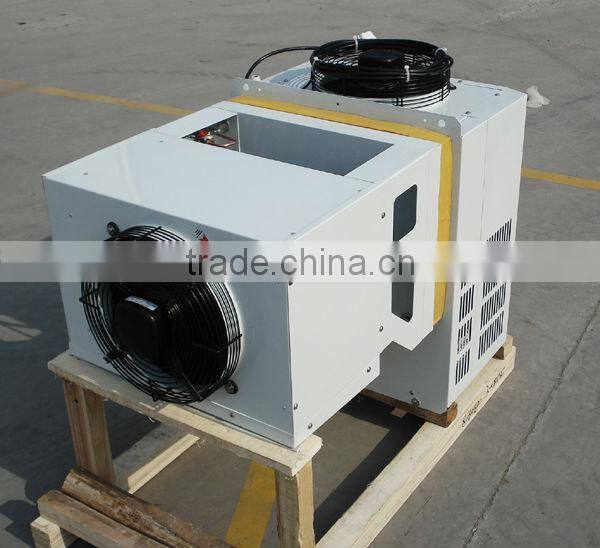

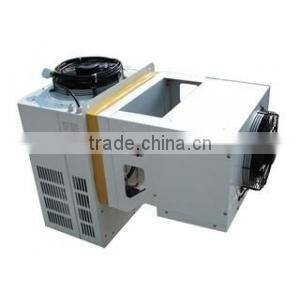

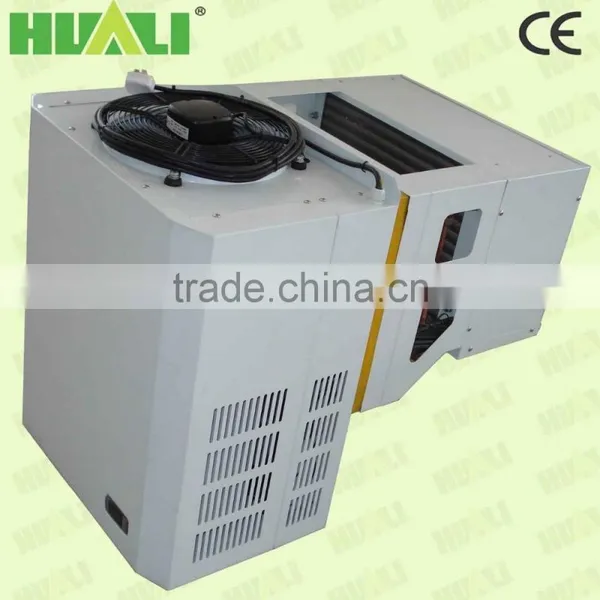

Refrigeration Condensing Unit for Cold Room,super Low Temperature -15 to -18 Degree

1. Product description

The HLMQ series of machine, called Integrated machine for cold storage, that integrate evaporator, condenser, compressor, electrical control units into one compact body. It can be widely used for small cooled and cold storage room of Temperature of -5°C~5°C or - 15°C~-20°C, in hotels, restaurants, medicines, agricultural, chemicals industries all other place where cold storage is needed.

2.Main Components

--Compressor

--High efficiency condenser

--Evaporator

--Fan

--Famous brand expansion valve

3.Unit Features

3.1 With very compact structure

3.2 With TECUMSEH hermetic compressor

3.3 With high-efficiency in-grooved copper tube and aluminum fin heat exchanger

3.4 With word famous brand refrigeration parts

3.5 Electronic boards are with functions of automic temperature set,control,and electric heater defrosting

3.6 Protection devices for over loading,over heating,lack of phase,high&low pressure,etc

3.7 Safe,easy,and low cost for installation and operation
