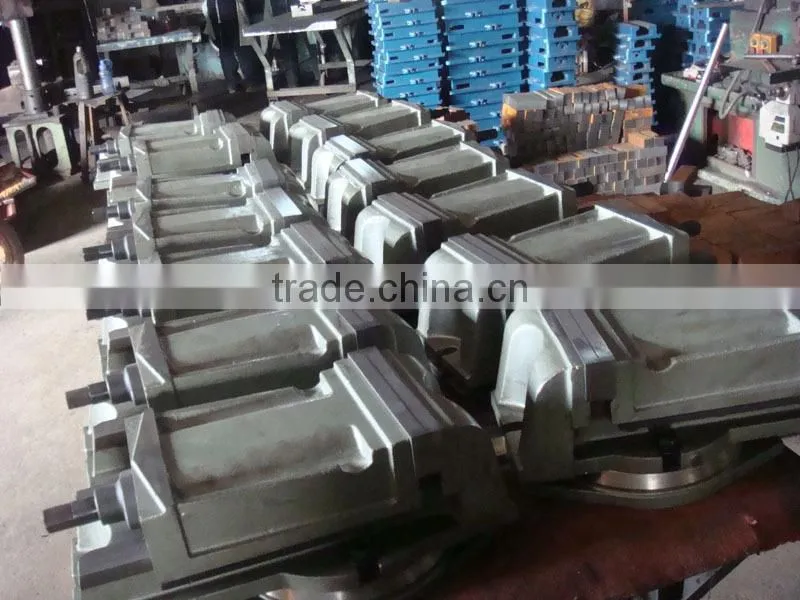

Q13(QB) Series High Quality Milling Machine Vise
It features as follows:
1 It is adopted the high quality cast iron.
2 The parallelism and verticality of two jaws are less than 0.025mm/100mm.
3 It can be widely used for milling and drilling machine to process all kinds of surface, slots and holes.
Model | Width of jaw | Height of jaw | Total height | Max. opening | G.W/N.W | Qty | Packing size |
Q13136 | 135mm | 36mm | 118mm | 170mm | 17/16kg | 1 | 420x200x150mm |
Q13160 | 160mm | 51mm | 142mm | 180mm | 27/26kg | 1 | 420x210x170mm |
Q13200 | 200mm | 64mm | 172mm | 220mm | 38/37kg | 1 | 500x240x180mm |
Q13250 | 250mm | 64mm | 186mm | 280mm | 57/55kg | 1 | 610x300x200mm |
Q13320 | 320mm | 81mm | 205mm | 360mm | 86/84kh | 1 | 720x390x220mm |
Please feel free to contact us if you are interested in our products, we will offer the top quality and best service for you. thank you very much!
