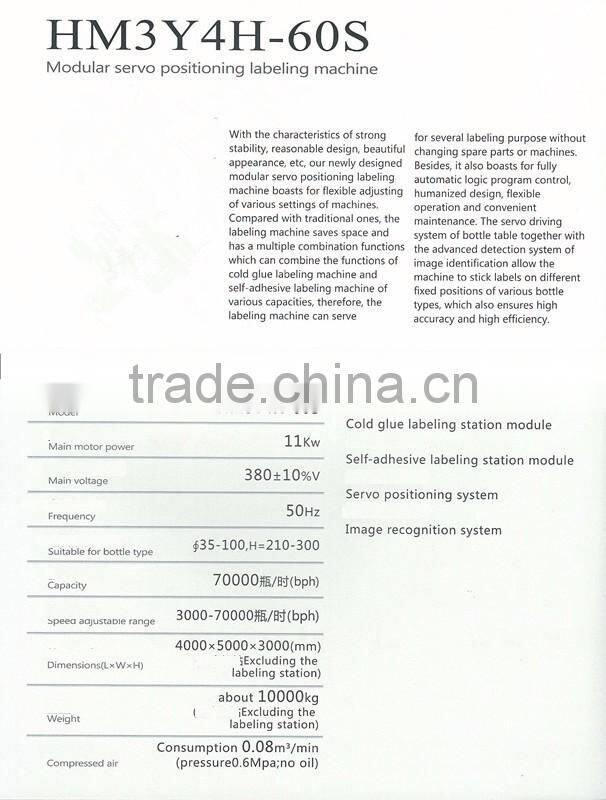

HM3Y4H-60S Fully Automatic Modular Bottle Labeling Machine

HM3Y4H-60S Fully Automatic Modular Bottle Labeling Machine

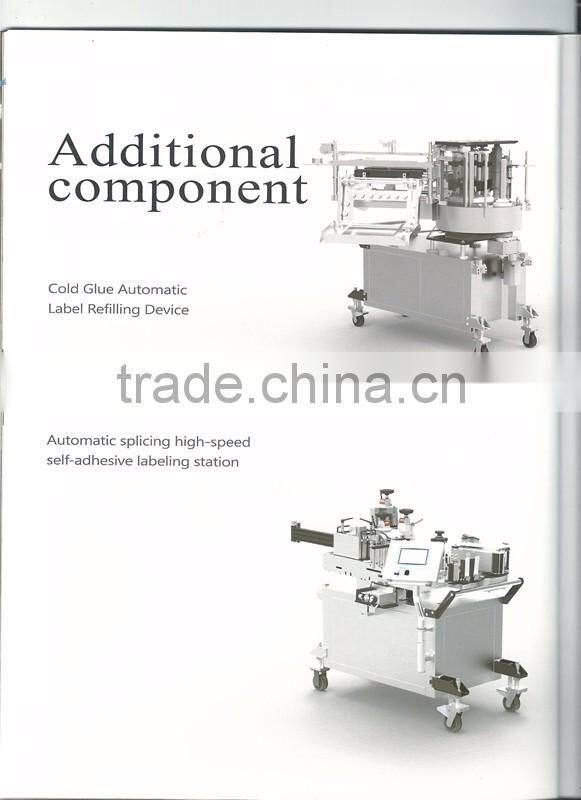

Additional component

Cold Glue Automatic Label Refilling Device

The cold glue automatic label refilling device is applied to cold glue labeling machine with high productivity to achieve continuous operation instead of refilling label web manually because of limited space of label container. Besides, together with the large label storage the automatic label refilling device can save human resources to a great extent as well as save cost. What’s more, with the higher working efficiency the automatic label refilling device can shorten the time for label changing and label refilling .

Automatic splicing high-speed self-adhesive labeling station

The automatic label splicing self-adhesive labeling station is suitable for labeling with high productivity to achieve continuous production at high speed without interruption or stop. The labeling station is equipped with two labeling plates. During operation the label web will be picked up from one of the labeling plates and whenever the P.E. cell detects the shortage of label web it will send signals to cutting unit of automatic label splicing unit to cut label web on fixed label splicing position. Then, label web on the other flabel plate will be picked up in advance to wait for label splicing. The former trailing edge of the cutted label and leading edge gluing will be glued together by double side adhesive tapes under pressure of air cylinder in order to ensure automatic label splicing. Above all, the labeling station allows labeling web changing accurately  and quickly without slow down or stop of the machine which greatly improves working efficiency as well as reducing operator’s workloads.

Simple operation

Colorful touch screen

Convenient and fast to set parameters

Setting parameters by Multi-level authorization management

Display the fault status through the form of text and dynamic interface

Show visually the current speed and output

Accumulate the output of different stage

Switch freely between automatic and manual mode

Easy to understand and operate

Protection of faulty operation

Labeling advantages

1.   Connection type of the upper cover

Using this way can keep labeling machine working smooth and reasonable position.

2.   Centralized lubrication

Centering all lubrication points on this part, it is convenient to repair and operate.

3.   Lubrication of the case The quantity of oil and its quality can be showed, and it can achieve lubrication point to point ,more accurate and save oil.

4.   Changing bottle type quickly

There is a device for disassembling quickly on every changing parts, which can change the bottle type quickly and easily and you don’t need any tool in the whole processing.

5.   Lubrication of cam table

Through continuous cycle, wastes such as iron filings produced during operation can be taken away which can keep the machine clean, reduce frication and ensure sufficient lubrication.

6.   Adjusting conveniently on labeling station

There is graduation under the labeling station .In has advantages of memorizing the position, adjusting conveniently and operating easily.
