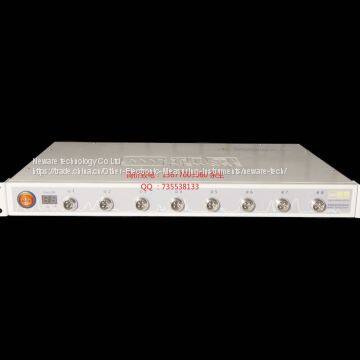

Rechargeable Battery Tester Capacity Rate Resistance Cycle Life Test
US$ 1200 - 1800
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Neware
Place of Origin:
China
Model Number:
BTS-4008-5V10mA
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong/Shenzhen
Delivery Detail:
60 days
Related Products
-
Rechargeable Battery Tester Capacity Rate Resistance Cycle Life TestUS$ 1200 - 1800MOQ: 1 Unit -
SB822 3BSE018172R1 Rechargeable Battery UnitNegotiableMOQ: 1 Piece
-
JRC NBB-248A Rechargeable BatteryNegotiableMOQ: 1 Piece
-
12 \"16\" Rechargeable Battery Table Fan Emergency DC 12V Electric Fan Household Table Portable Electric Fan（Wechat:13510231336）NegotiableMOQ: 2000 Pieces
-
ABB SB822 3BSE018172R1US$ 1 - 66MOQ: 1 Piece
Brand Name
Neware
Place of Origin
China
Model Number
BTS-4008-5V10mA
About Neware
Since 1998, Neware has been committed to providing world-class testing solutions for the batteries and capacitors. We adopt SAP as our ERP system and comply with ISO9000 quality management standard. Our factory spans over 4,400 square meters in industrial park, Shenzhen office spans over 1,200 square meters, housing all R&D, Engineering, Sales and CRM personnel. To explore international market, we launched HONG KONG office in 2011.
We adopt SAP as our ERP system and comply with ISO9000 quality management standard. Our factory spans over 6,000 square meters in industrial park, Shenzhen office spans over 2,200 square meters, housing all R&D, Engineering, Sales and CRM personnel.
Products overview
BTS-4000(Power)
BTS4000 entered into market in the year of 2008. Now it's one of the most successful and most popular battery testing system in China. Thousands of battery manufacturers, battery research institutes and laboratories use it as their primary testing partner for their various testing activities.
Due to the rapid data acquisition frequency, BTS-4000 could also be applied for super capacitor or EDLC(Electonic Double Layer Capacitor) tests. Through our advanced software, the capacitance, DCIR(Direct Current internal Resistance) and LC(Leakage Current) could be easily calcultaed.
Applications
DCIR/Pulse Test/HPPC;
Rate, Static capacity, cycle life and etc.
Feature
Resolution: AD:16bit; DA:16bit;
Accuracy: 0.05% FS;
Response Time: ≤10ms(current in the range 10%~90% FS);
Max. output Power: 21KvA;
Data Acquisition Frequency: 10Hz/100Hz optional;
Minimum Pulse Width: 500ms
BTS-8000(Driving Cycle Simulation)
BTS-8000 is based on Neware fifth-generation testing system. It supports EV battery simulation test, pulse charge and pulse discharge test, Cycle life test, and charge and discharge test with customer-defined rate.
BTS-8000 is now widely used by research institutes, colleges and universities and EV manufacturers. It’s the ideal simulation testing system for single cells and battery modules.
Applications
Driving Cycle Simulation;
Pulse Test/HPPC;
Rate, Static capacity, cycle life and etc.
Feature
Resolution: AD:16bit; DA:16bit;
Accuracy: 0.1% FS;
Response Time: ≤20ms(current in the range 10%~90% FS);
Max. output Power: 21KvA;
Data Acquisition Frequency: 10Hz;
Current Ranges: Max. 4 current ranges;
Minimum Pulse Width: 500ms
IGBT-7000(Electric Vehicle Testing System)
Characterized with IGBT, reversible AC/DC converter and CAN supported, our EVTS 7000 brings you higher energy efficiency, smaller space and much convenient to utilize the existing gauge intergrated in BMS/BMU.
Applications:
DCIR/ Pulse Test/ HPPC;
Rate, Static capacity, cycle life and etc.
Feature
Resolution: AD:16bit; DA:16bit;
Accuracy: 0.1% FS;
Response Time: ≤10ms(current in the range 10%~90% FS);
Max. output Power: 21KvA;
Data Acquisition Frequency: 10Hz;
Channels Parallel: Up to 4 channels;
Minimum Pulse Width: 500ms
For some battery packs without BMS, our auxiliary voltage and temperature sensors will help you detect the voltage and temperature of every single cell in battery packs!!
BTS-9000
BTS-9000 is based on Neware sixth-generation testing system, and mainly used for battery material research, high-precision test, pulse charge discharge test, DCIR (direct current internal resistance) test, and Cycle life test.
BTS-9000 is aimed at research institutes, colleges and universities and battery manufacturers’ labs.
Applications:
GSM/ CDMA/ GPRS and other pulses tests;
Rate, Static capacity, cycle life and etc.
Feature
Resolution: AD:16bit; DA:16bit;
Accuracy: 0.02% FS;
Response Time: ≤100ms(current in the range 10%~90% FS);
Minimumu Pulse Width: 400μs;
Data Acquisition Frequency: 1000Hz;
Voltage Range: 5V;
Current Ranges: Range1: 160μA±32nA
Range2: 5mA±1μA
Range3: 160mA±32μA
Range4: 5000mA±1mA
If any products of these series attract you please contract me.
E-mial: jasonywj94@gmail.com.
Any customised tester and our products specification can also be provided.
