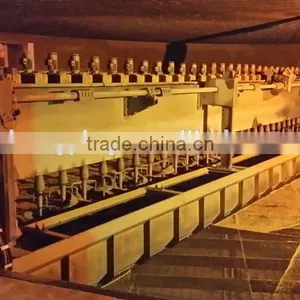

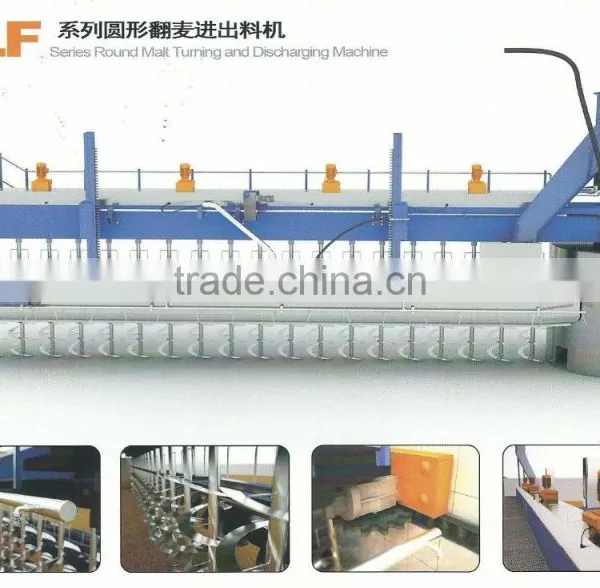

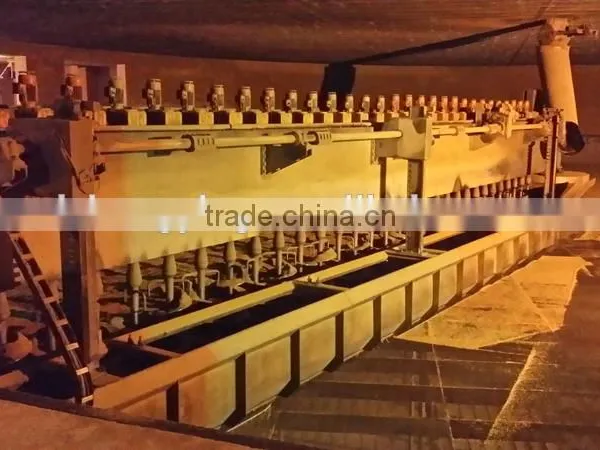

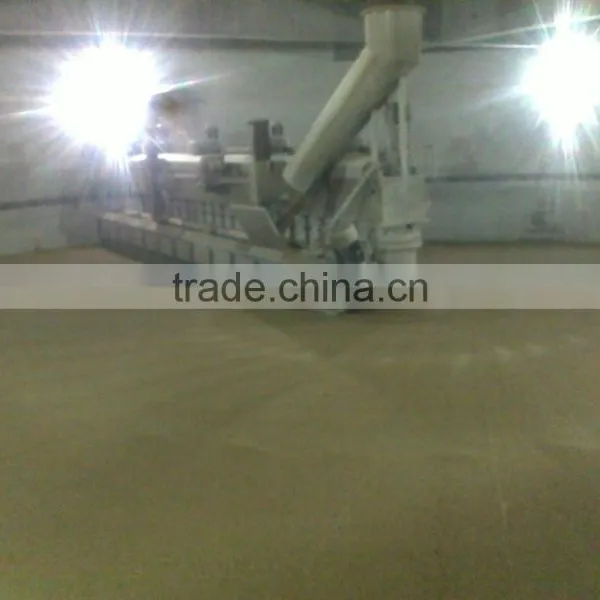

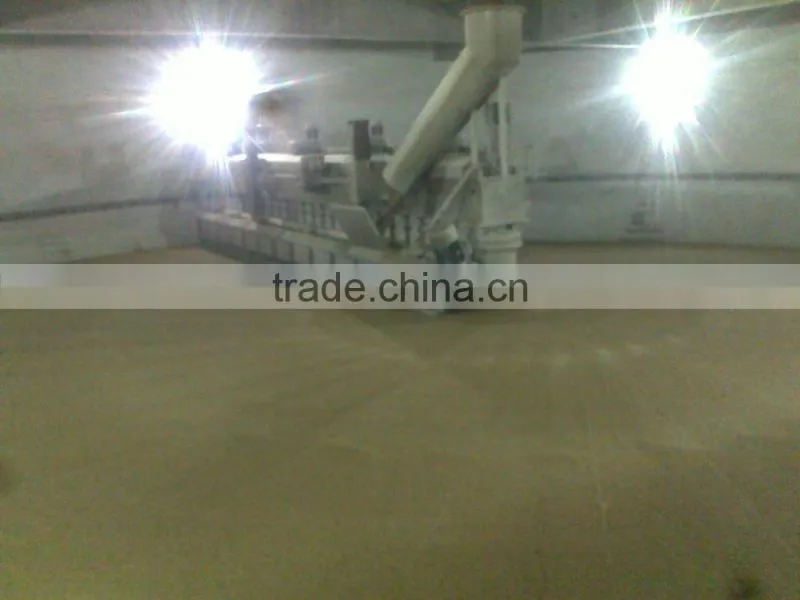

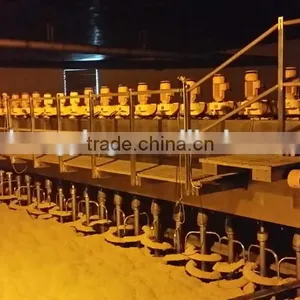

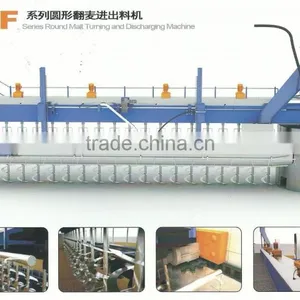

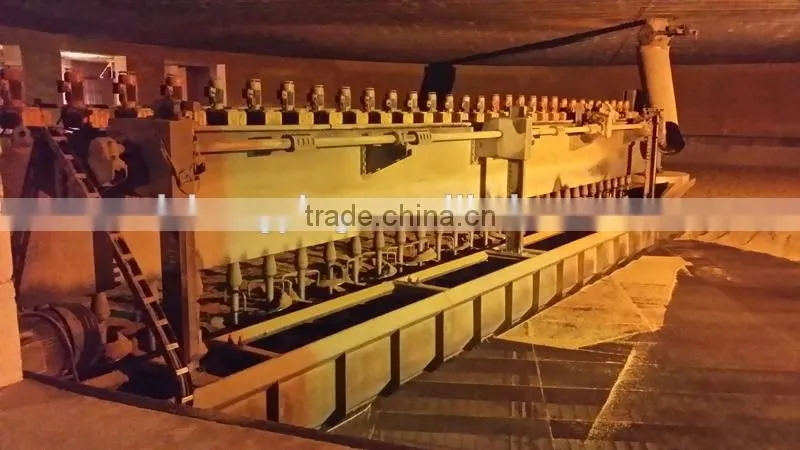

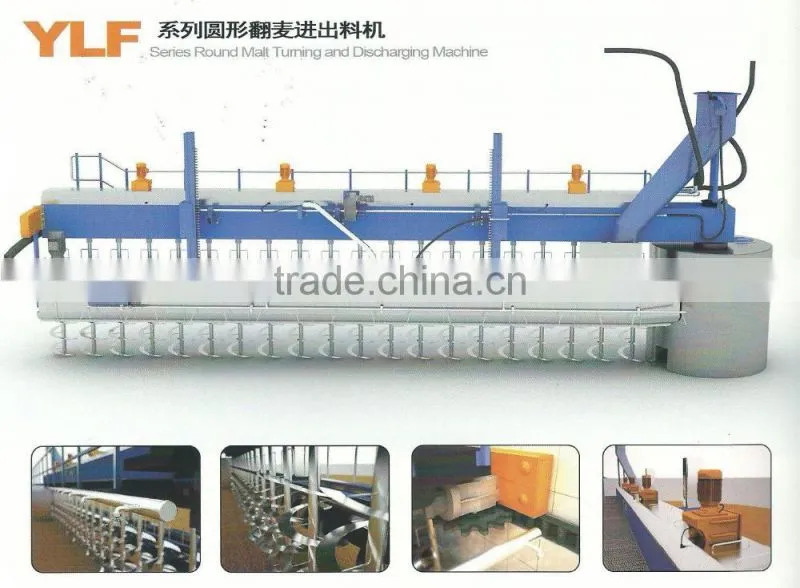

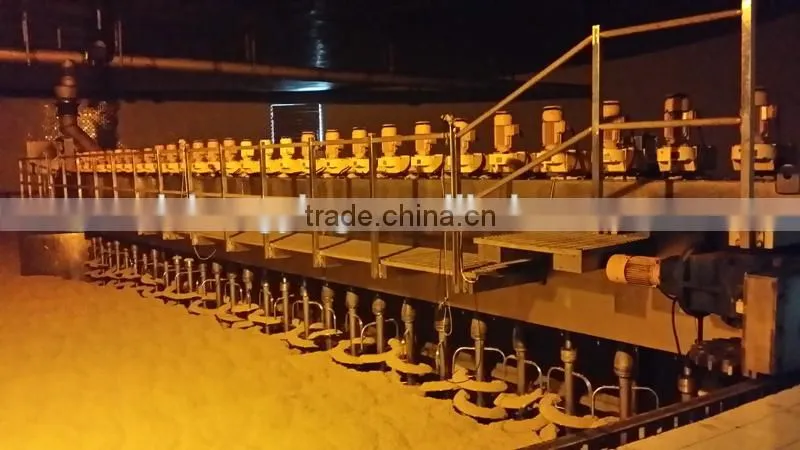

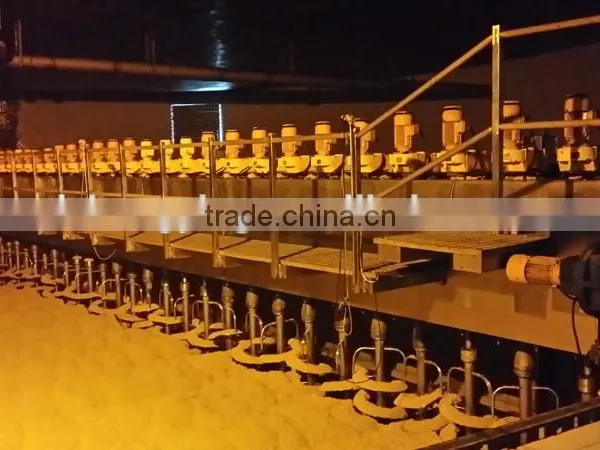

YLF Series round malt turning and discharging machine
Application and features
YLF series round malt turning ad discharging combined equipment is a chief device of turning and discharging malt using at round germination box and drying box.
This machine is a best device for improving malt quality and shortening the discharging time with advanced design and high automatic level.
Technology index:
Item |
YLF13.1 |
YLF10.88 |
YLF18.6 |
YLF23.8 |
YLF35.58 |
YLF40.38 |
Turning diameter m |
13.1 |
10.88 |
18.6 |
23.8 |
35.58 |
40.38 |
Mixer diameter mm |
500 |
500 |
500 |
500 |
500 |
500 |
Mixer screw pitch mm |
250 |
250 |
250 |
250 |
250 |
250 |
Mixer speed r/min |
4.7-16 |
6.5-16.1 |
4-11.4 |
3.8-12 |
3.9-16 |
3.9-16 |
Feeding flattening screw diameter mm |
500 |
500 |
700 |
700 |
1000 |
1000 |
Feeding flattening screw pitch diameter mm |
400 |
400 |
500 |
500 |
800 |
800 |
Feeding flattening screw speed r/min |
67 |
89 |
108 |
108 |
53 |
53 |
Car moving speed m/min |
1.8 frequency conversion |
1.8 frequency conversion |
1.8 frequency conversion |
1.8 frequency conversion |
1.8 frequency conversion |
1.8 frequency conversion |
Equipment power kw |
27.62 |
28.42 |
35.12 |
40.6 |
50.5 |
67.52 |

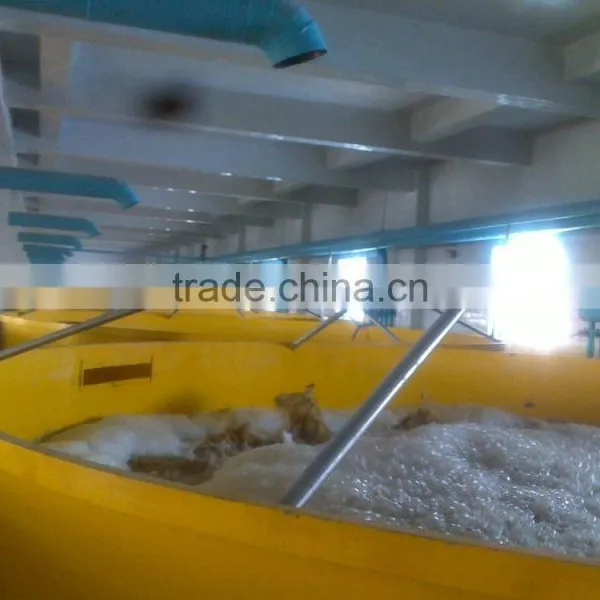

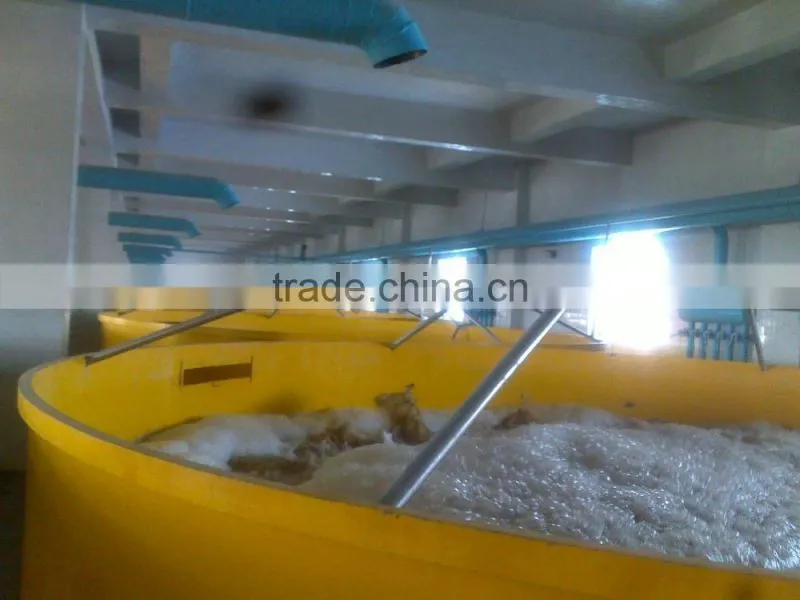

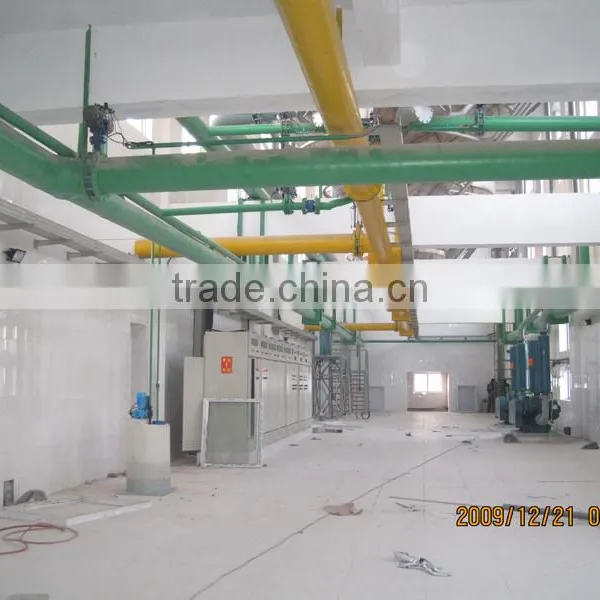

Factory
Please feel free to contact us if you are interested in our products, we will offer the top quality and best service for you! thank you very much!
