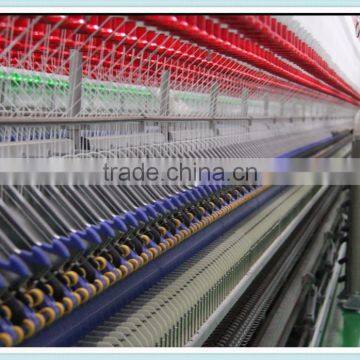

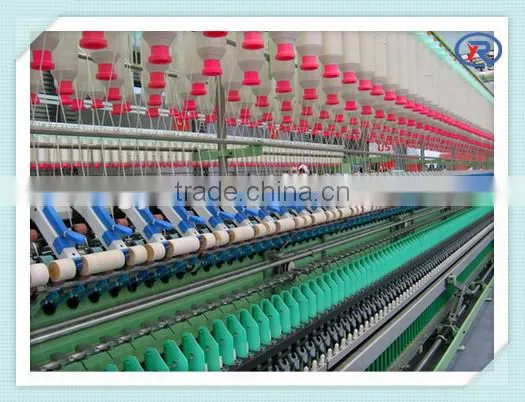

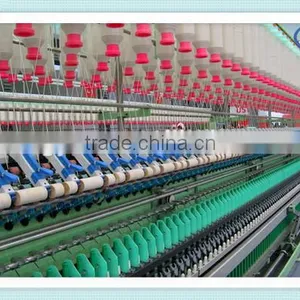

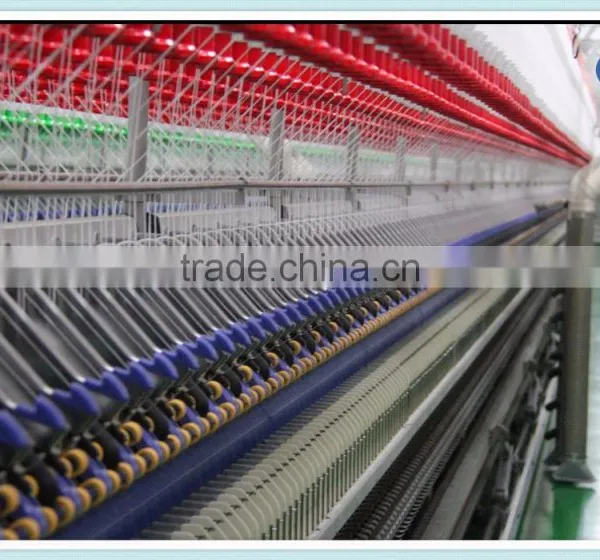

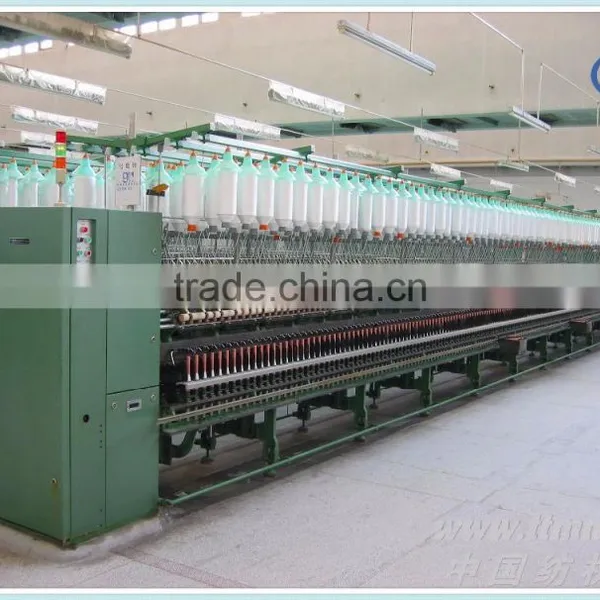

Used ring spinning machine
- 30 Set / Sets per Month
- tianjin
- T/T Credit Card
Product Details
Condition: | Used | Year: | 2011 | Application: | Textile |
Type: | Spinning Production Line | Production Capacity: | 95%-100% | Place of Origin: | Shanxi, China |
Brand Name: | jingwei | Model Number: | FA506 | Spinning Method: | Ring Spinning |
Automatic: | Yes | Dimension(L*W*H): | 17300*750*1390MM | Weight: | 5 Ton |
Power(W): | 15kw | Certification: | ISO9001:2008 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
1.RING SPINNING FRAME: BS518-516D
2.COLOR: BLUE AND GRAY.
3.QUANTITY: 9 SETS
4.NOS. OF SPINDLES: 516 SPINDLES PER FRAME )
5.SPINDLE GAUGE: 70 MM
6.SPUN YARN COUNT: NE 30 TO NE 40 ". 7.TOTAL DRAFT: 16-60 TIMES
8.BREAK DRAFT RANGE: 1.15-1.50
9.DRAFTING SYSTEM: YJ2142C (EQUIVALENT TO SKF PK2025) INCLUDING: PENDULUM ARM, SHORT CRADLE, TWO LOOSE BOSS ROLLER WITH COTS, ONE LOOSE BOSS ROLLER FOR TOP APRON CRADLE. SPACER: 3 COLOURS/2 SPINDLE
10.RUBBER COTS: CHINA
11.FIBER TO BE SPUN: COTTON & BLANDS
12.SPINDLE TYPE:D3203CE-20.5, BLADE TYPE,WHARF DIA: 20.5MM WITH KNEE BRAKE
13. SPINDLE SPEED (MECHANICAL): 12,000 TO 20,000RPM
14.BOBBIN HANGER: DD2 CHINA
15..BOBBIN HANGER ROVING CAP: BIG SIZE
16.ROVING PACKAGE: MAX. 152X406MM
17. CREEL: 6 ROWS WITH BIG ROVING CAPS AND STATIONERY HANGERS (90PCS)
18. LIFT: 8'!
19. WITH AUTOMATIC DEVICE FOR RAIL RESETTING
20. DRIVE: SINGLE JOCKEY PULLEY SYSTEM FOR" tape TENSION
21. STEELRING:PG1-4254 42MMX54MMX3,2MM)CH INA
22. BOTTOM ROLLER DIA: 27X27X27MM CHINA
23. APRON: CHINA
24. SUCTION SYSTEM: PNEUMATIC FLUTE NEW TYPE INDIVIDUAL SUCTION FAN FOR EACH FRAME
25. WITH ANTI BALLOON CONTROL RINGS
26. TWIST: "Z"
27. SPINDLE TAPE: HS-5 HABASIT HEAT JOINTING TATE (SWITZERLAND)
28.INVERTER: ABB ACS510
29. MAIN DRIVE GEARS: IN AUTO OIL BATH
30. BEARING FOR MAIN SHAFT & GEAR HEAD BOX: NSK
31. PLASTIC BOBBIN:6 PC/SPINDLES, PC+GLASS FIBER
32.SNAIL WIRE: "P" TYPE
33.SEPARATOR: ALUMINUM ALLOY
34. DIGITAL DISPLAY & MICROPROCESSOR: E-VIEW TAIWAN & SIEMENS (U.S.A)
35.CLEARER ROLLER: FOR TOP & BOTTOM ROLLERS, top CLEARER ROLLER ONE FOR TWO.
36.main motor: TWO SPEED 22/11 KW
37. main drive: through flat belt
38.Suction motor: 2.2 KW
39.RING RAIL MOTOR: 0.37 KW
40. ELECTRICAL SOURCE: 3-PHRASE: 380V±10%, 50HZ
41. STANDARD SPARE PARTS: INCLUDED
42. OVERHEAD CLEANER: 9 SETS (ONE FOR ONE)
43. Machines PREPARED FOR SPINNING COTTON KD MAN MADE FIBRE UPTO 38MM
(1) Q: Are you a manufacturer or Trade Company?
A: We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.
(2) Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation.
Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
(3) Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.
(4) Q: How about the quality?
A:The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.
(5) Q:Which payment term is accepted?
A: LC
(6) Q: How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.
(7) Q:Can you make speicial voltage of the machines?
A: Yes, If you need special, please inform us and we customize.
ADD: RM.1116-1117,Yihong Building,No.298 North Zhonghua Street,Shijiazhuang,China.
TEL:+86-311-85021376,+8613932118373
FAX:+86-311-85021373
SKYPE:kenword86
Welcome to contact us for detailed consultation.Thank you!
