6.Spindle drive:shaft,Rolling disc drive,single tension plate spindle tape
7.twist300~1600T/M(8~41T/INCH)
8.direction of twist: Z type twist
9.Drawing type:3 rollers,leng/short rubber apron,double area drawing,cradle pressure,roller stand angle 45°
10.draft multiple:maxnum draft 10~58times,back area draft :1.06~1.52times
11.cradle:changde cradle :YJ2-142C.
12.roller:dongjie 3lines new type roller Φ27XΦ27XΦ27(front,back roller Equal helical,middle roller knurled)

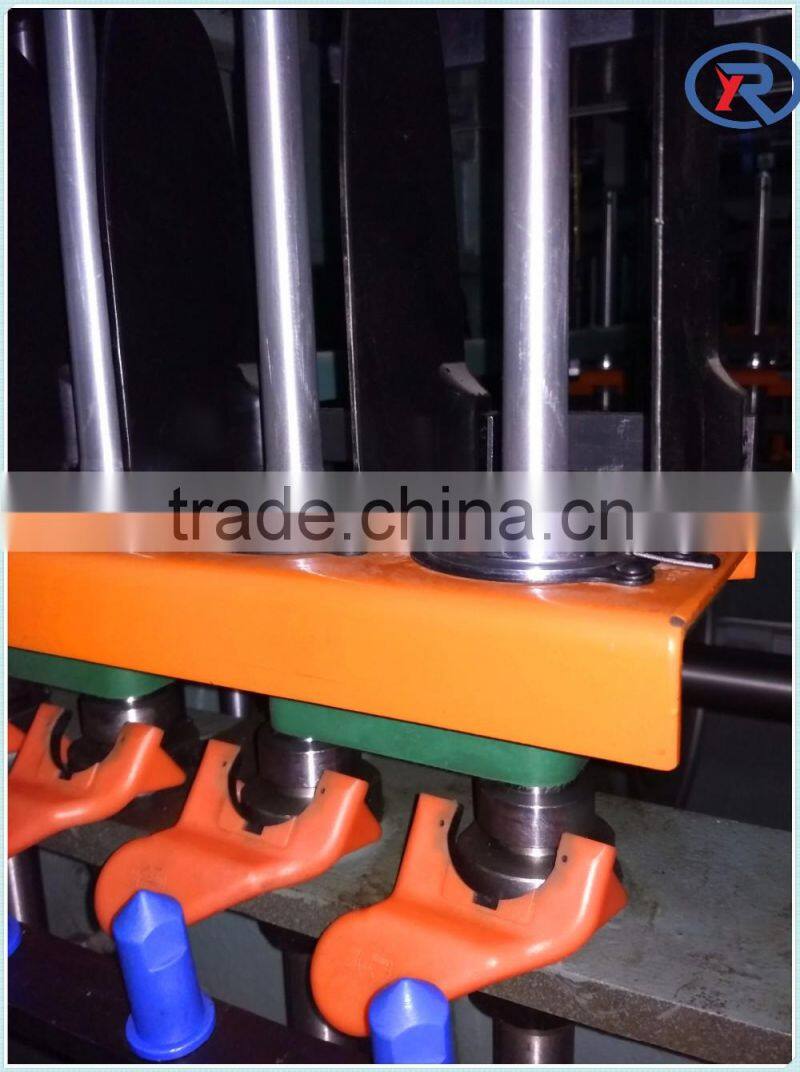

13.Spindles:Tongxin spindlesTXD6111FA(1)-dia 20.5 spindle plate(same as texparts)
14.ring: changzhou hangyue brand PG1-4254with Galvanized
15.Roller bearing:renben brand
16.Top roller bearing:Rudong special stell fty
17.Main roller bearing:FAG Brand from Germany.
18.pneumatic element: importd
electric control:Imported photoelectric control
20.Grasp the pipe system:imported type,no hurt to yarn.
21.Spindles No:6spindles
22.Roving frame creel & hanger bobbin:jiangyin chengxin creel & DD6(KHK)23.hanger bobbin, Top and bottom pin Guague (mm)2.5,3,3.5,4
24.Beheaded cotton absorption model,Flute pipe type separete, separete suction motor, fan dia502mm,fan Air Volume about 3600m3/h. Collective exhaust underground.
25.Electric controlDelta PLC
26.Servo control:imported servo control system
o customers. We promise that we'll be responsible all the way to the end once our services begin.
Basic Information
Your Satisfaction Is Our Unremitting Pursuit
Payment and service
- Normal payment : T/T ,L/C, Wester union.
- Normal package : plastic and cartons
- Service 1 : provide FOB , CFR , CIF price and the CBM for your shipment.
- Service 2: Provide you design for your warehouse and other logistic equipment.
- Sercive 3 : Provide free sample parts and factory open for your visiting.
- Sercive 4 : Provide aftersale service, listen to your feedback
- Service 5 : SGS/BV/CNCA/CIQ /CO applyment for customer
Good Quality + Factory Price + Quick Response + Reliable Service, is what we aretrying best to offer
ADD: RM.1116-1117,Yihong Building,No.298 North Zhonghua Street,Shijiazhuang,China.
TEL:+86-311-85021376;+8613932118373
FAX:+86-311-85021373
SKYPE:kenword86
Welcome to contact us for detailed consultation.Thank you!
