Top quality color sorter machine for coffee sorting
- 1200 Unit / Units per Month
- Shanghai China
- T/T D/P D/A Credit Card
Product Details
Type: | Farm Equipment | Use: | Grain | Certification: | CE ISO |
Place of Origin: | Anhui, China | Brand Name: | WEBEST | Model Number: | 6SXZ-256 |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
1. Image processing system and algorithm
DSP+FPGA international leading processing technology, multi-modes complex algorithm combining color and space, providing “color sorting + shape selecting” function for different materials, free setting of multiple modes, arbitrary selection of thousands of materials.
2. Camera image acquisition system
Imported high precision camera lens, guarantee the accuracy of the image is clear.
Imported high-precision 2048-pixel high-speed linear CCD for high resolution identification and high speed color sorting.
3. Unique self-ejecting nozzle and valve drive mode
Applying specialized high speed air valve with high action response frequency, low power consumption and longer service life.
Reducing air consumption with faster response speed, more accurate striking, small carryover and large output.
4. Feeding system
Use the advanced feed detection system, Assure the uniformity of material flow.
5. Chute
Different slide ways are selected for different color sorting materials, to ensure that materials slide down more uniformly and the carryover is reduced.
6. Light source system
Leading LED optical design system, a variety of light sources can be selected to suit the different materials.
Solve the problems like high temperature, large loss, and short life etc, caused by long-term use of light source, to ensure that LED light source is durable under constant temperature.
CCD color sorter technical Parameter
Model | Z2-128 | Z3-192 | Z4-256 | Z5-320 |
Output(t/h) | 0.5-2 | 1.0-4.0 | 1.5-5.0 | 2.0-6.0 |
Sorting Accuarcy(%) | ≥99 | ≥99 | ≥99 | ≥99 |
Carryover Rate (Bad:Good) | ≥8:1 | ≥8:1 | ≥8:1 | ≥8:1 |
Wegiht(kg) | 600 | 700 | 800 | 900 |
Resolution(mm²) | 0.04 | 0.04 | 0.04 | 0.04 |
Power(kw) | 1.5 | 2 | 2.5 | 3 |
DimensionLxWxH(mmxmmxmm) | 1370x1650x2010 | 1684x1650x2010 | 1998x1650x2010 | 2312x1650x2010 |
Power Supply(V/Hz) | 220/50(110/60) | 220/50(110/60) | 220/50(110/60) | 220/50(110/60) |
Model | Z6-384 | Z7-448 | Z10-640 | Z12-768 |
Output(t/h) | 2.5-7.0 | 3.0-8.0 | 4.5-11 | 6-13 |
Sorting Accuarcy(%) | ≥99 | ≥99 | ≥99 | ≥99 |
Carryover Rate (Bad:Good) | ≥8:1 | ≥8:1 | ≥8:1 | ≥8:1 |
Weght(kg) | 1000 | 1100 | 1400 | 1600 |
Resolution(mm²) | 0.04 | 0.04 | 0.04 | 0.04 |
Power(kw) | 4 | 4.5 | 6 | 8 |
DimensionLxWxH(mmxmmxmm) | 2626x1650x2010 | 2930x1650x2010 | 2930x1650x2024 | 2930x1650x2024 |
Power Supply(V/Hz) | 220/50(110/60) | 220/50(110/60) | 220/50(110/60) | 220/50(110/60) |
1.The above data is based on the 3% contamination, and real output depends on the material and its contamination.
2.If products update, no further notice. Please refer to the real machine.

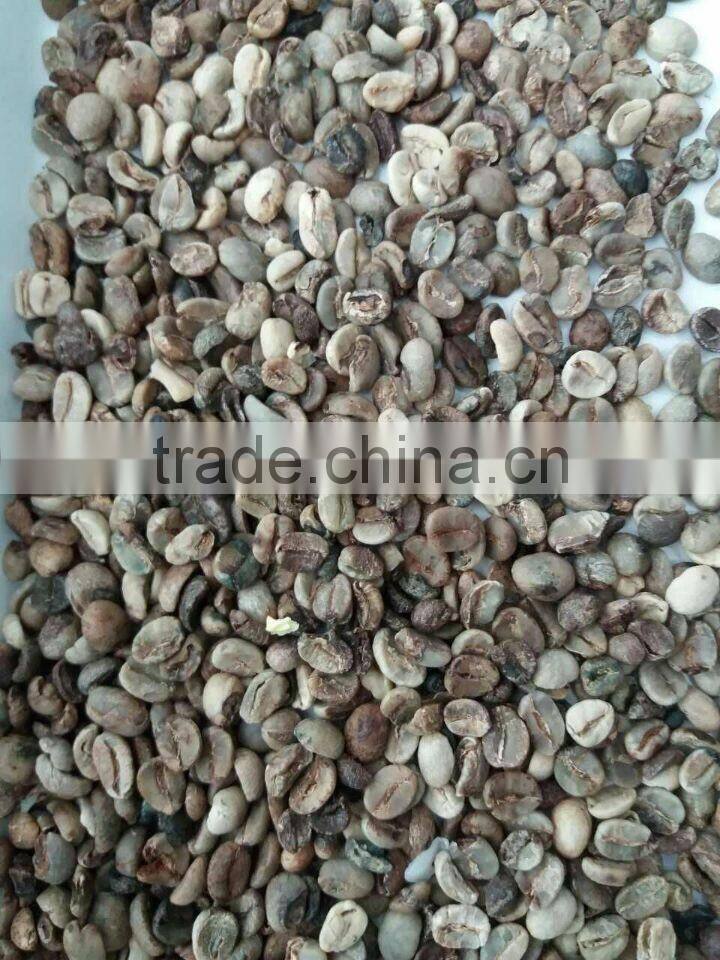

Coffee color sorting example
About US
More related color sorter
1. How about engineers service oversea?
Engineers available to service machinery overseas.
2. How to use the machine?
We will supply customer the installation catalog or video online.
We will ask our engineer to teach you, how to use when he go to your country to debug the machine.
3. How about the sample machines for testing?
Sample sending for testing is welcomed.
Or you send these three photos,the raw material,good material (which is you want) ,bad material (which is you want to
discard). we send our video to you.
4. How about the guarantee period?
One year.
5. Will you accept L/C as payment?
L/C ,T/T is OK .
Alibaba Trade Assurance is your best choice.
6.Do you have any other spare parts for the customer?
Yes,we will supply you some spare parts .
7.Which machine will work together with our color sorter which you can supply?
Air compressor ,Air tank ,Air filters,Air dryer , light sources, cleaning brushes, etc
Multipe modes are produced to meet your specific individual requirements
