5XW-5 Wheat Mazie Seeds Indented Cylinder Cleaning Machine

5XW-5 Wheat Mazie Seeds indented cylinder cleaning machine

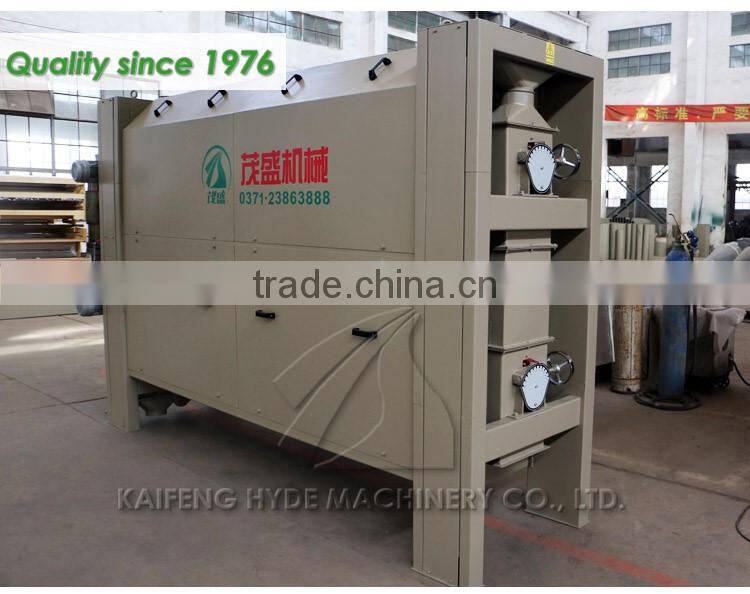

5XW-5 Seed Indented Cylinder Separator

1) Function: gentle grading of all granular materials by length
2) Capacity: 5t/h (based on wheat with 3% impurities).

Indented cylinders combine long and short grain separation in one system, separating products by length. They are usually used after the pre-cleaning machine or air screen cleaner. The speed of the cylinders and the flow rate can be adjusted for different processing materials to achieve a maximum quality of product separation.

1. Application of 5XW-5 Indented Cylinder Seed Separator

Hyde 5XW-5 Seed Indented Cylinder are used for sorting and separating granular and free flowing products such as wheat, paddy, barley, maize, fine seeds, and sticks from sunflower or sugar beet, plastic particles etc.

Hyde 5XW-5 Indented Cylinder in 5t/h Paddy Rice Cleaning Plant

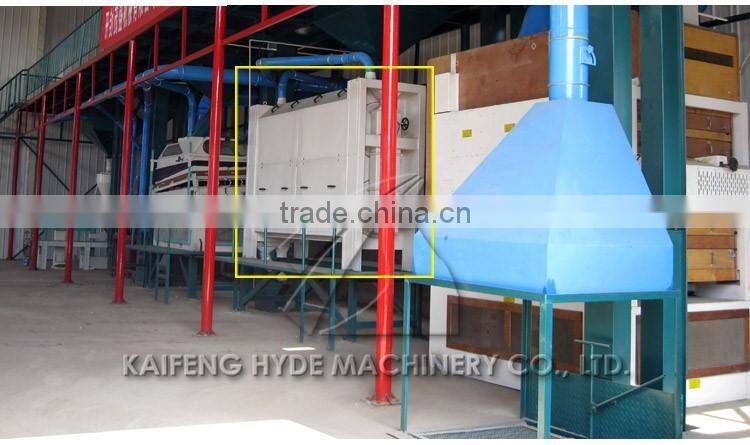

Hyde 5XW-5 Indented Cylinder in Wheat Maize Plant

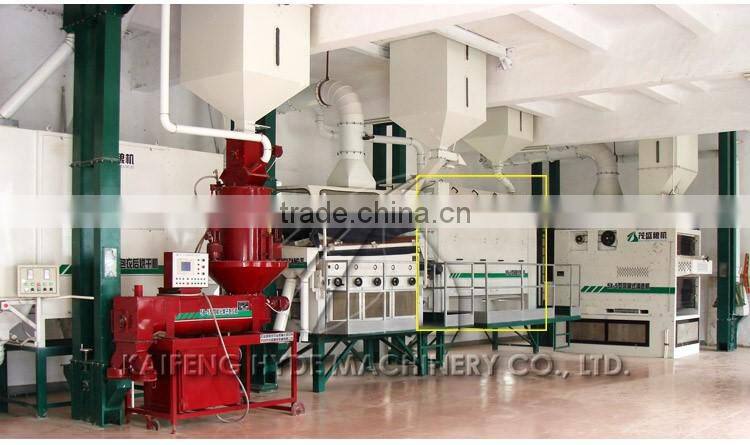

HYDE 5XW-5 Indented Cylinder Seed Separator in Wheat Maize Rice and Sugerbeet Seed Cleaning Plant

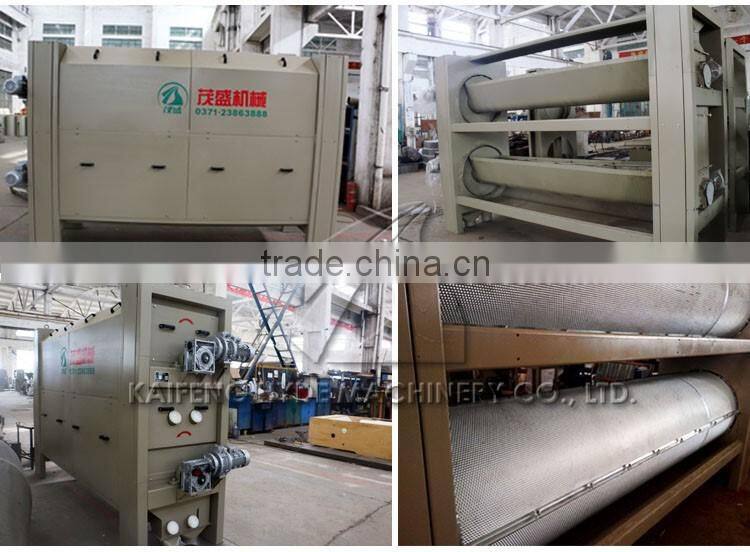

2. Construction of 5XW-5 Indented Cylinder Seed Separator

Hyde 5XW-5 indented cylinder machine is equipped with one indented cylinder for short grain separation and one for long grain separation (for series mode). Inside each cylinder there is the trough with a auger conveyor. Each cylinder is driven by a gear motor.

3. Working Principle of 5XW-5 Seed Separator Indented Cylinder

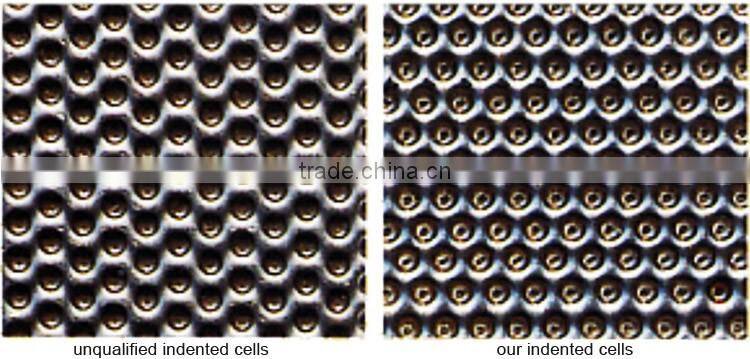

Working part of indented cylinder is the rotating cylinders whose cover is provided with deep drawn spherical shaped pockets (indented cells) for the most precise length separation.

Grains which sizes are smaller than pockets will settle in the indented pockets, and will be lifted with the rotation of cylinder, after a certain distance (adjustable to suit) will fall out of the pockets under gravity into the trough, then will be discharged to the product outlet by auger conveyor. Impurities which are longer than the indent diameter will remain on the inside surface of cylinder and slide out to corresponding outlet of the cylinder.

4. Advantages of 5XW-5 Seed Indented Cylinder Separator

Gentle cleaning and grading of seeds and grains.
Bolted robust steel structure and compact size.
Full closed cylinder to reduce the dust.
Cylinders can be series or parallel as per requirement, driven by individual motor.
Quick changeable indented cover, easy to remove the accumulation.
Easy and adjustable trough positioning.
Dust aspiration outlet to connect with dust collector.

5. Technical Specification of 5XW-5 Seed Separator Indented Cylinder

 Notes:

1. Machine can be converted to different cleaning programs, cylinder cover shall be changed accordingly.
2. Above technical data can vary due to continued development, or different machine configurations.

Our main products are:

Seed cleaners, seed graders, seed gravity separators, indented cylinder, de-awner, destoner, cyclone, seed treater, dryers, elevators and conveyors, auto-bagging scales, harvesters for seeds, grains, cereals, beans, forestry seeds, crops and food, ranging from customized systems to complete turnkey plants.

Seed cleaning machine series:

     Air Screen Seed Cleaner                          Seed Gravity Separator                    Indented Cylinder Separator

          Seed Treater                              Auto-Bagging Scale                                    Portable Combine Cleaner

Kaifeng Hyde Machinery is a branch company of Henan Maosheng Group, which is formerly known as Kaifeng 2nd Grain and Oil Machinery and has specialized in engineering and equipment manufacturing for grain handling, storage, flour milling and seed processing since 1976.

With 40 years' growth, Maosheng Group company has become one of CHINA TOP 10 Grain Processing Machinery Manufacturer. In addition, Maosheng is the host of CHINA National Grain Processing Technology Research Center.

Kaifeng Hyde Machinery, separated in 2002 as a branch company, mainly manufactures a full range of advanced grain and seed processing machines and equipment.

1. Maosheng Group Factory and Workshop

2. Hyde Machinery Factory and Workshop

3. Customer Visits and Oversea Cooperations

To better serve our clients, Maosheng Group not only imports high-end manufacturing facility to improve product quality and manufacturing productivity, but also keeps on looking for international communication and cooperation. We successfully signed agreement with Italy for machine development in 2009 and established joint venture with WESTRUP Denmark in 2013.

Check below pictures for customers from Australia, Canada, Egypt, Indonesia, Iran, Israel, Russia, South Korea, Sudan, UAE, etc.

4. Certificates and Honors

With decades of our effort, our machines have obtained China Top 10, China Famous Brand and enjoyed high reputation in domestic and oversea markets.
