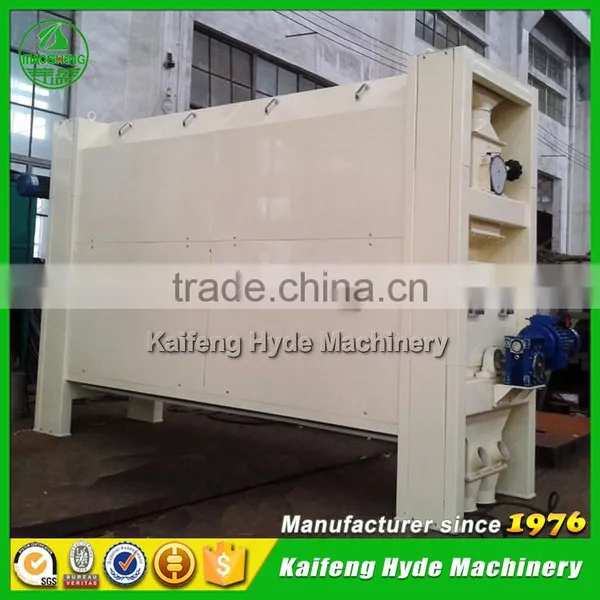

5XW 5T Wheat Rice Seed Indented Cylinder Separator

5XW 5T Wheat Rice Seed Indented Cylinder Separator

5XW-5 Seed Indented Cylinder Separator

1) Function: gentle grading of all granular materials by length
2) Capacity: 5t/h (based on wheat with 3% impurities).

Indented cylinders combine long and short grain separation in one system, separating products by length. They are usually used after the pre-cleaning machine or air screen cleaner. The speed of the cylinders and the flow rate can be adjusted for different processing materials to achieve a maximum quality of product separation.

1. Application of 5XW-5 Indented Cylinder Seed Separator

Hyde 5XW-5 Seed Indented Cylinder are used for sorting and separating granular and free flowing products such as wheat, paddy, barley, maize, fine seeds, and sticks from sunflower or sugar beet, plastic particles etc.

Hyde 5XW-5 Indented Cylinder in 5t/h Paddy Rice Cleaning Plant

Hyde 5XW-5 Indented Cylinder in Wheat Maize Plant

HYDE 5XW-5 Indented Cylinder Seed Separator in Wheat Maize Rice and Sugerbeet Seed Cleaning Plant

2. Construction of 5XW-5 Indented Cylinder Seed Separator

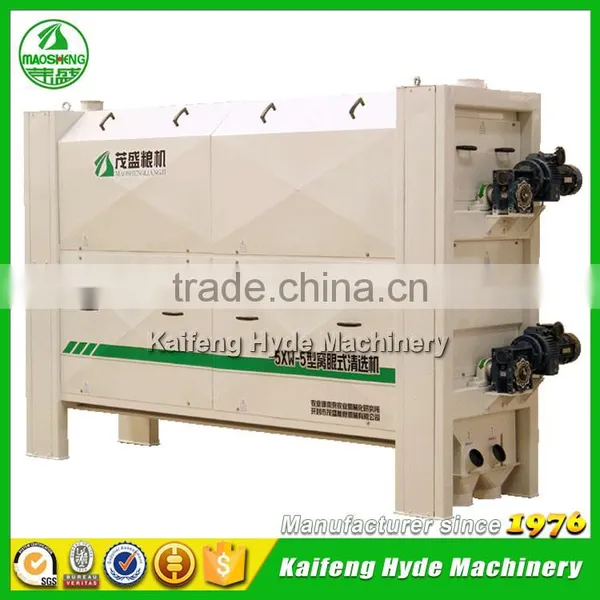

Hyde 5XW-5 indented cylinder machine is equipped with one indented cylinder for short grain separation and one for long grain separation (for series mode). Inside each cylinder there is the trough with a auger conveyor. Each cylinder is driven by a gear motor.

3. Working Principle of 5XW-5 Seed Separator Indented Cylinder

Working part of indented cylinder is the rotating cylinders whose cover is provided with deep drawn spherical shaped pockets (indented cells) for the most precise length separation.

Grains which sizes are smaller than pockets will settle in the indented pockets, and will be lifted with the rotation of cylinder, after a certain distance (adjustable to suit) will fall out of the pockets under gravity into the trough, then will be discharged to the product outlet by auger conveyor. Impurities which are longer than the indent diameter will remain on the inside surface of cylinder and slide out to corresponding outlet of the cylinder.

4. Advantages of 5XW-5 Seed Indented Cylinder Separator

Gentle cleaning and grading of seeds and grains.
Bolted robust steel structure and compact size.
Full closed cylinder to reduce the dust.
Cylinders can be series or parallel as per requirement, driven by individual motor.
Quick changeable indented cover, easy to remove the accumulation.
Easy and adjustable trough positioning.
Dust aspiration outlet to connect with dust collector.

5. Technical Specification of 5XW-5 Seed Separator Indented Cylinder

 Notes:

1. Machine can be converted to different cleaning programs, cylinder cover shall be changed accordingly.
2. Above technical data can vary due to continued development, or different machine configurations.
