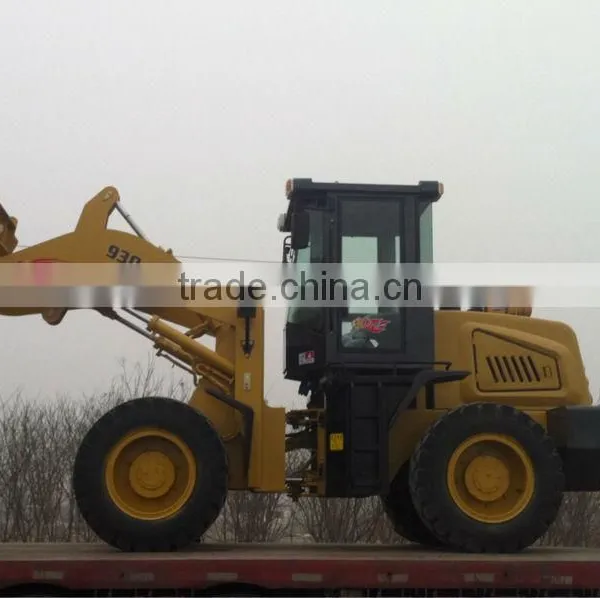

Mine use KD ZL - 930 small wheel loader
- 20000 Set / Sets per Month
- Qingdao port
- T/T D/P D/A
Product Details
Condition: | New | Brand Name: | KAIDA | Model Number: | KD-ZL-930 |
Place of Origin: | Shandong, China | Type: | Mini Loader | Moving Type: | Wheel Loader |
Dimension(Long * Breadth * High): | 5450*1910*3000 | Rated Load: | 2.5T | Certification: | ISO9001 |
Product Description
Specifications
Leading professional design and manufactureEasy operation and high efficiency
Long servicing life
High quality ,low price
Kaida wheel loader is very popualr for high quality and best price all over the world. Now we have more than 200 dealer in China mainland. We also have many dealers oversea, such as, Iran, Saudi Arabia, India, the Philippines, Brazil, etc. Please visit our website about more information. We will be looking forward to your kind inquiry.
Specification of Kaida-ZL-930 is listed as following.
1.0 Engine Details
(1) Model: 4108 turbocharged
(2) Engine type: In-line arrangement, water-cooled,
(3) Rated Power:80kw
(4) Rated Speed: 2200 r/min (rpm)
2.0 Steering System
(1) Cycloid full hydraulic steering system
3.0 Bucket
(1) Bucket Capacity: 1.5m3
(2) Rated Load: 2500kg
4.0 Overall Dimensions
(1) Overall Length : 5450mm
(2) Overall Height:3000mm
(3) Overall Width: 1910mm
5.0 Operating Specifications
(1) Drive Means: Four-wheel drive
(2) Min Turning Radius: 5160mm
(3) Driving System: mechanical
(4) Dumping Height: 3500mm
(5) Time of raise:5.6sec.
(6) Hydraulic cycle time: 13.5second.
6.0 Brake System
(1) Service Brake: Four Wheel Hydraulic brake
7.0 Tyre Type:16/70-24
Using 16/70-24 ultra-wide tyres to increase the stability of the whole machine and the service life of tyre;
1 .
Length(with bucket on ground)
7200(mm)
2.
Width(to outside of wheels)
2000(mm)
3
Height(To the top of the cab)
3010(mm)
4
Wheel base
2760(mm)
5
Tread
2600(mm)
Main Technical Specification
1
Rated load
2500(Kg)
2
Operating weight
5500KG
3
Rated bucket capacity
1.5(m³)
4
Bucket type
Heavy-duty bolt teeth
5
Max. breakout force
117kN
6
Max. dump clearance
3500(mm)
7
Min. turning radius
5700mm
8
Transmission
Hydraulic converter
9
Max. traveling speed(Km/h)
20km/h
Diesel engine
1
Model
4108 turbocharged (YTO,CHINA)
2
Type
In-line arrangement. Water cooling
3
Rated output
80(kW)
4
Inter-bore of cylinder/stroke
105 (mm)
5
Rated speed
2300(r/min)
6
Max. Torque
860(N.M)
7
Starting type
Electric
8
Min. specific fuel consumption
162(g/Kw·h)
Transmission System
I. Torque Converter
1
Model
ZL-930
2
Type
Full-powershaft, countershaft type
3
Cooling type
Pressure oil circulating
II. Transmission case
1
Model
KaiDa
2
Type
Power shift, spur gear constantly in mesh
3
Gear shift position
4 Forward and 2 reverse gears
III. Axle and Tire
1
Axle
China famous brand
2
Main reducer pattern
Arc taper gear, moderation of first grade
3
Pattern of wheel side moderation
Single stage planetary
4
Size of tire
16/70-24
Hydraulic system
1
Implement pump
CBGV2100
2
Displacement
100ml/r
3
System working pressure
27.5MPa
4
Distribution device model
DF25.2C
Brake system
1
Service brake
Air assisted oil on four wheel
2
Parking brake
Soft axle control, outside bunch drum type
Steering system
1
Pattern
Articulated and hydraulic steering
2
Min turning radius(outside of bucket)
5700mm
3
Max turning angle
37+/-1
Shipment: 1 unit shipped in 1x40HC.
Rated Load Capacity(T) | 2.5 |
Rated Bucket Capacity(m3) | 1.5 |
overall weight(kg) | 6000 |
engine model | 4108turbocharged |
rated power(kw) | 80 |
Max. Dump Height(mm) | 3500 |
Discharging Distance(mm) | 1030 |
Lifting Time (s) | 5.6 |
Lowering Time(s) | 3.4 |
Dumping Time(s) | 1 |
Min. Turning Radius(mm) | 5160 |
Rated Speed(r/min) | 2200 |
Overall Dimension(mm) | 5450*1910*3000 |
Performance feature:
1,Good cost performance: Adopting full hydraulic transmission, it can bring the power of engine into full play amply. Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission. It enables the loader working efficiency and easy maintenance
2,High productivity: Perfectly designed to enable the machine have super lifting force and automatic leveling at high position.
3,Good capability in climbing the slope: 4-wheel driven, strong driving power.
4,Operation flexible: Center-point frame articulated and small turning radius makes it convenient to work in confined places.
5,Safe and reliable: Single-line air-assisted brake system.
6,Going-through capability: The rear axle can swing around the center hanger frame, improved the going-through capability of the whole machine.
7,Operation comfort: Continuously variable transmission, full hydraulic steering system steady and reliable
Excavation force is large,high-positiong unloading material is put flat automatically,acruation time of working device is shortened,and the working performance of the complete machine is increased.
Pliers disc braking with high braking efficiency.
Transmission parts arranged separately,fuel tank has active link functionwhich is convenient for maintenance.
Optional dongfanghong 4108 turbocharged diesel engine.
