Specifications
1.Chinese famous brand2. Leading professional design and manufacture;
3.Long servicing life;
4.High quality and low price

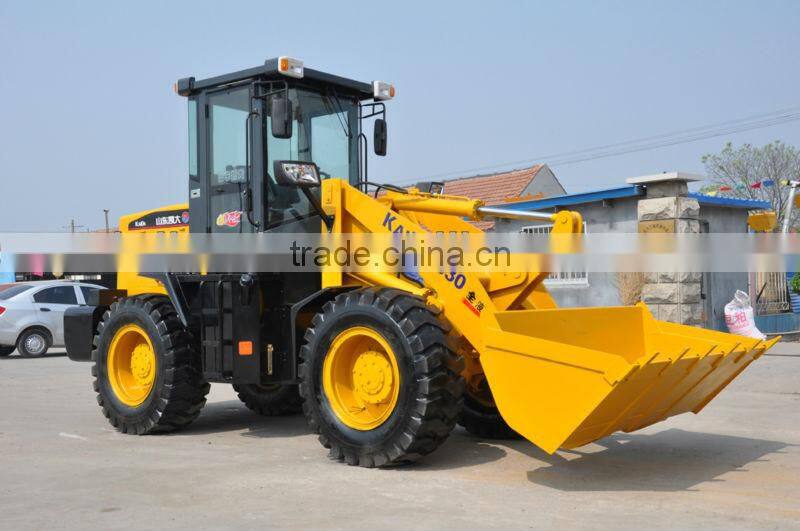

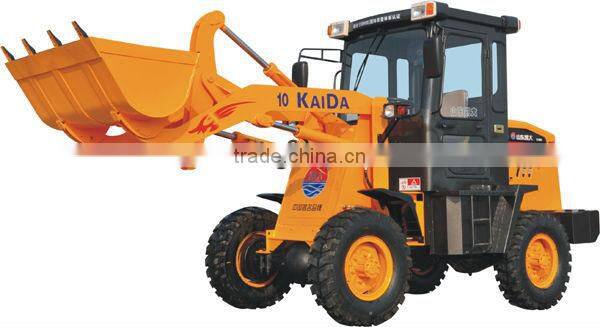

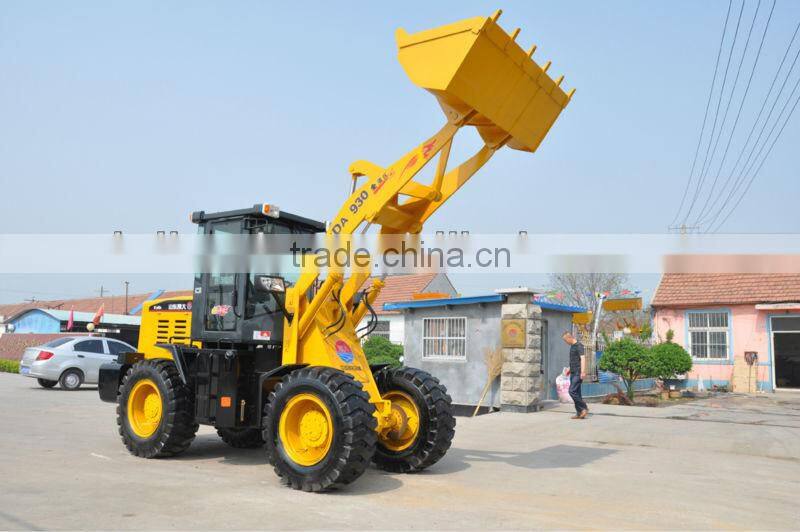

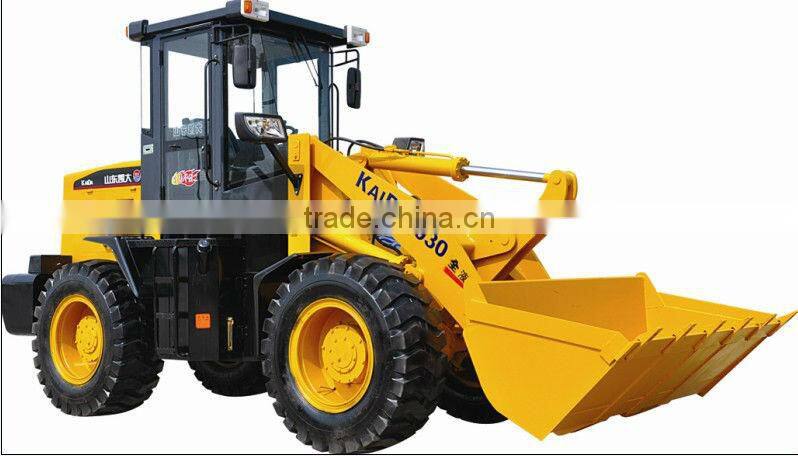

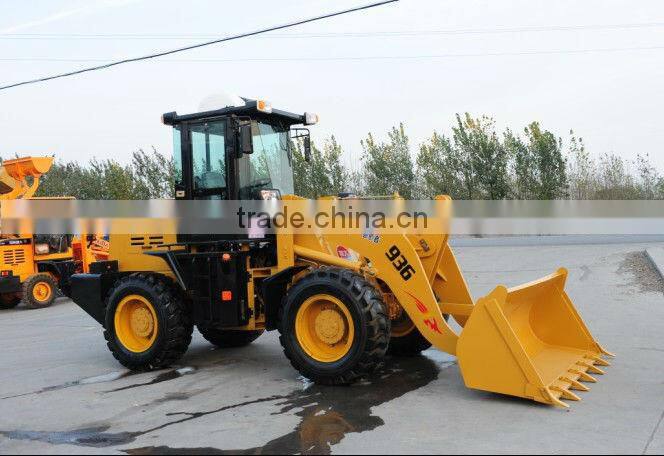

Mini Hydraulic Four-wheel Drive Loader
Kaida wheel loader is very popualr for high quality and best price all over the world. Now we have more than 200 dealer in China mainland. We also have many dealers oversea, such as, Iran, Saudi Arabia, India, the Philippines, Brazil, etc. Please visit our website about more information. We will be looking forward to your kind inquiry.
Specification of Kaida-ZL-930is listed as following.
1.0 Engine Details
(1) Model: 4108(Turbocharged)
(2) Engine type: In-line arrangement, water-cooled,
(3) Rated Power:80kw
(4) Rated Speed: 2200 r/min (rpm)
2.0 Steering System
(1) Cycloid full hydraulic steering system
3.0 Bucket
(1) Bucket Capacity: 1.4m3
(2) Rated Load: 2000kg
4.0 Operating Specifications
(1) Drive Means: Four-wheel drive
(2) Min Turning Radius: 5160mm
(3) Driving System: mechanical
(4) Dumping Height: 3500mm
(5) Time of raise:5.6sec.
(6) Hydraulic cycle time: 13.5second.
5.0 Brake System
(1) Service Brake: Four Wheel Hydraulic brake
6.0 Tyre Type:16/70-24
| Rated Load Capacity(T) | 2.5 |
| Rated Bucket Capacity(m3) | 1.6 |
| overall weight(kg) | 6000 |
| engine model | 4108turbocharged |
| rated power(kw) | 80 |
| Max. Dump Height(mm) | 3500 |
| Discharging Distance(mm) | 1030 |
| Lifting Time (s) | 5.6 |
| Lowering Time(s) | 3.4 |
| Dumping Time(s) | 1 |
| Min. Turning Radius(mm) | 5160 |
| Rated Speed(r/min) | 2200 |
| Overall Dimension(mm) | 5450*1910*3000 |
Excavation force is large,high-positiong unloading material is put flat automatically,acruation time of working device is shortened,and the working performance of the complete machine is increased.
Pliers disc braking with high braking efficiency.
Transmission parts arranged separately,fuel tank has active link functionwhich is convenient for maintenance.
Optional dongfanghong 4108 turbocharged diesel engine.
Send Inquiry to This Supplier
