Specification of Kaida-ZL-926 lengthen is listed as following:
1. Engine Details

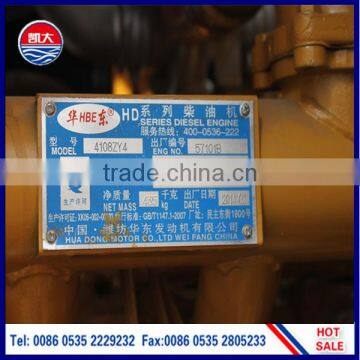

(1) Model: 4102
(2) Engine type: In-line arrangement, water-cooled,
(3) Rated Power:47kw
(4) Rated Speed: 2200 r/min (rpm)
2. Steering System
(1) Cycloid full hydraulic steering system
3. Operating Specifications
(1) Drive Means: Four-wheel drive
(2) Min Turning Radius: 4.5mm
(3) Driving System: mechanical
4. Brake System
(1) Service Brake: Four Wheel Hydraulic brake
5. Tyre Type:20.5-16
| Rated Load Capacity(T) | 2T |
| Rated Bucket Capacity(m3) | 1 |
| Steering Type | Hydraulic steering |
| engine model | 4102 |
| rated power(kw) | 47 |
| Max. Dump Height(mm) | 4500 |
| Discharging Distance(mm) | 980 |
| Lifting Time (s) | 5.9 |
| Overall Dimension(mm) | 5450*1850*2750 |
| Dumping Time(s) | 1.1 |
| Min. Turning Radius(mm) | 4500 |
| Rated Speed(r/min) | 2200 |
It has strong breakout force,and can automatically flat the high discharging; and its operation is efficient.
Pliers Disc braking with high braking efficiency.
Use the best known brand of torque converters in China,split type four after rour mechanical gearbox, speed, convenient repair.
Transmission parts arranged separately, fuel tank has active link function which is convenient for maintenance.
Turning radius in the middle of the arrangement of the hinge point is small as it's flexible and fast, it's suitable for narrow space work.
