Specifications
Rated Load Capacity 1.8TRated Buck Capacity 0.7m3
Engine Power 44Kw
Overall Dimension 5250*1700*2700

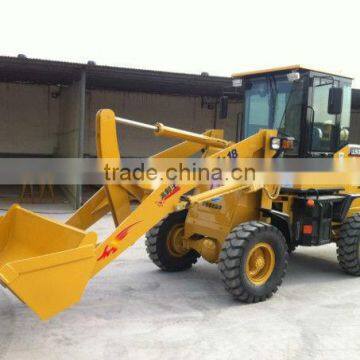

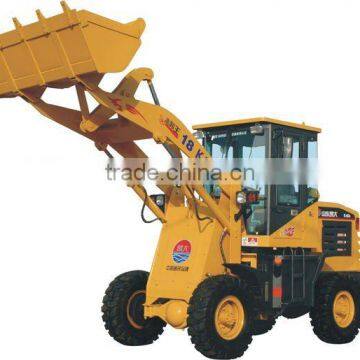

KD Wheel Loader ZL-18 Mini Wheel Loader
Specification:
1.overall weight(kg) |
3200kg |
2.Overall Dimension(mm) |
5250×1600×2600mm |
3.Rated bucket capacity(m3) |
0.7 |
4.Rated load(kg) |
1800kg |
5.dump height (mm) |
3200 |
6.Dump distance |
850 |
7.Max. Tractive Force |
77KN |
8.1Brand and modle |
4100 |
9.Type1 |
direct injection, horizontal |
10.1Rated power(kw) |
44kw |
11.Rated speed(r/min) |
2200 |
12. Mode |
hydraulic torque converter |
13.Max. Speed |
20 km/h |
14.Model of Axle |
Hub reduction Axle |
15.Mode |
4-wheel Drive |
16Type23 |
Articulated hydraulic steering |
17.Max. turning angle |
30±1° |
18.Min turning radius(mm) |
4500 |
19.Standard tire |
14/90-16 |
(1) It has strong and excellent power, and it’s efficient and energy saving
(2) With the split-type front four and back four mechanical gear-type gearbox, its speed is fast and it’s easy for maintenance.
(3) It has reasonable arrangement and good driving and working stability
(4) Layout of its driving mediums is separated, and its fuel tank has the active link function, and it’s easy for maintenance.
(5) It has single lever operation way, so operation is comfort and convenient.
