Specifications
1.Rated load capacity 1.6T2.Rated bucket capacity 0.6m3
3.Overall dimension 4600*1600*2650mm
4.Engine power 37kw

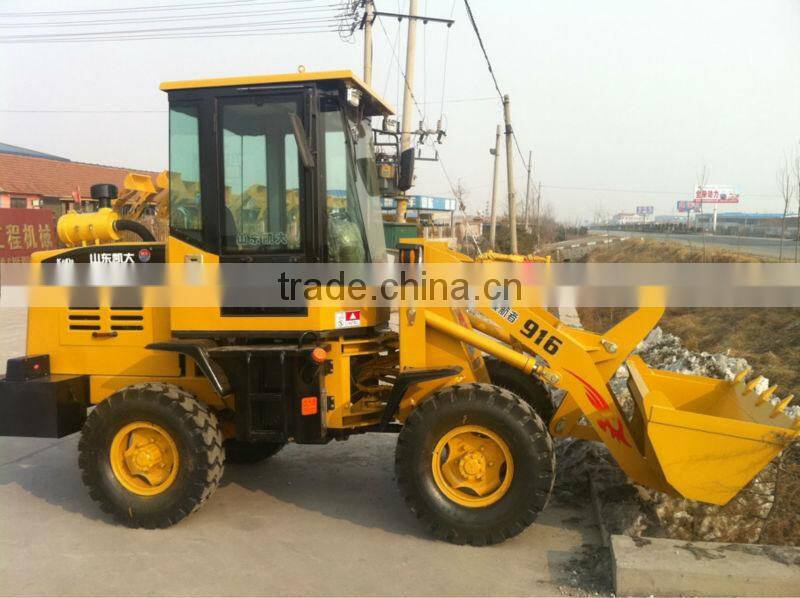

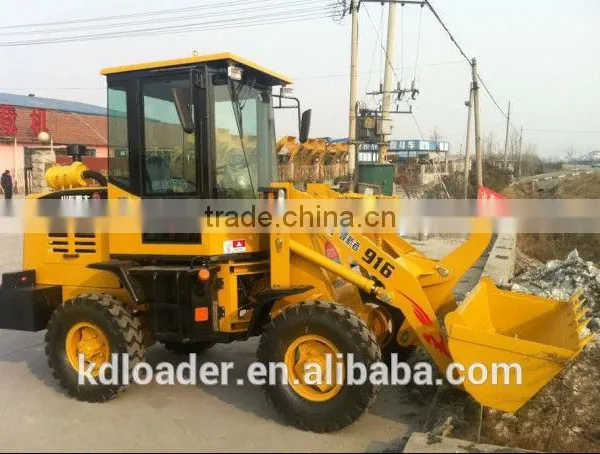

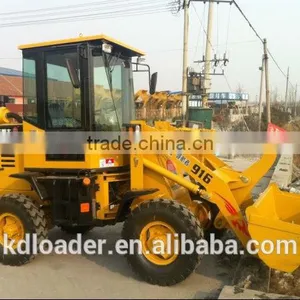

Engineering Machinery Wheel Loader zl916
Kaida wheel loader is very popualr for high quality and best price all over the world. Now we have more than 200 dealer in China mainland. We also have many dealers oversea, such as, Iran, Saudi Arabia, India, the Philippines, Brazil, etc. Please visit our website about more information. We will be looking forward to your kind inquiry.
| Rated Load Capacity(T) | 1.6 |
| Max. Bucket Capacity(m³) | 0.6 |
| Max. Dump Height(mm) | 2900 |
| Max. Breakout force (kn) | 48 |
| Bucket Width (mm) | 1600 |
| Wheel Base (mm) | 1750 |
| Wheel Track (mm) | 1500 |
| Min. ground clearance (mm) | 280 |
| Overall Dimension(mm) | 4600×1600×2650 |
| Total Weight(kg) | 3200 |
| Tyre Type | 1200-16 |
| Engine Model | 490 |
| Rated power (kw) | 37 |
| With Luxury cab | |
| Product advantage: | ||||||||
| 1.The shovel loader lays flat automatically. It uses computer optimized design with high working efficienc | ||||||||
| 2.New closed cab, Grammer seat, air condition can be equipped, operating environment is more comfortable. | ||||||||
| 3.The chassis uses horizontal shelf. | ||||||||
| 4.It uses well-known flat-four engine, which is powerful, reliable, and energy-saving. | ||||||||
| 5.It can also add optional items like pallet fort grapple, tube grasp fork, corn fork, rock hopper, bigger peck, snow-push plate, fork and so on, so as to satisfy different demands. | ||||||||
Specification of Kaida-ZL-16 is listed as following.
1.0 Engine Details
(1) Model: 490
(2) Engine type: In-line arrangement, water-cooled,
(3) Rated Power:37kw
(4) Rated Speed: 2200 r/min (rpm)
2.0 Steering System
(1) Cycloid full hydraulic steering system
3.0 Bucket
(1) Bucket Capacity: 0.6m3
(2) Rated Load: 1600kg
4.0 Overall Dimensions
(1) Overall Length : 4600mm
(2) Overall Height:1600mm
(3) Overall Width: 2600mm
5.0 Operating Specifications
(1) Drive Means: Four-wheel drive
(2) Min Turning Radius: 5160mm
(3) Driving System: mechanical
(4) Dumping Height: 2900mm
(5) Time of raise:3.0sec.
(6) Hydraulic cycle time: 13.5second.
6.0 Brake System
(1) Service Brake: Four Wheel Hydraulic brake
7.0 Tyre Type:1200-16
Shipment: 2 units shipped in 1x40HC.
============================================================================================================================================
