supply cored wire machine
- 20 Set / Sets per Month
- Qingdao
- T/T
Product Details
Place of Origin: | Henan, China | Brand Name: | Hengzhong | Model Number: | GBX |
Condition: | New | After-sales Service Provided: | No overseas service provided |
Product Description
Specifications
cored wire machine:a.Good after-sale service
b.MNQ:1set
c.Can provide full equipment from producing to finished product

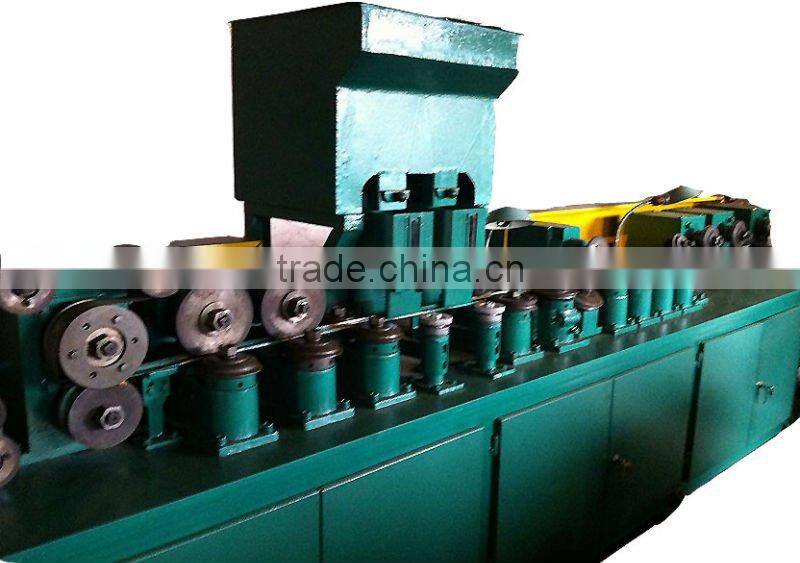

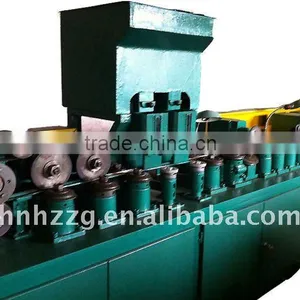

cored wire machine:
A, Cored wire machine (main equipment)
It consists of mainframe, recoiler, operating floor.
1, mainframe:
Motor drags dynamic distributing shaft by speed reduce, distribute motive power to each vergens bevel gear case. Output shaft of bevel gear case pass through cycle chain, transmission shaft to make the roll shaft rotated, it makes the steel and alloy powder turn into qualified cored wire.
2, recoiler:
Motor drives the wire spin round the cycle, meanwhile, main transmission shaft pass through change gear, reversing gear make the wire spool rotate in positive and opposite directions and sway, achieve uniform discharge. There is speed structure inside the recoiler, the wire spool can move quickly if press the button in time of reversing gear is free.
3, operation floor:
It controls the electric part of the machine, such as start, operate, control, display, and stop.
4, technical parameters sheet:
Item | GBX-3 | GBX-4 | GBX-5 |
Packing speed | 10-15m/min | 16-21m/min | 18-50m/min |
motor | 8.5kw | 9.0kw | 13kw |
power | 8.5kwh | 9.0kwh | 13kwh |
use | Ca Si C Ti | Ca Si C Ti | Ca Si C Ti |
efficiency | 1-2tons/time | 2-4tons/time | 5-6tons/time |
Packing specification | 13, 16 | 10, 13, 16 | 16, 8, 20, 22, 25 and rectangular wire |
B, bilateral responsibility
1, Seller provide machine with one set roll, installation disk.
2, Buyer is responsible for all the installation and installation material
3, Seller is responsible for all the cost from factory to Qingdao port
A, Cored wire machine (main equipment)
It consists of mainframe, recoiler, operating floor.
1, mainframe:
Motor drags dynamic distributing shaft by speed reduce, distribute motive power to each vergens bevel gear case. Output shaft of bevel gear case pass through cycle chain, transmission shaft to make the roll shaft rotated, it makes the steel and alloy powder turn into qualified cored wire.
2, recoiler:
Motor drives the wire spin round the cycle, meanwhile, main transmission shaft pass through change gear, reversing gear make the wire spool rotate in positive and opposite directions and sway, achieve uniform discharge. There is speed structure inside the recoiler, the wire spool can move quickly if press the button in time of reversing gear is free.
3, operation floor:
It controls the electric part of the machine, such as start, operate, control, display, and stop.
4, technical parameters:
Max packaging speed:10-50m/min
Speed adjustment range: 1-50m/min
Wire specification: Φ9—Φ22
Mode of paying-off: inside tap
Wire coil specification: 600×1300×600(I.D×O.D×width)
Dimension: length×width×height (mm)
Mainframe: 4600×780×1580
Recoiler: 3000×1270×1500
Electric closet: 1050×725×1000
B, bilateral responsibility
1, Seller provide machine with one set roll, installation disk.
2, Buyer is responsible for all the installation and installation material
3, Seller is responsible for all the cost from factory to Qingdao port
