Specifications
XINGUANG high quality chute feederflexible design and easy adjustment
exclusive vibration technology
less power consumption

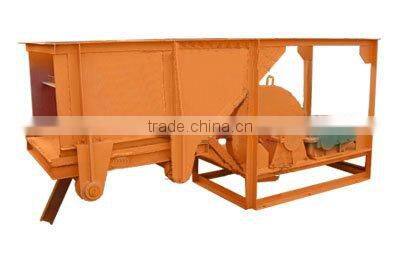

XINGUANG high quality chute feeder machine
Listing description
This machine is mainly used to feed before crushing. It is suitable for the even feeding of granules below 350mm and block shape material.
Note:
Dressing to the mining machine in the field operations often used in conjunction with the ball mill
Main technical parameters:
Model and specification |
Size of output |
The number of swing (times/min) |
Swing itinerary (mm) |
Feeding size (mm) |
Capacity (t/h) |
Motor |
||
Width (mm) |
High (mm) |
Model |
Power (kw) |
|||||
400x400 |
400 |
400 |
18.8 |
20-50 |
100 |
5-15 |
Y110M-6 |
1.5 |
600x500 |
600 |
500 |
38.9 |
20-50 |
200 |
10-25 |
Y112M-6 |
4 |
980x1200 |
980 |
700 |
23.7 |
20-50 |
250 |
36-90 |
Y16.M-6 |
7.5 |
1400x1800 |
1400 |
1800 |
16 |
20-50 |
250 |
90-180 |
Y180-6 |
15 |
Supply high quality Chute Feeder, chute feeder supplier, feeding equipment. Contact us online!
Detailed description
The chute feeder can be installed on the ground or onto discharge port of ore bin. The chute bottom plates do the reciprocating movement, the movement frequency is 20-60 times/min and the stroke is 20-200mm. Stroke can be adjusted by the eccentric wheel; the eccentric throw is half of the stroke. According to experience of some mine sites, the eccentric throw should no less than 30mm for cohesive ore.
The chute width is 2-2.5 times of maximum feeding granularity. The biggest chute feeder can supply ore with granularity less than 500mm. The most common specification is 980 x 1,240 chute feeder, with feeding granularity between 350-0mm, which is the best partner of 400 x 600 jaw crusher.
