Features
1. The ZL15 wheel loader uses the branded DI diesel engine as power, so it has the advantages of easy start, less oil consumption, strong power and environmental protection.
2. Using the dedicated engineering axles, the machine can make improvement for integral mechanical gearboxes, dual steering cylinders and so on, and can facilitate the operation.
3. The wheel loader uses the branded big-flow hydraulic pumps and steering gear. The hoisting arms, direction change and so on take less time and the work efficiency is greatly increased through its matching with the diesel engine.
4. With 24V battery (dual battery), the wheel loader will have an easy start in winter.
5. Its branded and high-quality rubber tire is far better for long-time operations in various environments.
6. The wheel loader employs the high-articulated structure (the distance between upper and lower hinge plates is short and the turning radius is small) to further stabilize the driving operation.
7. Featuring unique appearance, the cab of the wheel loader has a large operating space and wide vision so the machine achieves much safer operation.
8. The wheel loader has an over hauled cover that is easy for maintenance.

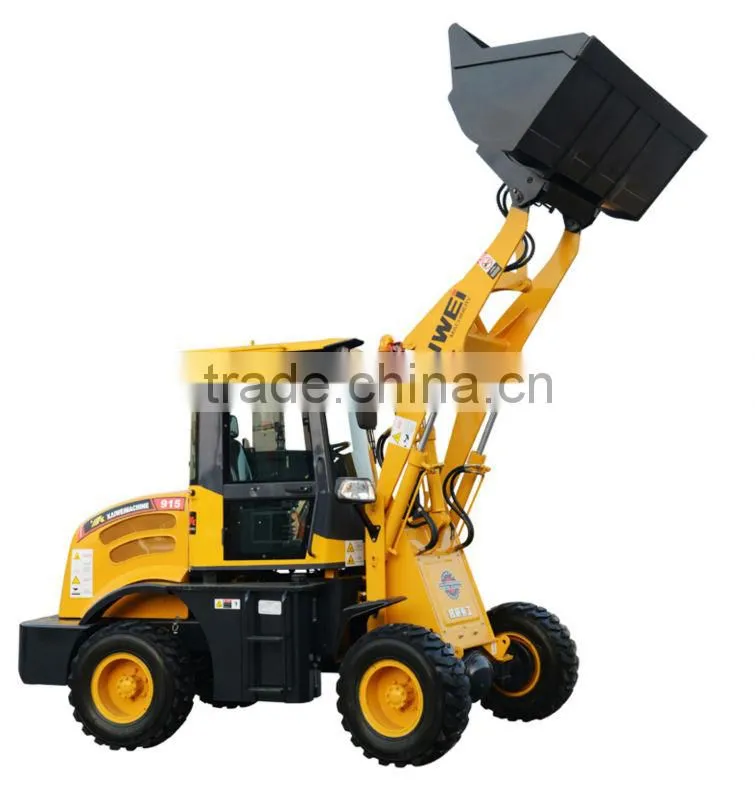

ZL15 small wheel loader ZL15F mini wheel loader with CE approved.LED work light.
| Specification | 1.overall weight(kg) | 3600 | ||
| 2.L×W×H(mm) | 5100X1680X2750 | |||
| 3.Rated bucket capacity(m3) | 0.6 | |||
| 4.Rated load(kg) | 1500 | |||
| 5.Dump height (mm) | 2750 | |||
| 6.Bucket indicator | YES | |||
| 7.Max. breakout force(KN) | 43 | |||
| 8.Brand and modle | Xinchai A498BT1 (Europe III) | |||
| 9.Type | Four strokes, Water cooling, Inline, injecting combustion chamber | |||
| 10.Rated power(kw) | 36.8 KW | |||
| 11.Rated speed(r/min) | 2200 | |||
| Transmission system | 12.Model of torque converter | YJ240 | ||
| 13.Type | single-phase single-stage radial-inward turbine triplex | |||
| 14.Gearbox type | Fixed-spindle power shift | |||
| 15.Gear shift | 2 gears ahead,2 gear astern | |||
| Hydraulic system | 16.Distribution of work valve | ZL20B | ||
| 17.Working pump | CBGj1045,CBGq1018 | |||
| Steering system | 18.Type | Articulated hydraulic steering | ||
| 19.Max. turning angle | 27±1° | |||
| 20.Min turning radius(mm) | 3000 | |||
| Brake system | 21.Brake type | Oil brake(Vacuum booster) | ||
| Tire | 22.Standard tire | 14/90-16,12-16.5 | ||
| 23.Optional wide tyres | 14-17.5 | |||
| Drive speed | 24.Speed | 25KM/H | ||
