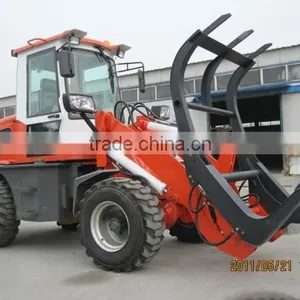

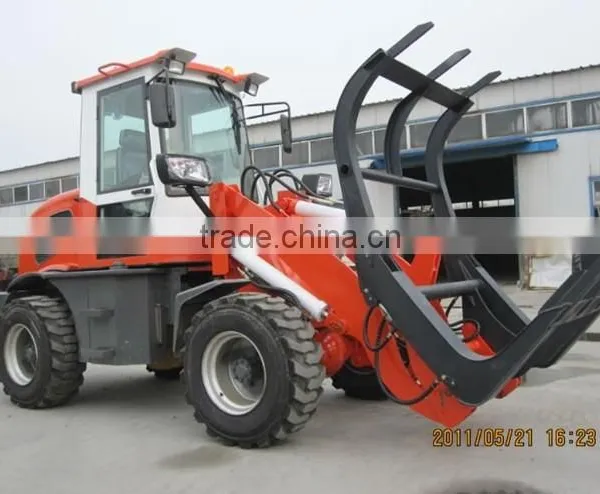

Help CenterZL-15F Xinchai498 Europe III Log Loader With Trailer
Related Products
-
Zl15f Small Wheel Loader Euro III Xinchai498 Mini ExcavatorUS$ 7,000 - 9,900MOQ: 1 Set -
916 Multi Terrain Loaders Machinery and Wheel Loader PartsUS$ 7,000 - 9,000MOQ: 1 Set
-
ZL-15F Mini Loader ce Mark Euro III Xinchai490US$ 7,000 - 9,900MOQ: 1 Set
-
High Quality Forklift Wheel Loader ZL-15F Euro 3 Articulated LoadersUS$ 6,000 - 12,000MOQ: 1 Set
-
KAIWEI Mini Wheel Loader Zl-15f Construction Machinery for SaleUS$ 7,000 - 9,000MOQ: 1 Set
Main features:
1. All parts are made of high quality materials.
2. Streamlined design, elegant appearance.
3. Optimized by CAD, the bucket can be leveled automatically at high position; the bucket cylinder can only be tipped in one direction; “Z” –type connecting rod, tremendous shoveling and digging force.
4. Split type engine and gearbox, with reliable performance.
5. The dynamic system can be equipped with famous engine from home or abroad, can meet the actual requirements of customers.
6. Fully hydraulic steering system, reliable and durable, easy and convenient operation and maintenance.
7. Deluxe cab with wide field of vision, adjustable seat comfort and relieve the driver.
8. There are various of options for customers’ selection.
Kaiwei loader is suitable for narrow space operations with small turning radius, steering flexible. It is hydraulic operation, simple structure, easy operation, good performance, reliable quality, low price, products sold at China and abroad, has been all over the world agency and customer high praised. The products are widely used in infrastructure projects, road construction, brick furnace, sand plant, coal processing industry, stones material factory, cement precast factory, farms, ports, railway stations and agricultural engineering etc. And it can be customized according to customer needs to produce wood fork,grass fork,tuber fork, paper fork, snow shovel, 4-in-1 bucket and multi-function accessories
Bitmap Bitmap
| |||||
| Specification | overall weight(kg) | 3600 | |||
| L×W×H(mm) | 4760X1680X2650 | ||||
| Rated bucket capacity(m3) | 0.7 | ||||
| Rated load(kg) | 1500 | ||||
| dump height (mm) | 2750 | ||||
| Bucket indicator | YES | ||||
| Max. breakout force(KN) | 43 | ||||
| Engine | Brand and modle | Changchai4L68/xinchai498 /490 EuroIII | |||
| Type | Four strokes, Water cooling, Inline, injecting combustion chamber | ||||
| Rated power(kw) | 37 | ||||
| Rated speed(r/min) | 2200 | ||||
| Transmission system | Model of torque converter | YJ240 | |||
| Type | single-phase single-stage radial-inward turbine triplex | ||||
| Gearbox type | Fixed-spindle power shift | ||||
| Gear shift | 2 gears ahead,2 gear astern | ||||
| Hydraulic system | Distribution of work valve | ZL20B | |||
| Working pump | CBGj1045,CBGq1018 | ||||
| Steering system | Type | Articulated hydraulic steering | |||
| Max. turning angle | 27±1° | ||||
| Min turning radius(mm) | 3000 | ||||
| Brake system | Brake type | Oil brake(Vacuum booster) | |||
| Tire | Standard tire | 14/90-16,12-16.5 | |||
| Optional wide tyres | 14-17.5 | ||||
