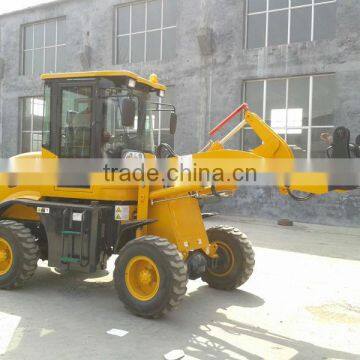

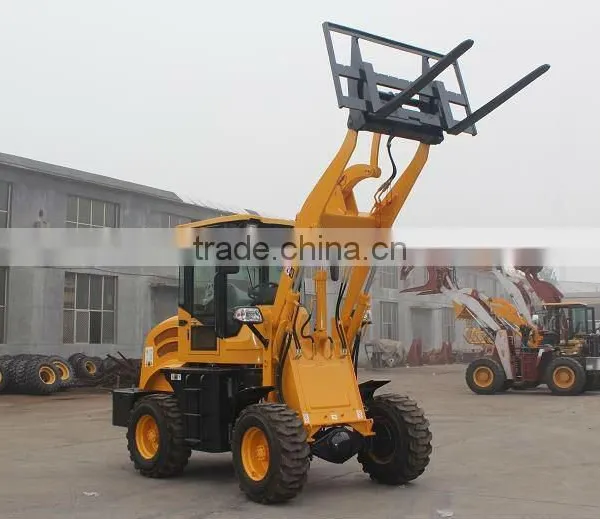

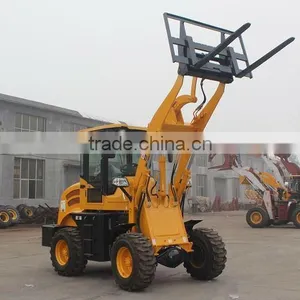

915 Front Loader With Grass Fork,mini Garden Tractors

915 Front Loader With Grass Fork,mini Garden Tractors thumbnail-1
915 Front Loader With Grass Fork,mini Garden Tractors thumbnail-2
915 Front Loader With Grass Fork,mini Garden Tractors thumbnail-3
915 Front Loader With Grass Fork,mini Garden Tractors thumbnail-4
915 Front Loader With Grass Fork,mini Garden Tractors thumbnail-5
915 Front Loader With Grass Fork,mini Garden Tractors thumbnail-6
915 Front Loader With Grass Fork,mini Garden Tractors photo-1
915 Front Loader With Grass Fork,mini Garden Tractors photo-2
915 Front Loader With Grass Fork,mini Garden Tractors photo-3
915 Front Loader With Grass Fork,mini Garden Tractors photo-4
915 Front Loader With Grass Fork,mini Garden Tractors photo-5
915 Front Loader With Grass Fork,mini Garden Tractors photo-6
US$ 6,000 - 9,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
KAIWEI
Model Number:
ZL15F
Contact Supplier Request Quote Chat Now
Qingzhou Shiji Kaiwei Construction Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name KAIWEI
Model Number ZL15F
Place of Origin Shandong, China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 5100X1680X2550
Rated Load 1500KG
Certification CE, CE certification
Warranty one year

Features:



  1. Adopting hydraulic-mechanical power shift transmission boix;
  2. Adopting central articulated frame and load-sensing hydraulic steering gear that can make the track of rear wheels of the front loader coincide with the track of its front wheels when turning to make the turning radius short, which enables it to work on a narrow site and makes it have easy and flexible operation, safe and reliable performance, compact structure and easy maintenance;
  3. Adopting four-wheel drive, low-pressure 16/70-20 bigger tire and pendular rear axle that can make the front loader have good off-road performance, trafficability and more traction;
  4. Fully enclosed cab with adjustable and suspension seat can provide comfortable driving and wide view;
  5. Using 12-16.5 ultra-wide tyres to increase the stability of the whole machine and the service life of tyre;
  6. Brake system adopts vacuum booster, air over hydraulic caliper disc brake on 4 wheels;
  7. This small wheel loader adopts ZL240 itegrated torque converter, and the whole machine is fully hydraulic transmission;
  8. This compact wheel loader can be optionally equipped with pilot control system to make it easy to operate and increase the exceptional performance of the whole machine;
  9. Power system adopts  changchai 4L68, 4L50 direct injection, environmentally friendly, 4-cylinder engine to make this front loader have strong power and high acceleration, which greatly increase its high working efficiency;
  10. This compact wheel loader can be equipped with optional quick hitch (quickluck hydraulic coupler).

.



Bitmap Bitmap
ZL15A/F
Specification overall weight(kg) 3600
L×W×H(mm) 5100X1680X2550
Rated bucket capacity(m3) 0.7
Rated load(kg) 1500
dump height (mm) 2750
Bucket indicator YES
Max. breakout force(KN) 43
Engine Brand and modle Changchai4L68/xinchai498 /490 EuroIII
Type                                                          Four strokes, Water cooling, Inline, injecting combustion chamber

Rated power(kw) 37
Rated speed(r/min) 2200
Transmission   system Model of torque converter YJ240
Type single-phase single-stage radial-inward turbine triplex
Gearbox type Fixed-spindle power shift
Gear shift 2 gears ahead,2 gear astern
Hydraulic system Distribution of work valve ZL20B
Working pump CBGj1045,CBGq1018
Steering system Type Articulated hydraulic steering
Max. turning angle 27±1°
Min turning radius(mm) 3000
Brake system Brake type Oil brake(Vacuum booster)
Tire Standard tire 14/90-16,12-16.5
Optional wide tyres 14-17.5

915 front loader with grass fork,mini garden tractors 915 front loader with grass fork,mini garden tractors915 front loader with grass fork,mini garden tractors915 front loader with grass fork,mini garden tractors
