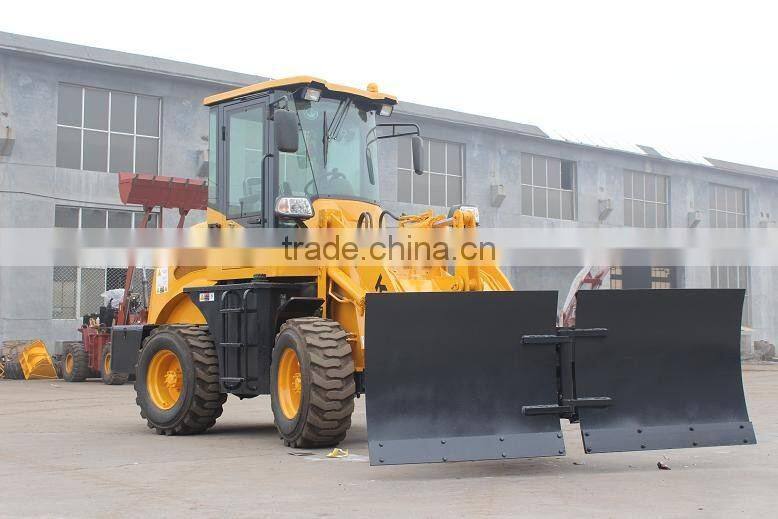

High Tire 4WD Mini Wheel Loader With Price ZL-15F Euro III
US$ 6,000 - 9,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
KAIWEI
Model Number:
ZL15F
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Small Loader Hot Sale in Europe MarketUS$ 7,000 - 9,000MOQ: 1 Set -
Agricultural Front End Loader ZL-15F Euro III Xianchai 498 Rubber TracksUS$ 7,000 - 9,000MOQ: 1 Set
-
ZL15F Wheel Loader Hydraulic Fork Euro III Engine Mini DiggersUS$ 7,000 - 9,000MOQ: 1 Set
-
Never Used ZL15 Mini Wheel Loader With Good Quality and Low PriceUS$ 7,000 - 9,900MOQ: 1 Set
-
2017 Hot Sale 4WD Zl15 Mini Wheel Loader Euro III Digging Arm LoaderUS$ 7,000 - 9,000MOQ: 1 Set
Condition
New
Brand Name
KAIWEI
Model Number
ZL15F
Place of Origin
Shandong, China
Type
Front Loader
Moving Type
Wheel Loader
Dimension(Long * Breadth * High)
4760X1680X2550
Rated Load
1500KG
Certification
CE, CE certification
Warranty
one year
Main features:
1. All parts are made of high quality materials.
2. Streamlined design, elegant appearance.
3. Optimized by CAD, the bucket can be leveled automatically at high position; the bucket cylinder can only be tipped in one direction; “Z” –type connecting rod, tremendous shoveling and digging force.
4. Split type engine and gearbox, with reliable performance.
5. The dynamic system can be equipped with famous engine from home or abroad, can meet the actual requirements of customers.
6. Fully hydraulic steering system, reliable and durable, easy and convenient operation and maintenance.
7. Deluxe cab with wide field of vision, adjustable seat comfort and relieve the driver.
8. There are various of options for customers’ selection.
Bitmap Bitmap
| |||||
| Specification | overall weight(kg) | 3600 | |||
| L×W×H(mm) | 4760X1680X2550 | ||||
| Rated bucket capacity(m3) | 0.7 | ||||
| Rated load(kg) | 1500 | ||||
| dump height (mm) | 2750 | ||||
| Bucket indicator | YES | ||||
| Max. breakout force(KN) | 43 | ||||
| Engine | Brand and modle | Changchai4L68/xinchai498 /490 EuroIII | |||
| Type | Four strokes, Water cooling, Inline, injecting combustion chamber |
||||
| Rated power(kw) | 37 | ||||
| Rated speed(r/min) | 2200 | ||||
| Transmission system | Model of torque converter | YJ240 | |||
| Type | single-phase single-stage radial-inward turbine triplex | ||||
| Gearbox type | Fixed-spindle power shift | ||||
| Gear shift | 2 gears ahead,2 gear astern | ||||
| Hydraulic system | Distribution of work valve | ZL20B | |||
| Working pump | CBGj1045,CBGq1018 | ||||
| Steering system | Type | Articulated hydraulic steering | |||
| Max. turning angle | 27±1° | ||||
| Min turning radius(mm) | 3000 | ||||
| Brake system | Brake type | Oil brake(Vacuum booster) | |||
| Tire | Standard tire | 14/90-16,12-16.5 |
|||
| Optional wide tyres | 14-17.5 | ||||
