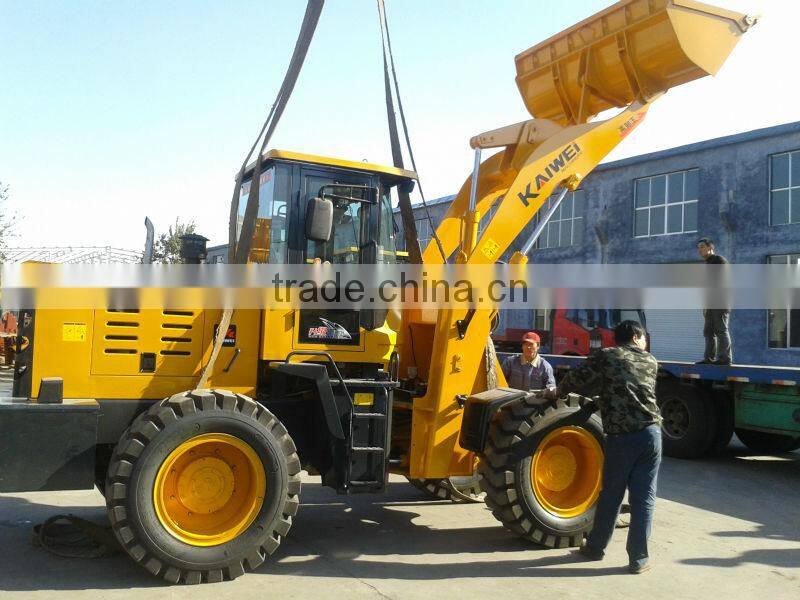

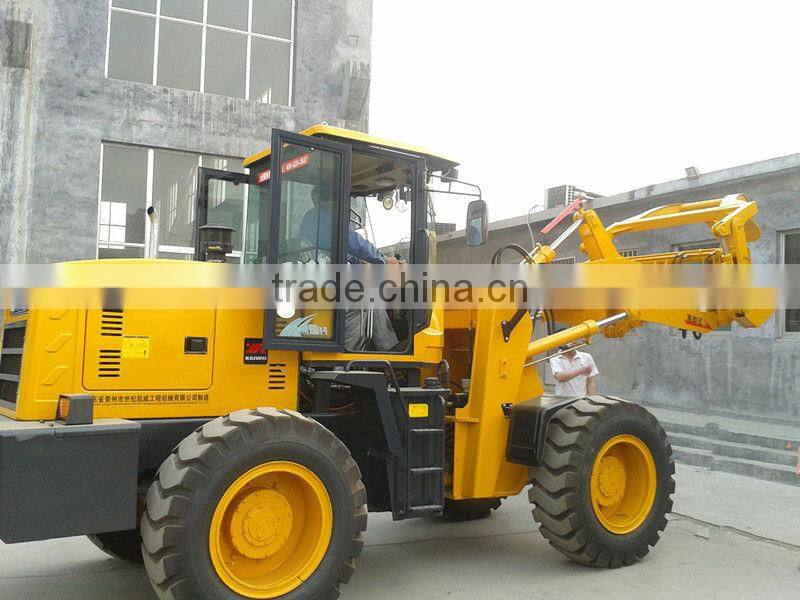

chinese agricultural machinery small loader 2.8 ton ZL928 with spare part
- 1000 Set / Sets per Month
- Qingdo
- T/T
You May Like
-
radiator booster 2.8 ton wheel loader ZL928 hay loader
-
chinese machine wheel shovel loader 2.8 ton zl928 with ce
-
2.8 ton building machine Wheel Loader ZL928 with agriculture fork
-
heavy machinery trader on high quality 2.8 ton wheel loader zl928 with snowboard
-
high quality ZL928 mini dumper 2.8 ton heavy loader with ce low price
-
china 2.8 ton zl928 earth moving equipment
Product Details
| Condition | New | Brand Name | KAIWEI | |
| Model Number | KW932 | Place of Origin | Shandong, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 6400 x2400x2880 mm | Rated Load | 2800KG | |
| Certification | CE | Warranty | one year |
Product Description
Main features:
1. All parts are made of high quality materials.
2. Streamlined design, elegant appearance.
3. Optimized by CAD, the bucket can be leveled automatically at high position; the bucket cylinder can only be tipped in one direction; “Z” –type connecting rod, tremendous shoveling and digging force.
4. Split type engine and gearbox, with reliable performance.
5. The dynamic system can be equipped with famous engine from home or abroad, can meet the actual requirements of customers.
6. Fully hydraulic steering system, reliable and durable, easy and convenient operation and maintenance.
7. Deluxe cab with wide field of vision, adjustable seat comfort and relieve the driver.
8. There are various of options for customers’ selection.
Specification | overall weight(kg) | 6300 |
L×W×H(mm) | 6400 x2400x2880 mm | |
Rated bucket capacity(m3) | 1.3 | |
Rated load(kg) | 2800 | |
dump height (mm) | 3500 | |
Bucket indicator | YES | |
Engine | Model | Weichai 4108/dongfanghong4108 Turbocharged Engine |
Type | Four strokes, Water cooling, Inline, injecting combustion chamber | |
Rated power(kw) | 83kw/75kw | |
Rated speed(r/min) | 2400 | |
Transmission system | Model of torque converter | YJ280 |
Type | single-phase single-stage radial-inward turbine triplex | |
Gearbox type | Fixed-spindle power shift | |
| 2 gears ahead,2 gear astern | |
Hydraulic system | Working pressure(Mpa) | 16 |
Capacity of tank(L) | 60 | |
Steering system | Type | Articulated hydraulic steering |
Max. turning angle | 36±1° | |
Min turning radius(mm) | 4500 | |
Brake system | Brake type | Oil brake(Vacuum booster) |
Tire | Standard tire | 16/70-24 |
Package Details | One sets in 20GP. 2 sets in 40GP | |
