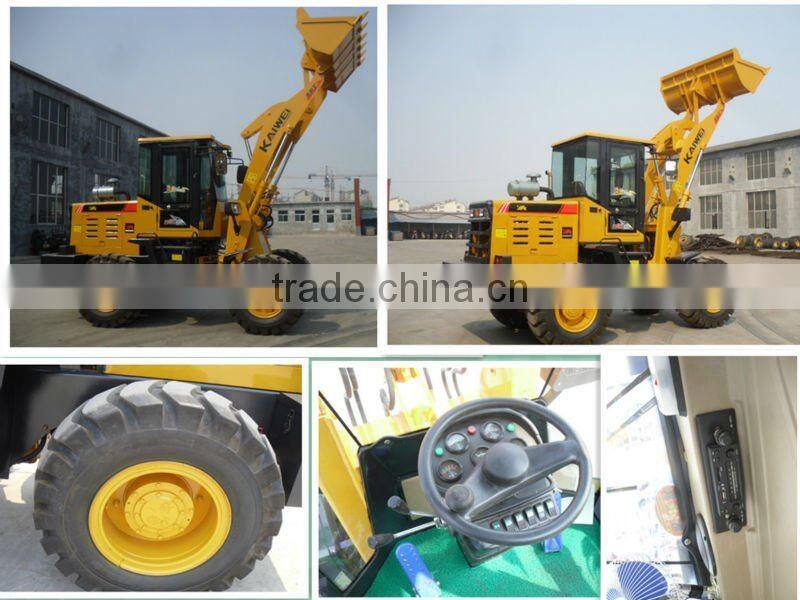

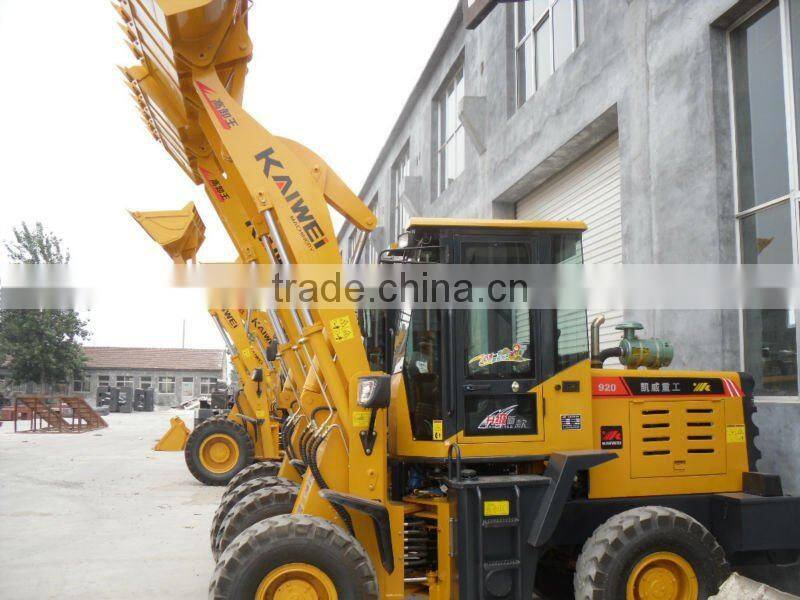

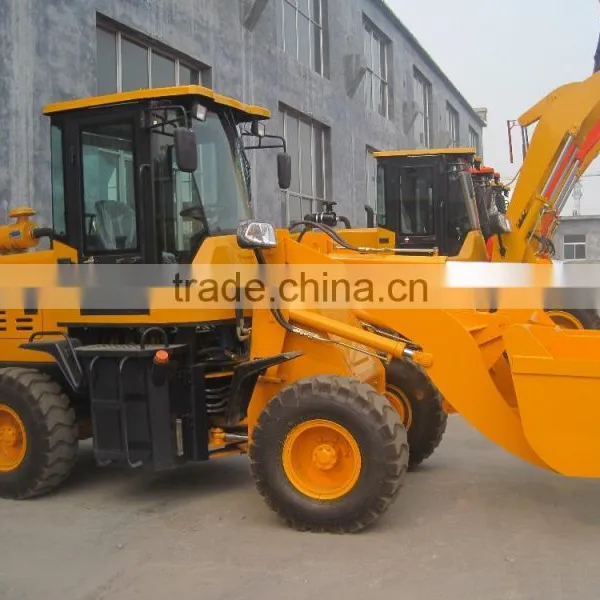

Professional manufacturer of small wheel loader:
1. Good cost performance: Adopting full hydraulic transmission, it can bring the power of engine into full play amply. Adjust the output torque automatically according to the change of loading, and it can achieve continuously variable transmission. It enables the loader working efficiency and easy maintenance
2. High productivity: Perfectly designed to enable the machine have super lifting force and automatic leveling at high position.
3. Good capability in climbing the slope: 4-wheel driven, strong driving power.
4. Operation flexible: Center-point frame articulated and small turning radius makes it convenient to work in confined places.
5. Safe and reliable: Single-line air-assisted brake system.
6. Going-through capability: The rear axle can swing around the center hanging frame, improves the going-through capability of the whole machine.
7. Operation comfort: Continuously variable transmission, full hydraulic steering system steady and reliable
| Specification | overall weight(kg) | 4100 |
| L×W×H(mm) | 5300*1820*2760 | |
| Rated bucket capacity(m3) | 1 | |
| Rated load(kg) | 1800 | |
| dump height (mm) | 2800/3150 | |
| Bucket indicator | YES | |
| Engine | Brand and modle | Weichai 4102,Xichai 4102 |
| Type | Four strokes, Water cooling, Inline, injecting combustion chamber | |
| Rated power(kw) | 47 KW/ 55KW | |
| Rated speed(r/min) | 2400 | |
| Transmission system | Model of torque converter | YJ265 |
| Type | single-phase single-stage radial-inward turbine triplex | |
| Gearbox type | Fixed-spindle power shift | |
| Gear shift | 2 gears ahead,2 gear astern | |
| Hydraulic system | Working pressure(Mpa) | 16 |
| Capacity of tank(L) | 60 | |
| Steering system | Type | Articulated hydraulic steering |
| Max. turning angle | 36±1° | |
| Min turning radius(mm) | 4500 | |
| Brake system | Brake type | Oil brake(Vacuum booster) |
| Tire | Standard tire | 20.5/70-16 , 17.5-16 |
