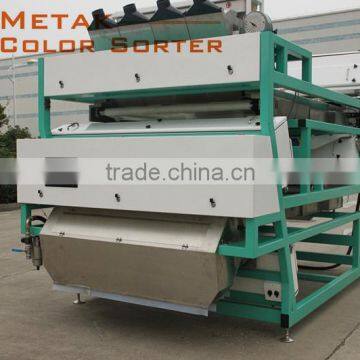

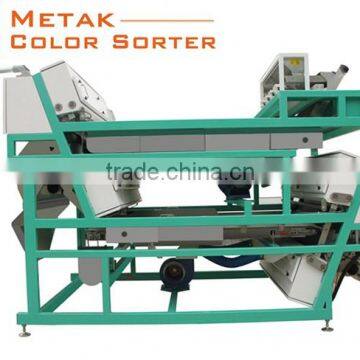

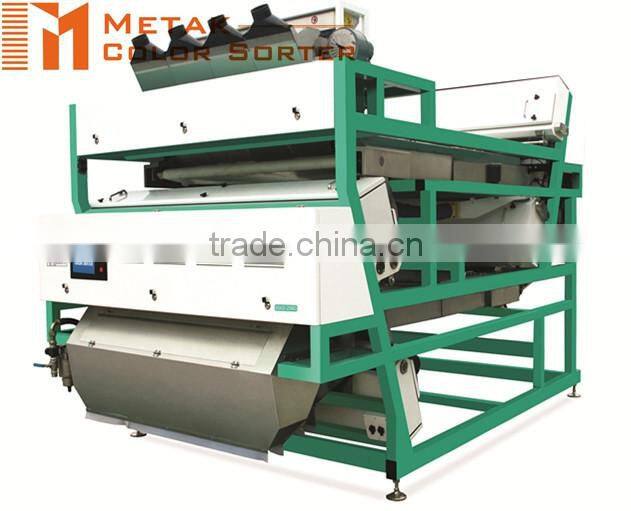

Metak Double-layers Belt Color sorters
Metak Color Sorter Application :
Metak Double-layers Belt Color sorters is using the leading CCD technology for sorting all kinds of coarse cereals,plastic, etc.
Metak Color Sorter Main parts details :
1. Wide application range, Horizontal materials feeding, excellent for sorting of various flake, granular materials, expecially for materials with high elasticity .
2.Good performance, Stable feeding , rejection rate and accuracy is highly improved.
3.Low broken rate. Materials less movement and less collision, broken rate is greatly reduced for the profit fo the customers.
4.High Capacity. No limitation of channels, entire belt is fully utilized, capacity is much higher.
5.Convenient replacement of belt.
6.High reliability. Variety of monitoring tools are deployed.
7.Small space is needed for installation.
8.Forward ouput of materials, convenient for installation of other equipments in the line.
| Type | Double-layers Belt Color sorter | |
| Model | BCSD1280B | BCSD1600B |
| Output (T/h) | 1.2-1.8 | 1.5-2.2 |
| Accuracy (%)) | ≥15:1 | ≥15:1 |
| Carryover(bad/good) | ≥98% | ≥98% |
| Voltage | 220 /380 /50 | 220 /380 /50 |
| Power(kw) | 8.5--11 | 8.5--11 |
| Air Pressure(Mpa) | 0.6—0.8 | 0.6—0.8 |
| Air Consumption(L/min) | <4600 | <4800 |
| Weight(kg) | 3050 | 3336 |
| Dimension(L*W*Hmm) | 3441*1986*2503 | 3441*2346*2503 |
Remarks: The parameters are based on impurity 10% of sunflower seed, actual output changes according to the impurity of raw material.
Metak Color Sorter Factory Show :
1. Inner packing is vacuum-packed with aluminum foil.
2. Outer packing is fumigation-free wood packages.
3. Suit for long sea voyage.
4. Sea Transportaion and Air Transportation are available.
Metak Color Sorter Payment Terms:
1. Delivery time: Based on the customer requirement, 15-20 working days;
2. Shipping: By sea with polywood case.
3. Payment Terms: 30% balance, 70% before shipment by TT, or Letter of Credit.
Metak Color Sorter After-sale Services-----
1. A strong central technical team in Hefei, China: Ready for supporting local agent or wholesales with training, advice and technical support.
2. One year full warranty (except for consumable parts) and a lifelong warranty on the machine structure upon the date of purchase.
3. Service line is available for emergency support: telephone, email, video or on site solutions by our technical experts.
4. Serviced and Supported wherever customers are located.
5. Free software update.
