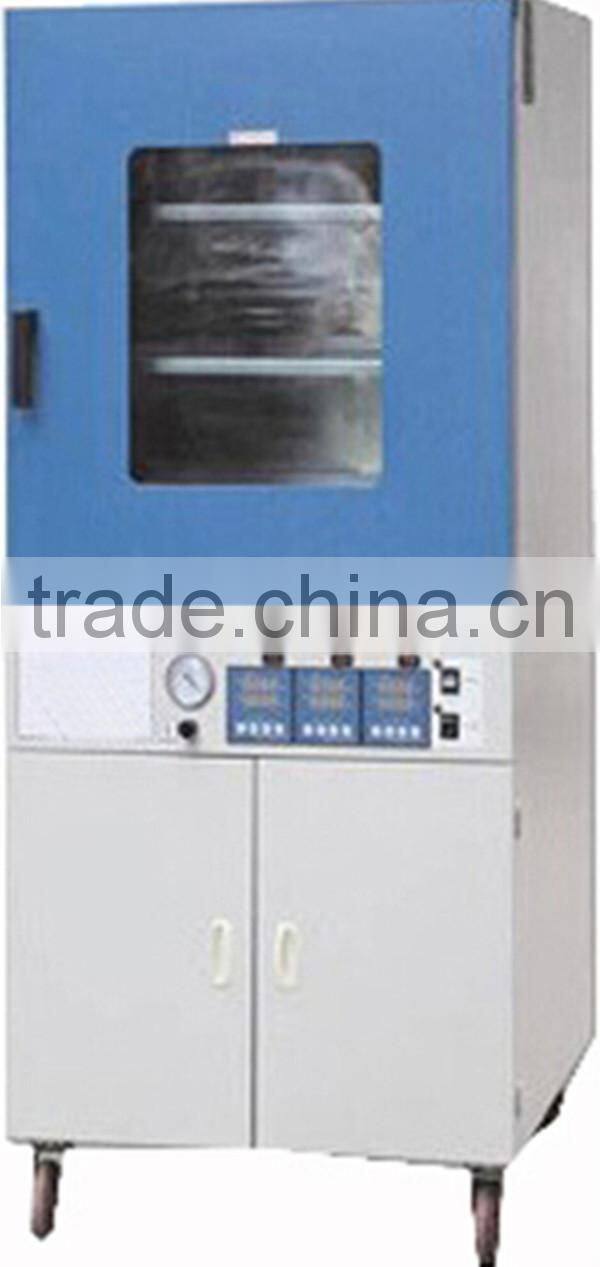

Small Size Lab Vacuum Drying Oven
Vacuum Drying Oven For Lab Use
Model: DO-VB30,DO-VB50,DO-VB90,DO-VB210
Chamber Volume: 30 liters, 50 liters, 90 liters, 210 liters
Chamber Size (W*L*H): 300*300*275mm, 415*370*345mm, 450*450*450mm, 560*600*640mm
Main Features:
1. Adopts originated domestic streamline arc design, the outer is made of cold rolled steel plate, the surface is static lacquered;
2. The working room adopts high quality and imported stainless steel or cold-rolled steel plate with corrosion resistant, durable quality;
3. The air-tightness of the chamber door is adjustable, with a wholly-shaped silicon rubber door sealing loop; so as to guarantee in-chamber high vacuum;
4. Double-layer tempering bulletproof glass door is easy to observe the articles in the working room;
5. The rectangular working room makes full use of effective volume;
6. Micro-computer control and LCD display instrument with functions of high precision on temperature control, over-temperature alarm and automatic cut off;
7. Temperature Controller adopt the international advanced PID adaptive controller,do not need to set internal parameters;
8. Optional function: Equipped with a RS-485 port, which can be connected with computer and recorder, to monitor the working status in real time.
Specifications of DO-VB Type Vacuum Drying Oven:
Model | DO-VB30 | DO-VB50 | DO-VB90 | DO-VB210 | |
Volume | 30L | 50L | 90L | 210L | |
Working Environment | Temperature | +5 - 40°C | |||
| Relative Humidity | ≤ 85% RH | |||
| Atmospheric Pressure | 86 - 106Kpa | |||
Voltage | AC220V ± 10V, 50HZ ± 1HZ | ||||
Temperature Control Range | RT ±10 - 250°C | ||||
Temperature | Accuracy | 0.1°C | |||
| Fluctuation | ±1°C | |||
| Controller | Process Control, LCD Display | |||
| Sensor | K Type Thermocouple | |||
Timer | 1-9999 min | ||||
Absolute Vacuum | ≤ 133 Pa | ||||
Material | Inside | Stainless Steel | |||
| Outside | Cold Rolling Steel Plate with Static Lacquered Surface | |||
Size (W*L*H mm) | Inside | 300*300*275 | 415*370*345 | 450*450*450 | 560*600*640 |
| Outside | 590*470*470 | 710*510*535 | 615*660*1440 | 720*805*1680 |
Power | 450W | 1200W | 1400W | 2500W | |
Tray (PCS) | 1 | 2 | 2 | 3 | |
DO-VB30 and DO-VB50 Type Vacuum Drying Oven:
DO-VB90 and DO-VB210 Type Vacuum Drying Oven:
