Automatic Digital Display Hospital Pressure Steam Autoclave Sterilizer

Digital Display Table Top Pressure Steam Autoclave

Technical advantage

1. For 4~6 minutes rapidly sterilizing;

2. Digital display of working status, touch key;
3. With 3 fixed cycles of water adding, temperature rising, sterilizing, drying steam discharging controlled automatically;

4.The whole process of water adding,temperature rising,sterilizing,drying steam discharging controlled automatically
5. Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry;
6. Exhaust the cool air automatically;

7. Safe protection of water lacking;
8. Door safety lock system;
9. With three stainless steel sterilizing plates;
10. Fully stainless steel structure;
11. Automatically shut off with beep reminding after sterilization finished;
12. With drying function;

Main technical parameter

Model: TS-AD

Volume: 20-50 liters

Working Pressure: 0.22 Mpa

Working Temperature: 105°C-134°C

Timer: 0-99 Minutes

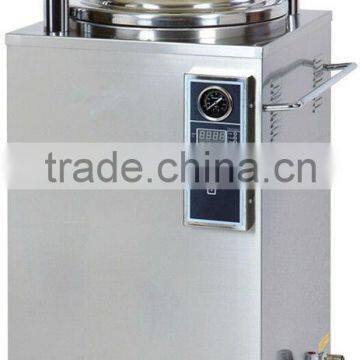

Hand Wheel Type Vertical Pressure Steam Autoclave Sterilizer

Technical advantage

1. Fully stainless steel stricture.
2. Hand wheel type of quick-open door structure.
3. Door safety lock system.
4. Digital display of working status, touch type key.
5. Auto discharge the cool air, and steam discharging automatically after sterilizing.
6. Over temperature and over pressure auto-protection.
7. Safe protection of water lacking.
8. Self-inflating type seal.
9. Automatically shut off with beep reminding after sterilization.
10. With two stainless steel sterilizing baskets.
11. Possible to install drying system according request.

Main technical parameter

Model: VA-SD

Volume: 35-100 liters

Working Pressure: 0.22 Mpa

Working Temperature: 105°C-134°C

Timer: 0-99 min or 0-99 hour 59 min


Horizontal Cylindrical Pressure Steam Autoclave

Technical advantage

1. Automatic sterilization, easy to operate

2. Drying function, suitable for dressing drying

3. Over-temperature, over-pressure auto-protection device.

4. The power will be cut off automatically, and cut-off water and alarm when machine lacks of water.

5. The door opening mechanism cannot be opearated unitl pressure in the chamber is reduced to 0.027Mpa.

It can't start if door doesn't close completely.

6. The safety valve will be open automatically, when the inner pressure over 0.24 MPa and the steam will be
exhausting to the water tank

7. The chamber is made of stainless steel

Main technical parameter

Model: HA-BC

Volume: 150-500 liters

Working Pressure: 0.22 Mpa

Working Temperature: 105°C-134°C

Sterilization Time: 0-60 min

Drying Time:0-60 min


PLC Controlled Horizontal Cylindrical Non-Pulse Vacuum Steam Autoclave Sterilizer

Technical advantage

1.High quality plug-in microprocessor imported from America, the system is powerful and reliable.

2.Water filling, heating up, sterilizing, drying process is automatic without artificial regulation .

3. Status, temperature, pressure, time are shown on Touch screen/LCD display dynamically.

4. Perfect fault alarm system is designed, and fault messages are shown on LCD display.

5. Equipped with mini-printer is to restore the whole sterilization information.

6. Electricity is provided within 2 minutes and procedure continues to operate after cutting-off electricity.

7. Cycle count function.

8. The beep will sound once the sterilization cycle completes.

Main technical parameter

Volume: 60L/80L/120L/140L/160L/180L

Model: WG-HN

Designed pressure: 0.26MPa

Designed temperature: 150℃

Max. working pressure: 0.23MPa

Sterilization temperature range: 105℃~138℃

Temperature accurate: 0.1℃

Temperature homogeneity: ≤±0.5℃

Chamber material: SUS304


PLC Controlled Horizontal Cylindrical Pulse Vacuum Steam Autoclave Sterilizer

Technical advantage

1.PLC control, sixty-five thousand color touch screen.

2.Water injection pump to fill water, accurate control, easy to operate and maintenance.

3.Water filling, pulsing, heating up, sterilizing, drying process are fully automatic.

4.Built-in high quality vacuum pulse , vacuum pulse 1~6 times can reach -0.09 Mpa(-0.9Bar), to ensure effective removal of the air so as to get the optimum saturate steam.

5.Inner circulation, water ring pump without external pipeline, easy to install.

6.Unique pulse vacuum drying procedure is designed, and the residue moisture shall be less than 0.2%.

7.Perfect fault warning system is designed, and fault messages are shown on touch screen display real-timely.

8.Equipped with mini-printer is to restore sterilization cycle.

9.Cycle count function.

10.The beep will sound once the sterilization cycle completes and messages are shown on screen touch display at the same time.

Main technical parameter

Model: WG-HV

Volume: 60L/80L/120L/140L/160L/180L

Designed pressure: 0.26MPa

Designed temperature: 150℃

Max. working pressure: 0.23MPa

Sterilization temperature range: 105℃~138℃

Temperature accurate: 0.1℃

Temperature homogeneity: ≤±0.5℃

Chamber material: SUS304


Large Double Door Pulse Vacuum Pressure Steam Autoclave Sterilizer

Technical advantage

1, Main body

The chamber is rectangle and made of SUS304, is checked by X ray. Its design pressure is 0.245Mpa.

Every equipment attaches quality specification materials signed by labor ministry, which are suitable for the configuration and requirements of Steel Pressure Vessel.

According to mechanical and chemical treatment, the chamber surface is bright, beautiful and corrosion resistant.

2, Insulating layer

The insulating layer is made by aluminium silicate which is the best insulating material.

3, Decorative board

The equipment is rectangular, having stainless steel decorating cover.

4, Seal door

The equipment adopts double door. Both doors cannot be opened simultaneously.

Product will be loaded through loading door located in class B area and unloaded through unloading door in class A area.

A moving ring type non-toxic silicone gasket shall be provided as door seal.

The gasket is lodged inside the groove of the frame. Our sealing technology also has got patent of China. Automatic Control lockout switch, senses when door closed and tight, and mechanical safety

interlock device.

5, Pipe system

The pipes for inner pure steam and air filling (hecto-air) are made of SUS304 with the international advanced principle ‘long running water, long flowing gas that make sure the energy clean. Calorie-hoop interlinkage fast joint not only solve the resorted of the convention threaded fittings, but also convenient for dismount and part changing, cleaning.

The filters for pure steam pipe, air filling pipe and vacuum pipe are from PALL company. The performance is excellent with no medium break or contamination unload. That can be repeated clean and repeated flush.

Control valves: The valves are produced by GEMU Company, Germany. The pneumatic water proof hammer angle valve is fixed in cooling water system that the system can work more smoothly. Other valves are heat resistance angle pneumatic valve which are special for steam (180℃). They are bid directional self-adjustable airproof, big flux with 6 million times working life.

6, Control system

The control system incorporated with: PLC + HIM+ printer. It can be operated automatically and handly.

7, GMP

The GMP confirmation access is fixed which is convenient to do the confirmation.

Main technical parameter

1. Capacity: 100L-5000L
2. Material: SUS304 / SUS316
3. Design pressure: 0.245Mpa
4. Design temperature: 139ºC
5. Work pressure: 0~0.22Mpa
6. Work temperature: 60~134ºC
7. Heat equilibrium: ≤±1ºC
8. Steam pressure: 0.4-0.6Mpa
9. Compressed air pressure: 0.6-0.8Mpa
10. Water pressure: 0.2-0.3Mpa
11. Voltage: 380V / 220V; 50Hz / 60Hz
12. Vacuum: -0.095Mpa
