Home > Products > Autoclave Machine > Bluestone Autoclave Sterilizer Diagram of Autoclave
Bluestone Autoclave Sterilizer Diagram of Autoclave
- 520 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Medical sterile cabinet
- High Pressure Steam Autoclave, Stainless Steel Autoclave
- Mobile plasma air sterilizer for disinfection of hospital, home, and public spaces
- Steam pressure sterilizers used in medical laboratories
- 50L Pressure steam sterilizer
- Small 18L/23L sterilizer Pressure steam sterilizer
Product Details
Type: | Pressure Steam Sterilization Equipments | Brand Name: | Bluestone autoclave | Model Number: | VA-SJ |
Place of Origin: | Anhui, China |
Product Description
Bluestone Autoclave Sterilizer Diagram of Autoclave
The vertical cylindrical pressure steam sterilizer is installed with an electrical heater, an automatic pressure –temp. control, a safety valve, a releasing valve, indicators, an alarm bell for reminding when finish sterilization. It is ideal equipment for clinics, scientific research institutes and other organization to sterilizer surgical instruments, fabric, glasses, culture media etc.
Bluestone Autoclave Sterilizer Diagram of Autoclave Main features
1. Automatic exhausting cold air, heating and sterilization.
2. Sterilization time can be designed by user accord to different articles.
3. Indicator light indicates working condition. Heating will stop when a cycle completed.
4. Horizontal sliding door, self- bulge seal ring, operated easily.
5. Equipped with four foot wheels for easy movement of the unit.
6. Double scale indication pressure gauge
Safety Device of Bluestone Autoclave Sterilizer Diagram of Autoclave:
1. Over current protector
2. Automatic cut off power if the over temperature is surpassed.
3. Sliding door can't be open until pressure in the chamber exhausted.
4. Safety valve of auto release against overpressureIt opens when the designed pressure is surpassed.
5. Heat insulation dock shelter: the door is made of high performance heat insulation material to prevent the operator to be injured.

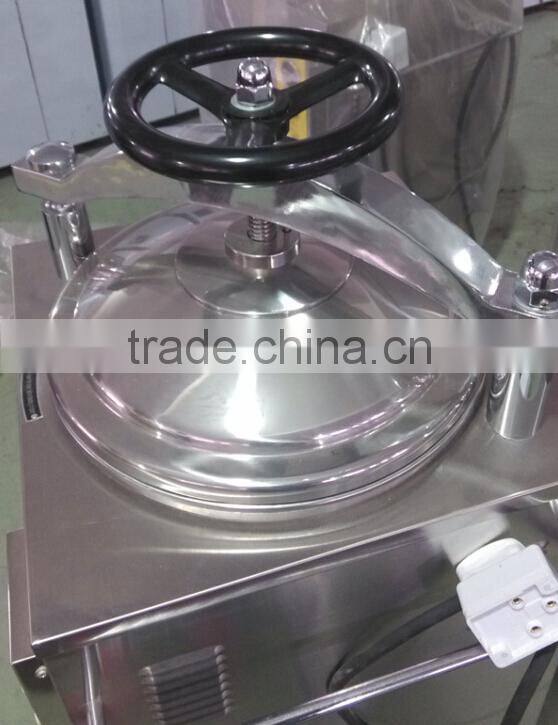

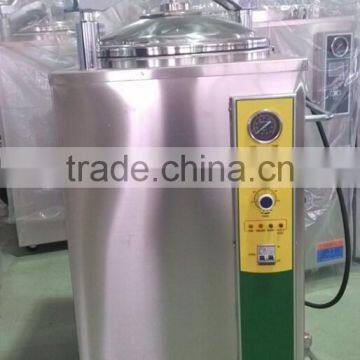

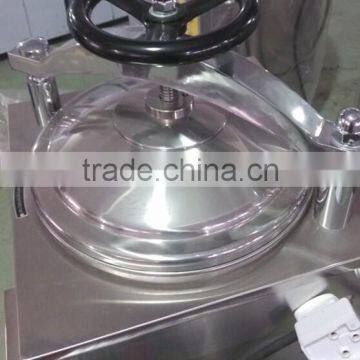

Bluestone Autoclave Sterilizer Diagram of Autoclave view:

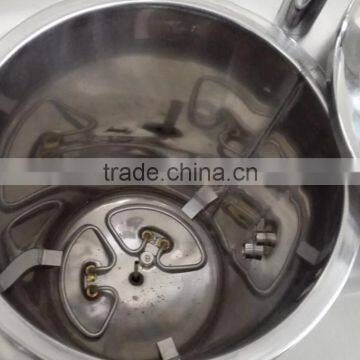

Bluestone Autoclave Sterilizer Diagram of Autoclave Chamber view:
Bluestone Autoclave Sterilizer Diagram of Autoclave baskets:
Bluestone Autoclave Sterilizer Diagram of Autoclave Safety valve:

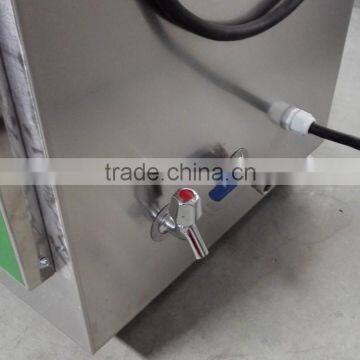

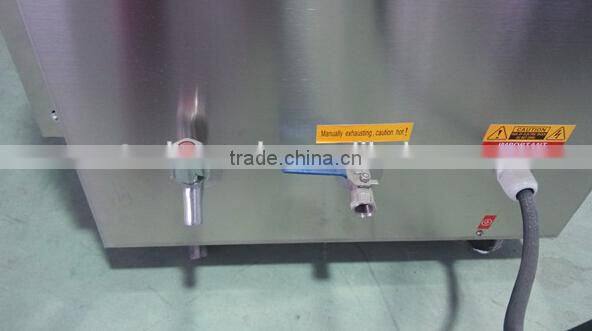

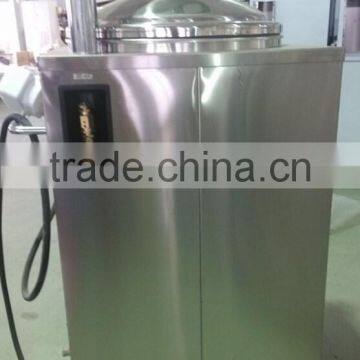

Bluestone Autoclave Sterilizer Diagram of Autoclave Side view:
Model | VA-SJ35 | VA-SJ50 | VA-SJ75 | VA-SJ100 |
Volume | 35 Liters | 50 Liters | 75 Liters | 100 Liters |
Sterilizing Chamber Size | Ø318*H450 mm | Ø340*H550 mm | Ø400*H600 mm | Ø440*H650 mm |
Working Pressure | 0.22 Mpa | 0.22 Mpa | 0.22 Mpa | 0.22 Mpa |
Max Working Pressure | 0.23 Mpa | 0.23 Mpa | 0.23 Mpa | 0.23 Mpa |
Working Temperature | 134°C | 134°C | 134°C | 134°C |
Adjustment of Temperature | 105°C-134°C | 105°C-134°C | 105°C-134°C | 105°C-134°C |
Timer | 0-60 Minutes | 0-60 Minutes | 0-60 Minutes | 0-60 Minutes |
Heat Average | ≤± 1°C | ≤± 1°C | ≤± 1°C | ≤± 1°C |
Power | 2.5 KW | 3.5 KW | 3.5 KW | 4.5 KW |
AC220V 50Hz | AC220V 50Hz | AC220V 50Hz | AC220V 50Hz | |
Sterilizing Baskets | 1 PCS | 1 PCS | 2 PCS | 2 PCS |
Product Dimension | 450*450*1010mm | 510*470*1130mm | 560*560*1120 mm | 540*560*1250mm |
Package Dimension | 570*550*1150mm | 590*590*1280mm | 650*630*1280mm | 680*630*1370mm |
G.W./N.W. | 72 kg / 56 kg | 88 kg / 68 kg | 100 kg / 80 kg | 110 kg / 85 kg |
Bluestone Autoclave Sterilizer Diagram of Autoclave Workshop View:
More Bluestone Autoclave Sterilizer Diagram of Autoclave as below:
Tabletop / benchtop Steam Sterilizer Autoclave for sale
Portable Steam Sterilizer Autoclave for sale
Vertical Steam Sterilizer Autoclave for sale
Horizontal Steam Sterilizer Vacuum Autoclave for sale
