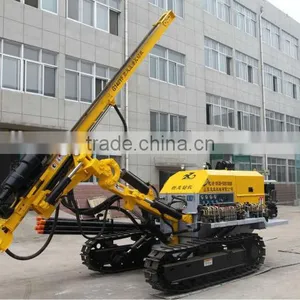

Help CenterCTQ-G140YF Rock Blasting Hydraulic DTH Drilling Rig
Related Products
-
DTH Blasting Hole Drilling Machine /rock Drilling Machine CTQ-G140YF for SaleNegotiableMOQ: 1 Set -
CTQ-G150YF Down The Hole Drill Rig/Blasting Drill RigNegotiableMOQ: 1 Set
-
Powerful Rock Blasting Drilling Rigs CTQ-G150YF for SaleNegotiableMOQ: 1 Set
-
Powerful Crawler Rotary Drill Rig G150YF With CE/ISO CertificationNegotiableMOQ: 1 Set
-
Powerful Crawler Rotary Drill Rig MZ130Y-2 With CE/ISO Certification for SaleNegotiableMOQ: 1 Set
Specifications
CTQ-G140YF rock blasting hydraulic DTH drilling rigDrilling diameter:115~140mm
Drilling depth:60m

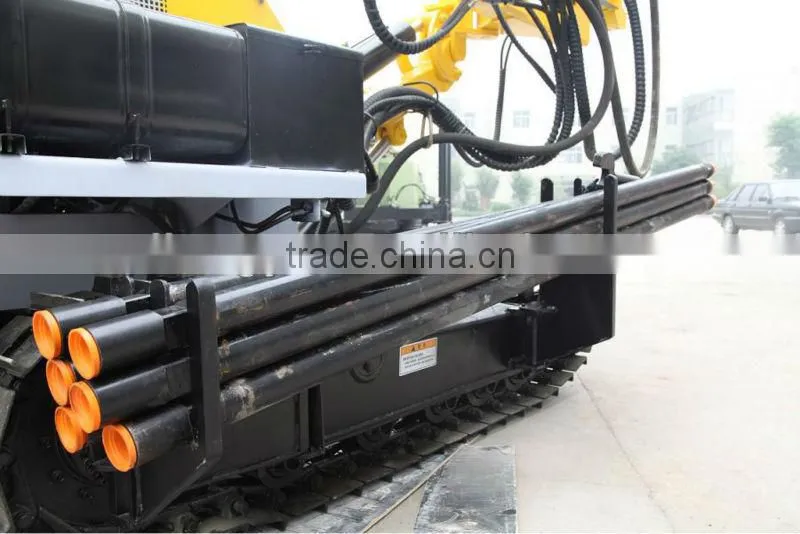

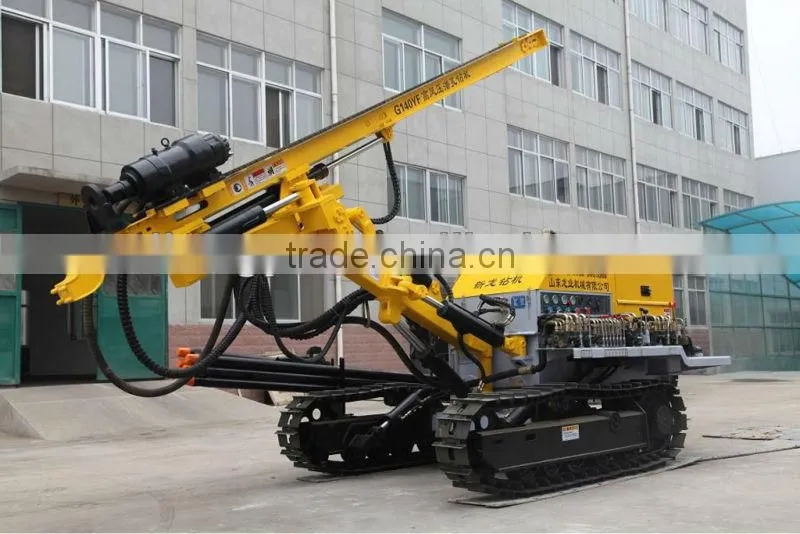

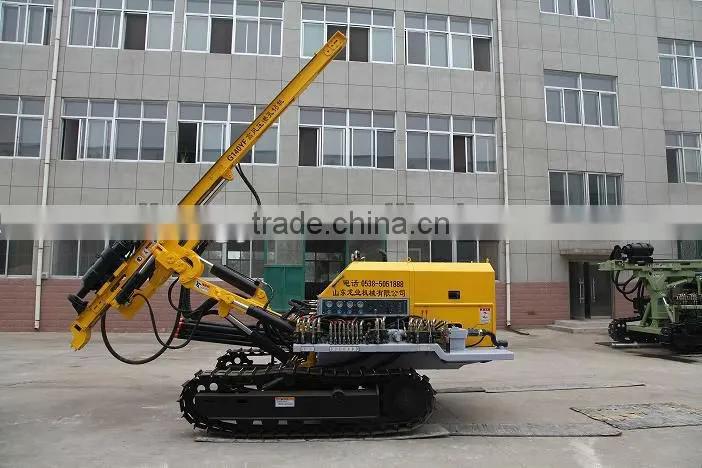

CTQ-G140YF rock blasting hydraulic DTH drilling rig
Drilling diameter:115~140mm
Drilling depth:60m
G140Y high pressure drill rig
CTQ-G140Y High Air Pressure DTH Drill Crawler open with a low energy consumption, high efficiency, easy to transport and field construction superior technical performance, vehicle movement organizations from the hydraulic system to achieve, and only washed the source of the wind machine consumption, resulting in Air Machine Matching saves in a complete set of equipment procurement costs. Rotary organizations to adopt a new dual-motor turret to make it to the open-air blast drilling operations when drilling large holes to maintain a strong rotary torque output, dragging air compressor, it has the mobile and flexible and climbing ability, suitable for rugged venue operations, perforation shift convenience features. Whole diameter 115-165mm, with a piercing, high efficiency, Maintenance is simple, high reliability, is a mining, highway, water conservancy, power station construction and other construction ideal for drilling rig operations.
Technical parameters
Bore diameter |
115-140mm |
Bore depth |
60m |
|
Walk speed |
0-2.5kw/h |
|
For rock |
F=6-20 |
|
Air pressure |
1.05-2.46Mpa |
|
Air consumption |
10-20m³/min |
|
Once promotion |
3000mm |
|
Skid pitch |
Up and down total100° |
|
Skid swing angle |
Up and down total100° |
|
Boom swing angle |
Left and right total 40° |
|
Boom pitch |
Up and down total 70° |
Host power |
56Kw
|
Rotation speed |
0-126/min |
Dimension(L*W*H) |
5270*1950*2300(mm) |
weight |
3850Kg |
