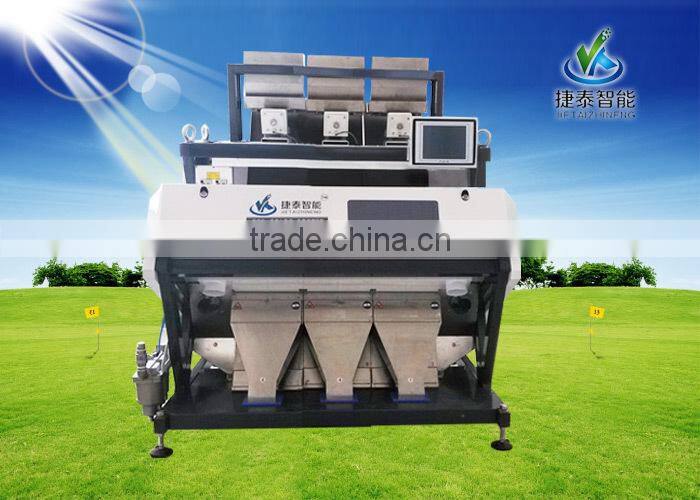

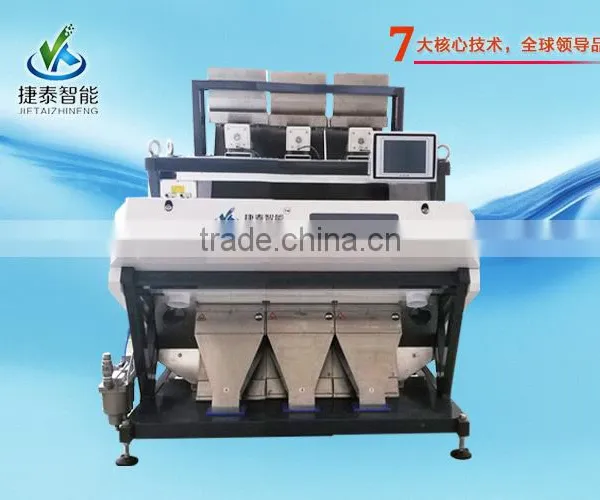

Soybean grading machine CCD Color Sorter for Industrial Factory Usage Advanced Technology
Quick Details
Name: CCD Color Sorter
Low waste
Low consumption
High accuracy
High throughput
Descriptions
Used for separating different kinds of rice on the basis of color. like Thailand Long Rice, Long-shaped Rice, Black Rice, Glutinous Rice, Small Yellow Rice, etc.
Perfect self-inspection function realizes real-time tracking and malfunction indication of spray valve system, working pressure, constant temperature system and illumination system.
Adopt real color 8.4 display; Equipped with high-reliability four-wire resistance touch screen; Correct location of touch screen at any time; User-friendly operation interface; Simple and easy to operate;
The color sorter uses 2048 high performances CCD sensors with the definition up to 0.07mm² .
The sorter adopts high quality special industrial lenses designed and manufactured for color detection.
The high speed DSP technology provides the sorter with fast detection and high identification rate.
Master control system adopts ARM high-end processor to enhance and control the speed and color selection precision effectively.
Applications
Sesame seeds, sunflower seeds, soybeans, corn, peanuts, wheat, broad bean, mung beans, raisin, barley, oats, buckwheat, millet, red beans, black beans, kidney beans etc.
Specifications
ITEM.NO | JT-CCDR2 | JT-CCDR3 | JT-CCDR4 | JT-CCDR5 |
Machine weight(kg) | 700 | 900 | 1100 | 1300 |
Throughput(T/H) | 1-2.5 | 1.5- 4.5 | 2.5-6 | 3~7 |
light source | LED light | LED light | LED light | LED light |
pixel of camara | 2048 | 2048 | 2048 | 2048 |
Voltage(v) | 220V/50HZ | 220V/50HZ | 220V/50HZ | 220V/50HZ |
Power (kw) | 0.8-2 | 1.0-2.5 | 1.2 - 3.0 | 1.4- 3.5 |
Sorting Accuracy(%) | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% |
Optimized carryover | ≥10:1 | ≥10:1 | ≥10:1 | ≥10:1 |
Air pressure(Mpa) | ≥0.6 | ≥0.6 | ≥0.6 | ≥0.6 |
Air consumption (L/min) | 800-1300 | 1000-1800 | 1200-2500 | 1500-3000 |
Package | wooden case | wooden case | wooden case | wooden case |
Why to choose US ?
OEM and ODM orders are welcomed.The goods can be manufactured according to your own designs,colors and sizes,as long as you could offer us pictures and sizes. Also,any images or logo printings are available.
WE PROMISE SUPERB AFTER-SERVICES: CUSTOMER FIRST,PROFESSIONAL AND EFFICIENT
Provide free training,consulting and technical support for users:
Provide personalized programs to the demands of customers;
Upgrade software for free for a lift time;
Provide free warranty service for one year ( except the wearing spare parts );
Inspect equipment for free at least twice every year;
Provide 7*24 hours consultation and urgent service for users
