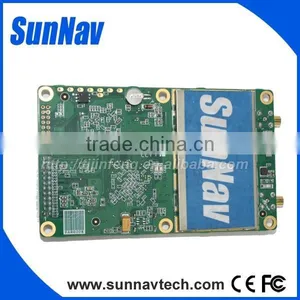

K128 GPS module receiver module
Signal Tracking | |
Channel |
198 Channels |
GPS |
L1 C/A Code, L1/L2 P Code |
BeiDou |
B1, B2 |
SBAS |
WAAS, EGNOS, MSAS |
Cold Start |
< 50s |
Warm Start |
< 30s |
Hot Start |
< 15s |
Signal Reacquisition |
< 2s |
Positioning Specifications | |
Pseudo Range Accuracy |
L1=10cm/L2 =10cm, B1=10cm/B2=10cm |
Carrier Phase Accuracy |
L1=0.5mm/L2=1mm, B1=0.5mm/B2=0.5mm |
Standalone Position Accuracy |
< 1.5m |
Real Time Kinematics (RTK) |
Horizontal: 10 mm + 1 ppm RMS |
|
Vertical: 20 mm + 1 ppm RMS |
Initialization Time |
Typically < 10s |
Initialization Reliability |
Typically > 99.9% |
Post Processing Static |
Horizontal: 2.5 mm + 1 ppm RMS |
|
Vertical: 5 mm + 1 ppm RMS |
Velocity Accuracy |
0.03 m/s |
Acceleration |
4g |
Overload |
15g |
Time Precision | |
GPS |
20 ns |
BeiDou |
30ns |
GPS + BeiDou |
20 ns |
Communications | |
RS232 |
3 LV-TTL Ports, Baud rates up to 921,600 bps |
Positioning Data Outputs |
1 Hz, 5 Hz & 10 Hz (depends on installed option) |
Raw Data Outputs |
1 Hz, 5 Hz, 10Hz & 20 Hz |
PPS |
1 Pulse Per Second Output |
Indicating Light |
3 LED Indicating light |
|
Indicating Power, Satellite Tracking and Differential Data |
Data Format | |
Correction Data I/O |
RTCM 2.1, 2.2, 2.3, 3.0, 3.1, CMR(GPS only),CMR+(GPS only) |
Position Data Outputs |
ASCII: NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA, ZDA, |
|
VTG, GST, PJK, PTNL |
|
Extended NMEA-0183 BDGGA, GPNTR, GPCDT, GPHPR |
|
Binary (compatible with major brands) |
Phisical | |
Size (L x W x H) |
100mm x 60mm x 12mm |
I/O Interface |
44-pin Double Male Header |
Weight |
40g |
Antenna |
1 x MCX Receptacle (10 MHZ) |
Environmental | |
Working Temperature |
-40°C to +85°C |
Storage Temperature |
-55°C to +95°C |
Humidity |
95% Non-Condensation |
Electric | |
Input Voltage |
3.3-6V DC |
Power Consumption |
1.0W |
Memory |
100MB |
According to the size, volume of products,using standard packaging.
Via international express (DHL, Fedex, UPS, TNT)are all available.It can be fast for you to transport the goods in your hands.
