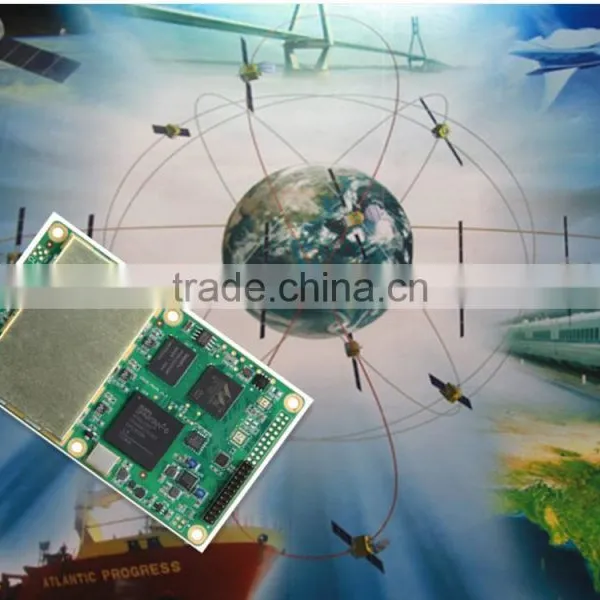

K108 GNSS module
Signal Tracking | |
Channel | 198 Channels |
GPS | L1,L2,L5 |
BeiDou | B1, B2,B3 |
GLONASS | L1,L2 |
SBAS | WAAS, EGNOS, MSAS |
Cold Start | < 50s |
Warm Start | < 30s |
Hot Start | < 15s |
Signal Reacquisition | < 2s |
Positioning Specifications | |
Pseudo Range Accuracy | L1=10cm/L2 =10cm/L5=10cm, B1=10cm/B2=10cm/B3=10cm |
Carrier Phase Accuracy | L1=0.5mm/L2=1mmL5=0.5mm, B1=0.5mm/B2=0.5mm/B3=0.5mm |
Standalone Position Accuracy | < 1.5m |
Real Time Kinematics (RTK) | Horizontal: 10 mm + 1 ppm RMS |
| Vertical: 20 mm + 1 ppm RMS |
Initialization Time | Typically < 10s |
Initialization Reliability | Typically > 99.9% |
Post Processing Static | Horizontal: 2.5 mm + 1 ppm RMS |
| Vertical: 5 mm + 1 ppm RMS |
Velocity Accuracy | 0.03 m/s |
Acceleration | 4g |
Overload | 15g |
Time Precision | |
GPS | 20 ns |
BeiDou | 30ns |
GLONASS | 20ns |
GPS + BeiDou | 20 ns |
Communications | |
RS232 | 3 LV-TTL Ports, Baud rates up to 921,600 bps |
Positioning Data Outputs | 1 Hz, 5 Hz & 10 Hz (depends on installed option) |
Raw Data Outputs | 1 Hz, 5 Hz, 10Hz & 20 Hz |
PPS | 1 Pulse Per Second Output |
Indicating Light | 3 LED Indicating light |
| Indicating Power, Satellite Tracking and Differential Data |
Data Format | |
Correction Data I/O | RTCM 2.1, 2.2, 2.3, 3.0, 3.1, CMR(GPS only),CMR+(GPS only) |
Position Data Outputs | ASCII: NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA, ZDA, |
| VTG, GST, PJK, PTNL |
| Extended NMEA-0183 BDGGA, GPNTR, GPCDT, GPHPR |
| Binary (compatible with major brands) |
Phisical | |
Size (L x W x H) | 100mm x 60mm x 12mm |
I/O Interface | 44-pin Double Male Header |
Weight | 40g |
Antenna | 1 x MCX Receptacle (10 MHZ) |
Environmental | |
Working Temperature | -40°C to +85°C |
Storage Temperature | -55°C to +95°C |
Humidity | 95% Non-Condensation |
Electric | |
Input Voltage | 3.3-6V DC |
Power Consumption | 1.8W |
Memory | 100MB |
According to the size, volume of products,using standard packaging.
Via international express (DHL, Fedex, UPS, TNT)are all available.It can be fast for you to transport the goods in your hands.
