High Pricision and Best Price IGS100 GIS Receiver

Specifications

The features about IGS100 GIS Receiver

IGS100 GIS Receiver is based on Windows mobile 6.5 operating system, and it has high-resolution 3.5-inch 480X320 pixel touch screen, with wireless LAN and WAN 2.75G Netcom Communications and data transfer, support for GPS, 320 million autofocus camera and video, support one, two dimensional scanning laser or image reading, support 13.56Mhz RFID reader, Bluetooth 2.0 short distance data transmission.

IGS100 is an ideal, costeffective mobile GIS mapping solutions, in addition to the application of highly integrated functions, it is in strict accordance with industry standard IP54 package designed to meet the concrete floor 1.2 m drop test. And is equipped with a safety 3400mAh lithium polymer battery, to meet the equipment at full capacity 12 hours work!

GNSS Characteristics

Internal antenna: 12 channels

- GPS L1 C/A

- SBAS: WAAS/EGNOS/MSAS

External antenna connector

NMEA-0183 and Sirf Protocol output 1Hz

TTFF:30s

Accuracy Specifications (Horizontal RMS)

Real-time SBAS: 2-5m typical

Processor

ARM architecture Hisilicon 520MHZ

Operating System

Microsoft Windows Mobile 6.5 Professional

Software package includes:

- Internet Explorer®

- Office Mobile

- ActiveSync®

- Transcriber (handwriting recognition)

Communications

Cellular

Built in GSM/GPRS

900/1800 MHz

Bluetooth

Bluetooth 2.0 with EDR

WiFi

Integrated 802.11b / g

Interface

USB

Mini USB interface / charge cradle

GPS

With AGPS function Srif Star III navigation chip

Physical Characteristics

Size155 mm x70 mm x26 mm

 Weight265g

 User Interface

 Keyboard

 side button

 power button

 the front of 30 keys keyboard

 Display

 3.5 inch, HVGA (480X320) TFT high-brightness, touch screen

Touch Panel: Glass analog resistive touch screen
Backlight: LED backlight
Memory

 256MB Flash ROM + 128MB SDRAM

 Mini SD cards up to 32G

Environmental Characteristics

Operating temperature:-30° to +50°C

 Storage temperature:-40° to +60°C

 Humidity: 95% non condensing

 Waterproof: IP54

 Free drop: 1.2 m on concrete

Power Characteristics

 3.7V 3400mAH Li-polymer

 Battery life: > 12 hrs

 Charge time: 4 hours

 Removable battery

Electrostatic Discharge:

+ /-15kV air discharge, + /-8kV direct discharge

Multimedia & Sensors

Camera 3M Pixels

 Speaker

 Microphone

Data collection specifications (Option)
Bar code: one-dimensional laser imaging,

two-dimensional image scanner
RFID 13.56MHz, compatible with 14443/15693 protocol

One-dimensional laser scanner (Option)
Optical resolution: greater than or equal 4mil
Scan Depth: 3.81 cm -60.98 cm
Scan angle: 47 ° ± 3 ° (standard)
Scan speed: 102 ± 12 times per second (bi)

Two graphics scanner (Option)
Optical resolution: greater than or equal 3mil
Scan angle: all the
Scan speed: 300 times

Standard Accessories

StylusHand-strapA/C chargerUSB cable
IGS-100 is based on Microsoft Windows Mobile 6.5 operating system, provides an open platform to support third-party software, As a leader in the field of GIS, it can enable users to install third-party GIS software. Such as ESRI's ArcPad software.

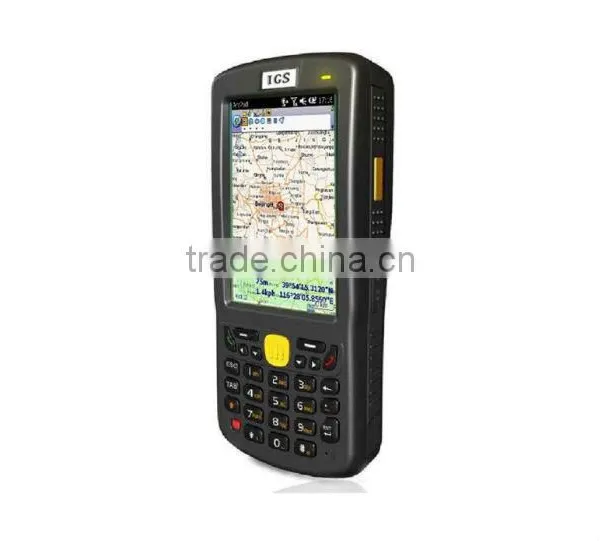

The image about the GIS 100 GS receiver
