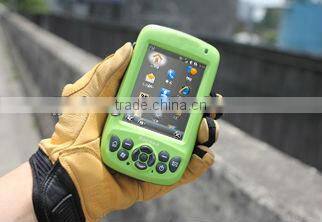

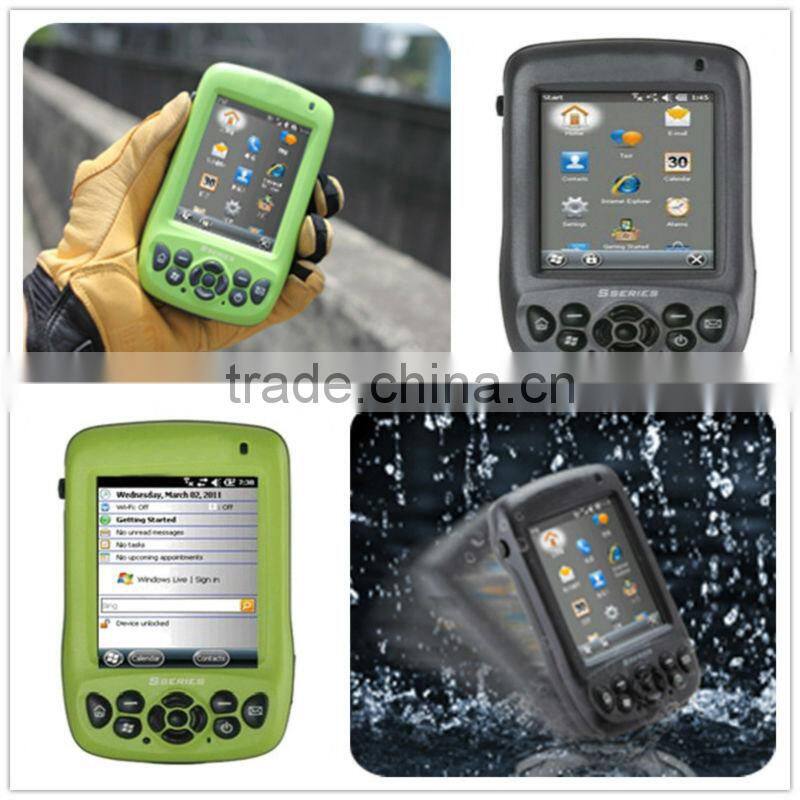

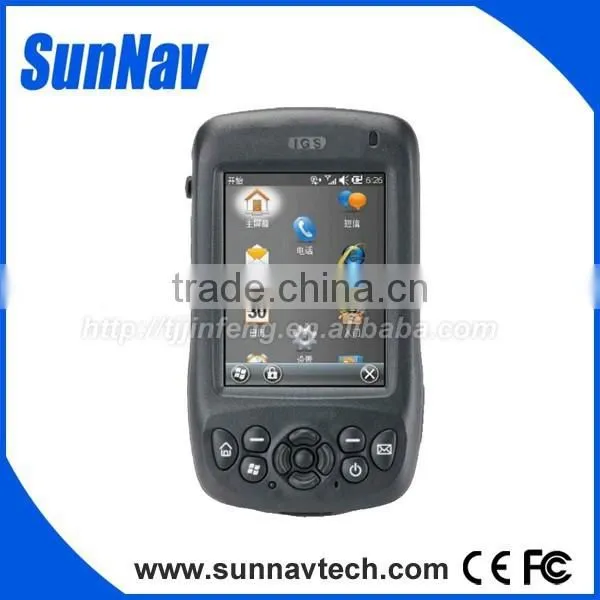

IGS110 GIS Data Collector
It is the next generation of high precision rugged handheld terminal designed specifically for the Mobile GIS required industry. Builtin the harsh environment features will cope with users’ working surroundings and enhance their handheld experiences, outdoors. The IGS series equips the capability for both the Field Collectoand mechanism controller device. Sseries offers the most up to date, fast and efficient mobile processing power. Its ruggedness and swappable battery designs will withstand the rigors of continuous field works. Communications options are designed available to all necessary working environments
Wireless Communications Available
Radios (all with internal antennas):
– Bluetooth™
– Wireless LAN: 802.11b/g
– HSDPA/UMTS: Triple band
GSM/GPRS/EDGE: Quad band
– GPS: high accuracy GPS solutions for
GIS application enabling
– DGPS: enabled
Ntrip embedded thru direct data Communication
<1M ± (0.25 m + 1 ppm) RMS/ Horizontal
< 2M ± (0.5 m + 1 ppm) RMS/ Vertical
nSBAS (WAAS/ EGNOS/MSAS)
u <2M ± 0.25m + 1 ppm RMS/ Horizontal
Highlighted Specification and features
Light weighted Rugged IP 65 handheld
Processor with 800 MHz
256MB RAM
2G embedded ROM and supported
External 32GB microSD available
Sub-meter enabled GPS designed
Drop specifications
- 1.2+ Meter drop
- Over 1000+ tumbling (50 cm) testing
Temp range:
- Operating: -20C~ 60C
- Storage: -40C~ 70C
ELECTRICAL SPECIFICATION
Processor: Samsung 3SC6410 @800 MHz
Non Volatile Memory: FLASH 2 GB
Volatile Memory: SDRAM 256 MB
Display: 3.5” color LCD TFT Transflective
240 x 320 pixels (1/4 VGA)
Touch Panel: Analog resistance type
Keypad:9 keys, 4 soft Function keys,Camera
And Power On/off key
Visual Indicator: Tricolor LED, Software controlled
Audible Beeper: 80 dBA SPL @ 10cm, 3.5 kHz
8 to 10 kHz programmable
Personal Area Network: Bluetooth class II, v2.1 EDR
Local Area Network: IEEE 802.11b/g 54 Mb/s
Wide Area Network:UMTS/HSDPA:, Triple band,
850/1900/2100MHz GSM/GPRS/EDGE:
Quad band 850/900/1800/1900Mhz
Main Battery: Lithium-Ion Polymer, 3.7V, 2,600 mAh
USB Charging thru PCs
Interface: USB OTG/ RS232
SOFTWARE
Operating System: Windows 6.5 classic
OS Image Loader: Via USB
Bluetooth Profiles: GAP, SDP, GOEP, DUN, SPP, OPP,
Supported: A2DP, PAN, HID
Application: Office Mobile, Windows Live Messenger
Windows Live Search Plug-in, Remote
Desktop Mobile ,OEM PPG Provision
GPS Performance
Receiver Type: 50 Channels
GPS L1 frequency, C/A Code
GALILEO Open Service capable1
SBAS: WAAS, EGNOS, MSAS, GAGAN
Time to Fix
Cold Start (Autonomous):29 s
Warm Start (Autonomous):29s
Hot Start (Autonomous):<1s
Accuracy for Timepulse RMS 30ns
99% <60 ns
Compensated 15ns
ENVIRONMENTAL SPECIFICATION
Operating Temperature:–20° to +60°C (–4° to +140°F)
Storage Temperature: –40° to +70°C(–40° to +158°F)
(short term storage)
Humidity: 0% to 90% @50°C for 8 hours non-condensing
Dust/Fluid Protection:Per IEC 60529 Edition 2.1:2001-02
IP65 8 hours dust, 10 minutes water
Vibration: Per IEC 60068-2-64 5 to 500Hz, 2.14G,random wave
Mechanical Shock: Per IEC68-2-27 40G, 11ms, half sine wave
Drop Resistance: Per IEC 68-2-32
Procedure I 4’ (1.2 m)
onto steel surface
Tumble Resistance: Per IEC 68-2-32 Procedure 2
0.5m, randomly 1000 times on hard
surface with 19mm thickness wood
backed by 3mm thickness steel
PHYSICAL SPECIFICATION
Weigh: TBD
Dimension: 140 mm (L) x 82.5mm (W) x 33mm (D)
REGULATORY
Radiated & FCC Part 15 Class B, and Part 22/24
Conducted Emission NCC LP0002 /PLMN01/ PLMN08
Other Regulatory: CCC
