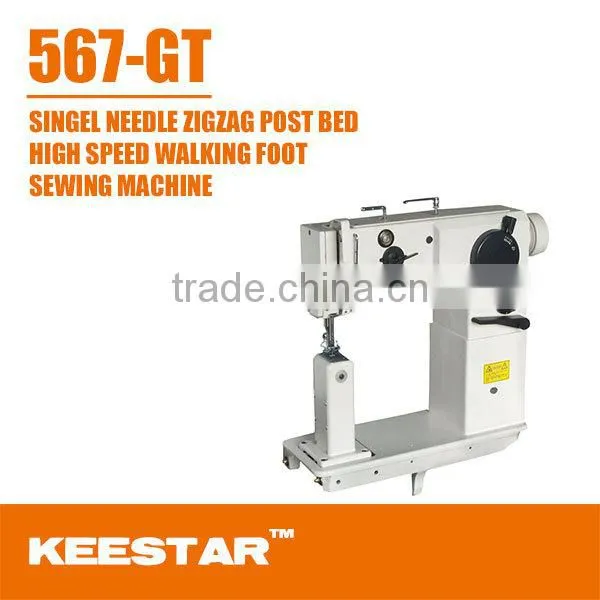

Keestar 567-GT Post Bed Lockstitch Zigzag Sail Making Machine

Keestar 567-GT Post Bed Lockstitch Zigzag Sail Making Machine photo-1
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Industrial Sewing Machine
Place of Origin:
Shaanxi, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China main ports
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Industrial Sewing Machine
Place of Origin Shaanxi, China
Brand Name Keestar
Model Number 567-TS
Stitch Formation Lock Stitch
Mechanical Configuration Cylinder-Bed
Max. Sewing Speed 2,000rpm
Max. Sewing Thickness 8mm
Stitch Length 5mm
Power 750W
Feed Mechanism Walking Foot
Certification ISO9001
After-sales Service Provided Overseas third-party support available

Keestar 567-GT post bed lockstitch zigzag sail making machine



Product Description

Application:



Keestar 567-GT post bed lockstitch zigzag sail making machine for straight, zigzag and piece sewing of mid-heavy weight material sewing. Specially suitable for sewing bag, shoes, etc,

 made of mid-heavy weight leather and thick fabric.



Features:



1.Parallel and vertical needle bar movement, makes needle completely vertical puncture the materials.

2.Using big bobbin, reducing the time of bobbin thread changing, increase output.

3.Post sewing bed, make it much easier to sew materials corner.

4.Separate semi-auto lubricating system and lifelong oiling sealing bearings promises service life of spare parts.



Specification:



Model

567-GT

Max. Sewing Speed

2,000 R.P.M

Max. Stitch Length

5 MM

Max. Sewing Thickness

6 MM

Max. Stitch Width

8 MM

Feed Type

bottom feed

Presser Foot Lift

8/10 MM

Needle

DP*35

Post Bed Height

187 MM

Power Supply

220V



 Keestar 567-GT post bed lockstitch zigzag sail making machine

Machine Details

 Keestar 567-GT post bed lockstitch zigzag sail making machine

FAQ

1. Q: Is machine sample available?


    A: No. We can supply spare parts sample, but customer needs to pay for it and bear shipping cost, we will return the parts value once order confirmed.



2. Q: What service you can supply?


    A: Model recommendation, sample making, technical consulting, after-service support



3. Q: Do you supply overseas installation and debugging?


    A: Yes, but customer needs to bear all overseas expenditure.



4. Q: Is your machine all original with Union Special or Newlong?


    A: No. But for most of the models, it can be 100% replaceable.



5. Q: Do you supply spare parts?


    A: Yes, and with fast lead time.



6. Q: What gurantee you supply?


    A: Limited spare parts one-year guarantee, not including quick-wear parts like needle, looper, throat plate, feed dog, etc.



Company Information

Keestar Industries(Shaanxi) Co., Ltd is leading manufacturer of bag closing machine, bag making sewing machine, automatic heavy duty sewing system and walking foot sewing machine world widely.

 KEESTAR has been focus on developing advanced sewing technology since our establishment. We have developed variety sewing systems for many applications include filled bag open top closing, woven bag making, FIBC(Flexible Intermediate Bulk Containers)seaming, sails manufacturing and repairing, slings and lashing straps, safety harness and ropes, buffing wheel and polishing wheel, shoes and footwear, sofas and automotive upholstery, carpet and rugs, net and mesh, saddles & harness and other seamed products.



KEESTAR holds leading market share in world market for bag closing machine (system) and automatic heavy duty sewing system, and FIBC sewing machine are widely applied by many world class FIBC factories.
