Keestar NP-7K Single Needle Portable Bag Closer Sewing Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Industrial Sewing Machine
Place of Origin:
Shaanxi, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China main seaport or airport
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Keestar NP-7K Industrial Sewing Machine for Bag CloserNegotiableMOQ: 1 Set -
Keestar NP-7K Np-7a Bag Closer Portable Bag Sewing MachineUS$ 1 - 2MOQ: 1 Set
-
Keestar NP-7K Portable Bag Sewing MachineUS$ 1 - 2MOQ: 30 Sets
-
Keestar NP-7A Portable Bag Closer Sewing MachineNegotiableMOQ: 1 Set
-
Keestar NP-7K Np-7a Single Needle Single Thread Bag Closer Sewing MachineNegotiableMOQ: 1 Set
Condition
New
Type
Industrial Sewing Machine
Place of Origin
Shaanxi, China
Brand Name
KEESTAR
Model Number
NP-7K
Stitch Formation
Chain Stitch
Mechanical Configuration
Flat-Bed
Max. Sewing Speed
1700
Max. Sewing Thickness
3mm
Stitch Length
8.5mm
Power
90w
Overall Dimensions
360x260x380mm
Feed Mechanism
Walking Foot
Certification
ISO9000
After-sales Service Provided
Overseas third-party support available

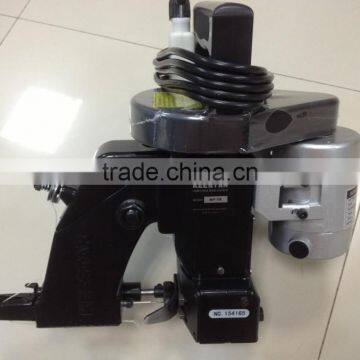

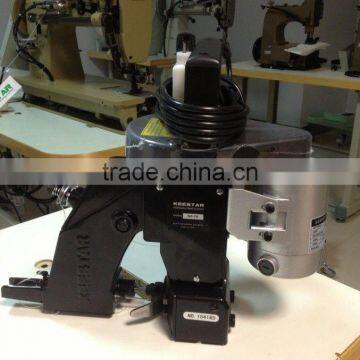

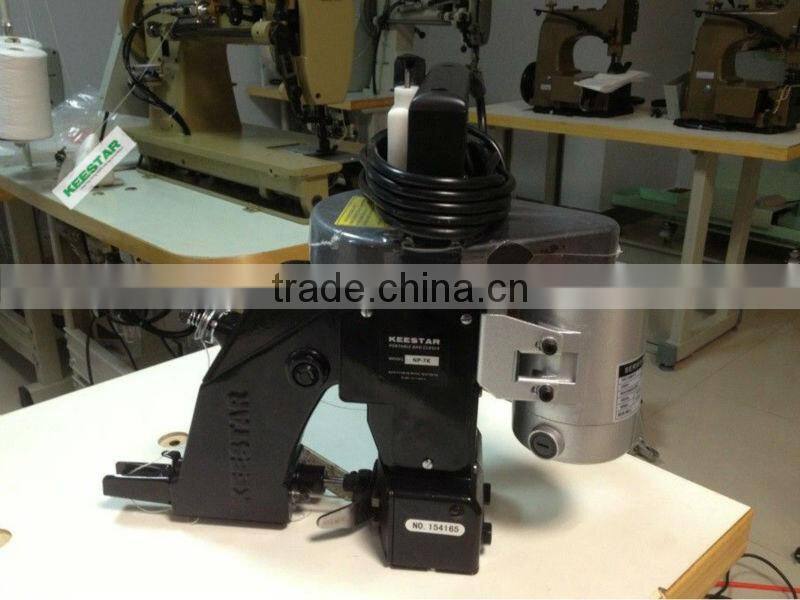

Keestar NP-7K single needle single thread portable bag closer
Product Description
Application:
Keestar NP-7K single needle single thread portable bag closer is the lastest model which is developing from Newlong NP-7A, suitable for closing of all sorts of fill bags, e.g. burlap, jute, woven poly, cotton, plastic and paper with single needle single thread chain stitch 101.
Basing on the most popular model Newlong NP-7A, and all parts could be easy purchase and relaceable all over the world.
Features:
- Single needle single thread chain stitch 101 portable bag closer.
- Speed upto 1,650rpm.
- Fix stitch length 8.5mm.
- Improved looper and simple mechanism.
- Built-in automatic thread chain cutter.

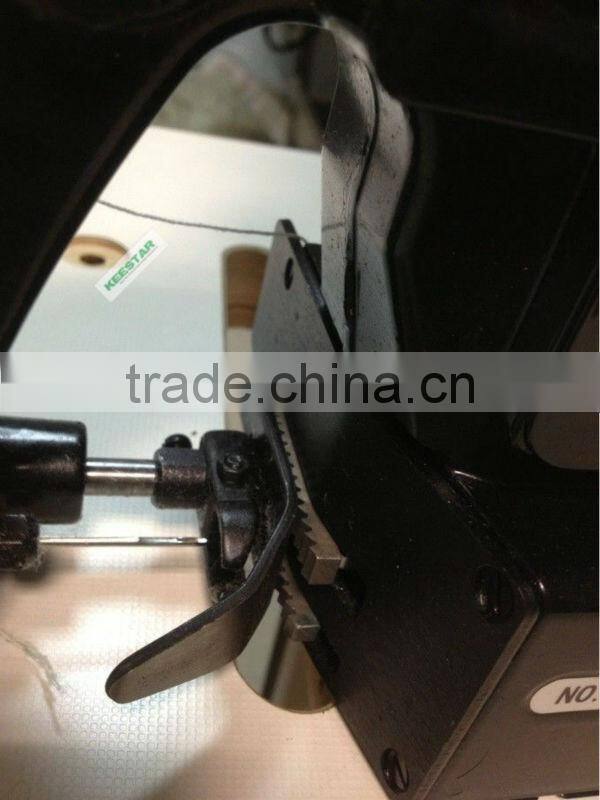

- Improved needle plate and presser foot ensure the thread chain anti-damage during stitching, and the longer needle hole and corresponding groove in the needle plate will be very helpful for fine stitch firmness.
- Heat treatment for all parts, deep anti-rust.
- Ergonomically design, perfectly fits operator's hand and permits effortless operate the Keestar NP-7K portable bag closer.
- Copper alloy made of feed dog carrier block.
- All the bushings made of wear-resistant steel and under grinder machining.
- Aolly made of connecting rod.
- Hexagon screw replace normal screw in key parts.
- Top cover replace into casting aluminium not fragile plastic.
- Extra strong thread stand.
- PP film cover the pulley cover for protection.
- Aluminium cap oil pump and with chain connect.
- Apply aluminium die casting motor.
- Modified plastic made the handle ensur the durability.
- Fit balancer link in each set.
- Well assembly quality, ensure the stable quality.
- Robust construction and safety design.
- Built-in oil pump lubrication system.
- Anti-blocking oil line with felt and spring inside, and direct lubricant to mian moving parts.
- Steel cam(No plastic cams)
- Trouble-free continuous operation.
- Suspended on the spring balacer with hanger available (at extra cost).
Specification:
| Model | NP-7K |
| Sewing capacity | 3mm(0.12 in.) |
| Stitch | Single thread chain Stitch 101 |
| Speed | 1,500-1,700rpm |
| Stitch Range | 8.5mm fixed |
| Lubrication | Semi-automatic |
| Needle | DNx1#25 |
| Thread | Polyester 20/6(2×3) |
| Thread Cutting | Semi-automatic |
| Power | 90W/220v/110v |
| Weight | 5.5kg/7.5kg |
| Dimension | 360x260x380mm |
Attention:
- Please oil the machine throughly before running;
- Please follow the safety instruction strictly before put the machine into operation.
Details:
Welcome visit to find more details.
http://youtu.be/9_lbgJ0uIN4 NP-7K please check the working video for your reference.
