Home > Manufacturing & Processing Machinery > Machinery for Garment, Shoes & Accessories > Sewing Machine > Keestar NP-7K Portable Jute Sack Bag Closer
Keestar NP-7K Portable Jute Sack Bag Closer
Negotiable
MOQ: 50 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other
Place of Origin:
Shaanxi, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China main seaport or airport
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Keestar NP-7K Portable Bag Closer Sewing MachineNegotiableMOQ: 1 Set -
Keestar NP-7K Portable Bag Closer Handheld Sewing MachineNegotiableMOQ: 1 Set
-
Keestar NP-7K Portable Sewing Machine, Plastic Bag Closing MachineNegotiableMOQ: 1 Set
-
Keestar NP-7K Fixed Stitch Length, Hand Sewing MachineNegotiableMOQ: 1 Set
-
Keestar NP-7K Industrial Handheld Sewing MachineUS$ 1 - 2MOQ: 1 Set
Condition
New
Type
Other
Place of Origin
Shaanxi, China
Brand Name
keestar
Model Number
NP-7K
Stitch Formation
Chain Stitch
Mechanical Configuration
Other
Max. Sewing Speed
1700 spm
Max. Sewing Thickness
6mm
Stitch Length
8.5mm
Power
90W
Overall Dimensions
360x260x380mm
Feed Mechanism
Walking Foot
Certification
ISO9001:2000
After-sales Service Provided
Engineers available to service machinery overseas

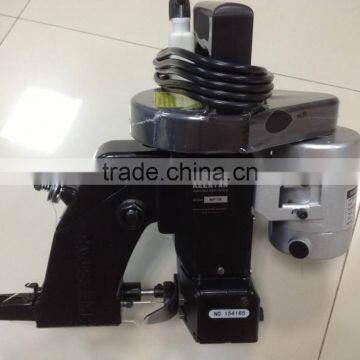

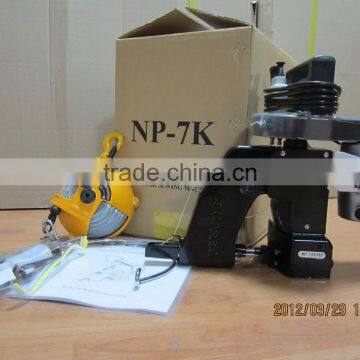

Keestar NP-7K portable jute sack bag closer
Applications:
Keestar NP-7K portable bag closer is the lastest model which is developing from Newlong NP-7A, suitable for closing of all sorts of fill bags, e.g. burlap, jute, woven poly, cotton, plastic and paper with single needle single thread chain stitch 101.
Features:
- Single needle single thread chain stitch 101 portable bag closer;
- Speed upto 1,650rpm;
- Fix stitch length 8.5mm;
- Improved looper and simple mechanism;
- Built-in automatic thread chain cutter;
- Improved needle plate and presser foot ensure the thread chain anti-damage during stitching, and the longer needle hole and corresponding groove in the needle plate will be very helpful for fine stitch firmness;
- Heat treatment for all parts, deep anti-rust;
- Ergonomically design, perfectly fits operator's hand and permits effortless operate the Keestar GK26-1A portabel bag closer;
- Copper alloy made of feed dog carrier block;
- All the bushings made of wear-resistant steel and under grinder machining;
- Aolly made of connecting rod;
- Hexagon screw replace normal screw in key parts;
- Top cover replace into casting aluminium not fragile plastic;
- Extra strong thread stand;
- PP film cover the pulley cover for protection;
- Aluminium cap oil pump and with chain connect;
- Apply aluminium die casting motor;
- Modified plastic made the handle ensur the durability;
- Fit balancer link in each set;
- Well assembly quality, ensure the stable quality;
- Robust construction and safety design;
- Built-in oil pump lubrication system;
- Anti-blocking oil line with felt and spring inside, and direct lubricant to mian moving parts;
- Steel cam(No plastic cams);
- Trouble-free continuous operation;
- Suspended on the spring balacer with hanger available (at extra cost).
Specification:
| Model | NP-7K |
| Stitch | Single thread chain Stitch 101 |
| Speed | 1,500-1,700rpm |
| Stitch Range | 8.5mm fixed |
| Lubrication | Semi-automatic |
| Needle | DNx1#25 |
| Thread | Polyester 20/6(2x3) |
| Thread Cutting | Semi-automatic |
| Power | 90W/220v/110v |
| Weight | 5.5kg/7.5kg |
| Dimension | 360x260x380mm |
Attention:
- Please oil the machine throughly before running;
- Please follow the safety instruction strictly before put the machine into operation.
Details:
Bag closer thread

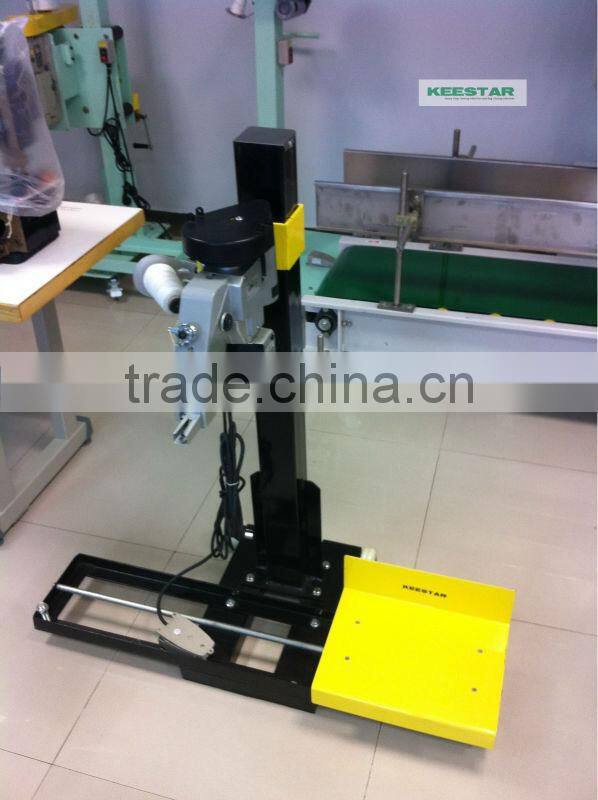

GK-L26 pedestal
Welcome visit to find more details.
http://youtu.be/9_lbgJ0uIN4 NP-7K (Please check the working video in youtube for your reference)
Keestar related products line:
Portable bag closer: NP-7K, GK9-2, GK26-1A, GK2200 and GK1800 portable bag closer
Bag closing machine: GK2, GK3-18, GK35-2C, GK35-6A, GK35-6B, GK35-6C, DS-7C, DS-9C.
Bag sewing machine: GK8-2, GK3-28, DN-2HS. DN-2LHS, DN-2W.
FIBC sewing machine: 81300, 81500, 80700, 80800CH, 80800CDH.
Pedestal: A1-PB, GK-LB, GK-L26, GK-LP, GK-LF.
