Specifications

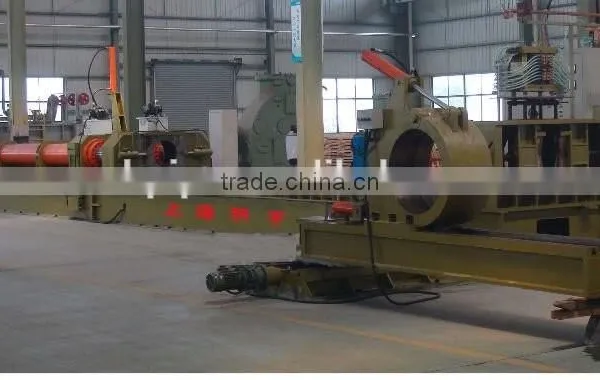

Elbow hot forming machine YRT125A could manufacture the elbows size ranging from1/2'' to 5''The yrt-w series induction elbow forming and pipe bending machine is not only designed for the manufacturing of LR&SR elbows,But also for the bending pipes with small curvature and large curvature radius of carbon steel,alloy steel and nickel steel.
The machine frame was constructed with high strength steel,it has good feature of high stabilty and reliability,economic space occupation and easy installation,easy operation,strong versatility.
The perfect application of the electrice system and hydraulic system to achieve quality and more efficient.
Machine capacity:
Range of pipe bends:OD108MM-1200MM;
Range of pipe thickness:5-100mm;
Range of bending radius:2.5d-20d.
Range of pipe degree:0-180 degrees.
This Elbow hot forming machine YRT125A could manufacture the elbows size ranging from1/2'' to 5''
It has individual power construction and electrical system, adopts PLC centre control, machine is much easy to be operated
It has two heating method: high frequency and intermediate frequency
The application of numerical control plus automatic frequency control made the pushing speed and forming temperature could be monitored and controlled easily, which enables the high quality
It is suitable for batch production
| YRT125A | YRT250A | YRT400A | YRT600A | YRT800A | YRT1200A | YRT1400A | ||
| processing size range (inch) | 1/2-5'' | 4-10'' | 5-16'' | 8-24'' | 16-32'' | 20-48'' | 20-56'' | |
| max processing thickness (mm) | 16 | 26 | 41 | 46 | 46 | 46 | 46 | |
| max pushing power (KN) | 750 | 2000 | 2450 | 4000 | 6100 | 8000 | 11000 | |
| stroke of main cylinder (mm) | 2500 | 6000 | 6500 | 8000 | 8000 | 10000 | 10000 | |
| outlook size (M) | 6.6*0.95*1.0 | 14*1.6*1.5 | 15*1.8*2.0 | 19*2.0*2.2 | 19*2.4*2.8 | 25*4.5*3.5 | 25.5*4.8*3.9 | |
| system pressure (Mpa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| mechanical power (kw) | 11 | 24 | 40 | 54 | 75 | 97 | 105 | |
| heating power (kw) | 80 | 300 | 400 | 500 | 800 | 1250 | 1250 | |
| weight (T) | 5.6 | 13 | 17 | 29.5 | 41 | 72 | 105 |
