Carbon Steel Elbow Hot Forming Machine
US$ 50,000 - 850,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
MINGHENG
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Carbon Steel Elbow Making MachineUS$ 50,000 - 850,000MOQ: 1 Set -
Induction Elbow Bending MachineUS$ 50,000 - 850,000MOQ: 1 Set
-
Induction Pipe Bending MachineUS$ 50,000 - 850,000MOQ: 1 Set
-
Elbow Hot Forming MachineUS$ 50,000 - 850,000MOQ: 1 Set
-
Induction Pipe Bending MachineUS$ 50,000 - 850,000MOQ: 1 Set
Condition
New
Place of Origin
Shanghai, China
Brand Name
MINGHENG
Model Number
YRT100A
Machine Type
Beading Machine
Raw Material
Pipe
Material / Metal Processed
Carbon Steel
Power
Hydraulic
Automation
Manual
Extra Services
Heat Treating
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications

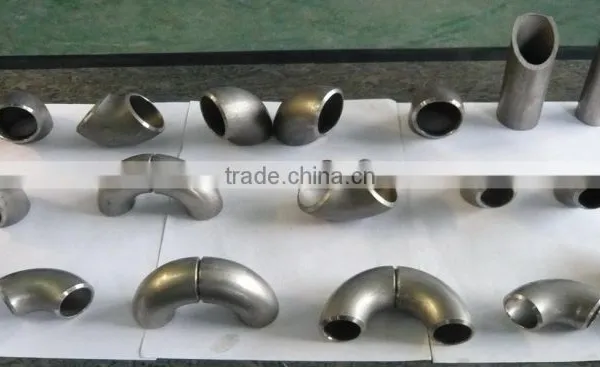

Elbow Hot Mandrel Forming Machine could manufacture the carbon steel and alloy steel elbows ranging from 1/2" to 48"The YRT series Elbow Hot Pushing Machine is designed mainly for manufacturing SR&LR elbows of carbon steel and alloy steel with max diameter up to 1400mm. These elbows are widely used in the connection of the industrial pipelines for the Petrochemical , gas, oil pipes, electrical power and food, etc
It has individual power construction and electrical system, adopts PLC centre control, machine is much easy to be operated
It has two heating method: high frequency and intermediate frequency
The application of numerical control plus automatic frequency control made the pushing speed and forming temperature could be monitored and controlled easily, which enables the high quality
It is suitable for batch production
| YRT125A | YRT250A | YRT400A | YRT600A | YRT800A | YRT1200A | YRT1400A | ||
| processing size range (inch) | 1/2-5'' | 4-10'' | 5-16'' | 8-24'' | 16-32'' | 20-48'' | 20-56'' | |
| max processing thickness (mm) | 16 | 26 | 41 | 46 | 46 | 46 | 46 | |
| max pushing power (KN) | 750 | 2000 | 2450 | 4000 | 6100 | 8000 | 11000 | |
| stroke of main cylinder (mm) | 2500 | 6000 | 6500 | 8000 | 8000 | 10000 | 10000 | |
| outlook size (M) | 6.6*0.95*1.0 | 14*1.6*1.5 | 15*1.8*2.0 | 19*2.0*2.2 | 19*2.4*2.8 | 25*4.5*3.5 | 25.5*4.8*3.9 | |
| system pressure (Mpa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| mechanical power (kw) | 11 | 24 | 40 | 54 | 75 | 97 | 105 | |
| heating power (kw) | 80 | 300 | 400 | 500 | 800 | 1250 | 1250 | |
| weight (T) | 5.6 | 13 | 17 | 29.5 | 41 | 72 | 105 |
