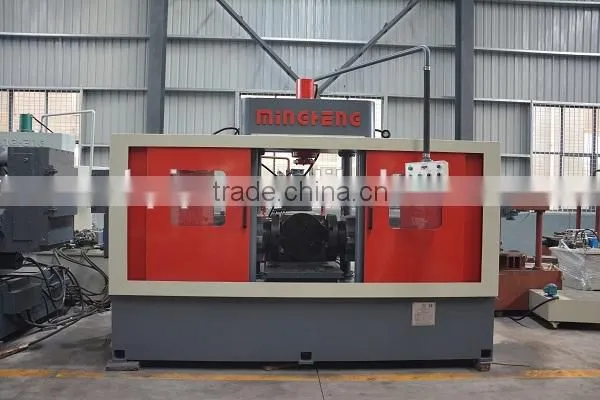

Double Head Reducer Beveling Machine
- 60 Set / Sets per Month
- Shanghai
- T/T
- 10mm hot press brake bending machine for brake pad
- Custom bending press brake and shearing machine
- Square steel tube press brake machine for making gutters
- CNC hydraulic press brake steel bar cutting and bending machine
- Crank type bending machine heavy duty press brake 125t 3200
- 6 axes cnc press brake machine hydraulic for making gutters ceramic
Product Details
Condition: | New | Place of Origin: | Shanghai, China | Brand Name: | MING HENG |
Model Number: | YTPDJ3204B | Machine Type: | Other, elbow beveling machine | Raw Material: | Pipe |
Material / Metal Processed: | Stainless Steel | Power: | Hydraulic | Automation: | Automatic |
Extra Services: | End Forming | Certification: | Other, CE and ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Double Head Reducer Beveling Machine could bevel the elbows ranging from 1/2" to 24" with the thickness from 8mm to 30mm.The YTPDJ series Double Head Reducer Beveling Machine has the features of unique design, compact structure, beautiful look and convenient to operate
It is an ideal equipment for chamfering both concentric and eccentric reducers of sizes from 1/2''-48'' at both ends simultaneously
There are three cutters for each clamp disk, they serve for different range of work and can work at the same time to ensure the effective cutting and fully satisfied the stable requirements of the guide track under the status of strong cutting
Its cutting speed and feeding rate are adjustable in according to the size and the thickness of the reducers
The application of sliding tables with function of fast feeding, inching and fast retreat to enable the safety during work
The products processed by the machine are comply with relevant elbow beveling standard
Technical Specification:
YTPDJ2503A | YTPDJ3204B | YTPDJ4008A | YTPDJ4010B | YTPDJ5012B | YTPDJ5016A | YTPDJ6324A | |||
Processing Size Range (inch) | 1/2-3'' | 1-4'' | 3-8'' | 4-10'' | 5-12'' | 8-16'' | 12-24'' | ||
Max Processing Thickness (SCH) | SCH80 | SCH80 | SCH80 | SCH80 | SCH80 | SCH60 | SCH40 | ||
Spindle Moving Type | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | Hydraulic Stepless Speed Control | ||
Workpiece Clamping Type | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | ||
System Pressure (Mpa) | 7 | 7 | 7 | 7 | 7 | 7 | 7 | ||
Overall Dimension (M) | 1.75*1.5*1.6 | 2.4*0.9*1.9 | 2.7*1.2*2.5 | 2.7*1.2*2.5 | 3.0*1.2*2.8 | 3.0*1.4*3.0 | 3.8*1.6*3.8 | ||
General Power (KW) | 9 | 11 | 19 | 19 | 26 | 34 | 80 | ||
