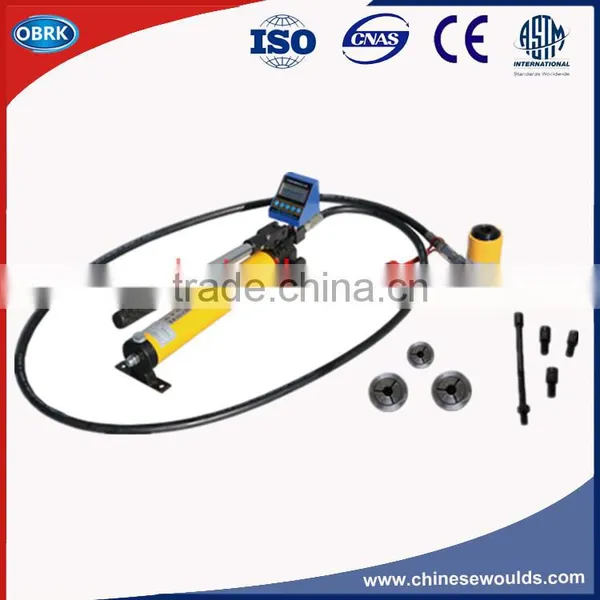

Concrete Reinforced Rebar Pull-Out Test Apparatus With Digital Display

 Reinforced Rebar Pull-Out Test Apparatus

Standard: ASTM C900, BS 1881-207, EN 1542
Used to evaluate the concrete resistance as per the strength applied to extract an insert in concrete. A keyhole slot for easy linkage to fix a bearing ring. The load application is achieved via a hand operated hydraulic pump.

Packing List:

Hydraulic Extraction Unit,

Hand Pump,

Hose with Connector

Puller Cylinder

Technical parameters:

OK-Y1T

Hand Pump: maximum working pressure 63Mpa

Hydraulic Extraction Unit:Max.puller power10KN,center bore18mm,plunger stroke 40 mm

Pressure gauge measuring range:0~10KN

OK-Y2T

Hand Pump: maximum working pressure 63Mpa

Hydraulic Extraction Unit:Max.puller power20KN,center bore18mm,plunger stroke 40 mm

Pressure gauge measuring range:0~20KN

OK-Y3T

Hand Pump: maximum working pressure 63Mpa

Hydraulic Extraction Unit:Max.puller power30KN,center bore18mm,plunger stroke 40 mm

Pressure gauge measuring range:0~30KN

Select Puller Cylinder:    Φ6,Φ8,Φ10,Φ12,Φ14,Φ16,Φ18,Φ20,Φ22,Φ25,Φ28,Φ32
