Technical parameters:
Model: JNG-400
Yield: 30-40 ten thousand / hour
Power source:
AC220V 50Hz arrangement machine
Locking machine AC380V 220V (user optional)
Power: 470W
Qualified rate: ≥99.8%
Filling precision: W ± 5%
Template Accuracy: R0.05mm
Locking limit pressure: 800kg
Dimensions:
1000×400×1200mm (arrangement machine)
590×520×780mm (Locking machine )
Complete Set
1) cap and body are arranged one each in Taiwan
2) locking machine (pre-lock compatible)
3) with a corresponding set of plywood
Weight: 250kg
Main features:
1, key components, hoppers, tops, stainless steel, meet the GMP standard;
2, simple structure, low power consumption, high efficiency, maintenance, easy to clean, very low failure rate.
3, for 00 # 0 # 1 # 2 # 3 # 4 # capsules Fit for various types of capsules filled with a variety of powders and granules;
4, easy to operate, ten minutes to completely learn to operate; easy to replace models, 20 minutes to complete the replacement of the template;
5, capsule filling rate of 100%, the capsule qualified rate of 99.8%, and will not damage the capsule
Uses: For 00 # -4 # capsule cap, body Fit and powder filling
Why choose us ?
The capsule filling machine is nested and developed new products for joint type assembly line. Arranged by the capsule machine (sub-caps, body machine), nested panels, locking machine composed and completed capsule cap arrangement, splice equipment powder and capsules prescribed length of the lock.
JNG-400 capsule filling machine economical million less than full price for a low price of repackaging the filling of hollow capsules, just replace the corresponding capsule filling board when you can fill capsules of different models, you can get a few hundred dollars; and easy to operate . JNG-400 capsule filling machine with economical arrangement of high speed, high efficiency, simple operation, easy maintenance, and low power consumption advantages, is the preferred capsule filling (filling) pharmaceutical companies, health care products factory, hospital preparation room etc. machine.

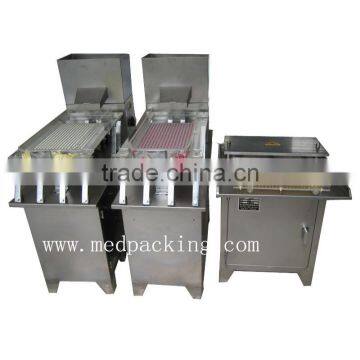

This product each one cap, body-side arrangement capsule machine, a lock and a capsule filling machine plates, capsule filling board by cap plate, plate and intermediate plate. Caps, body-side arrangement capsule machines are responsible for the capsule cap and body are arranged, capsule filling board is responsible for the arrangement of a good hat, body side molding capsules, filling the drug into the body end of the capsule filling plates (plates) The end of the capsule body and the cap by the intermediate plate, filling the capsule body end plate of the cap, the capsule body-side anastomosis; capsule locking machine is responsible for consistent capsule filling plate locking capsule according to a predetermined length.
