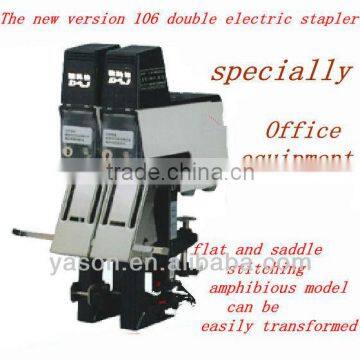

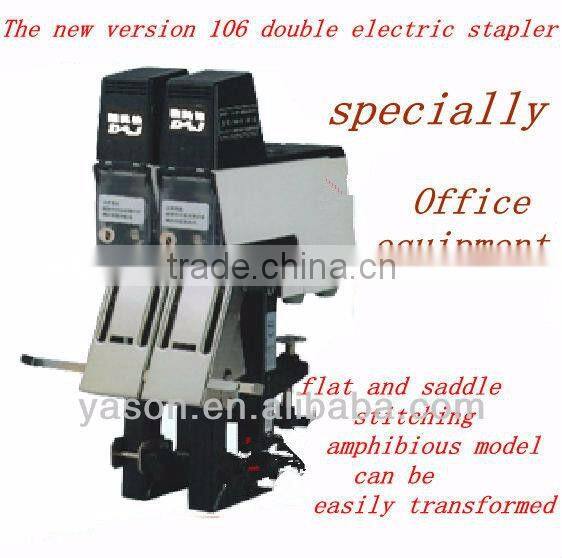

YS-SD02 Double Head Electric Stapler

FOB Price

US$ 1 - 490 / Set

1 Set(Min. Order)

Port shenzhen
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Standard Stapler	Power	Electricity
Material	Other	Size	Normal
Staple Capacity	210	Dimensions	51 * 28* 31 (cm)
Weight	15kg	Brand Name	yason
Model Number	YS-SD02	Place of Origin	Guangdong, China

Product Description

Name:Double Head Electric Stapler, bookbinding machine, saddle binder

Description:

This model is double online, to play two nail at a time, high efficiency saves the manpower, one can control two machines at the same time the injection operation. Also can use do flat nails.

Unique design nail is suitable for flat and saddle stitching method binding document, which can be used for more than a single or continuous synchronization, time, improve the production power, make the binding work more convenient, simple and easy, easy.

Product features:

1, Binding thickness from 2 to 50 paper (80 g);

2, Horse riding, flat nail adjustable depth 100 mm;

3, Can be used for more than a single or series synchronization;

4, Additional safety pedal switch.

5, Margin of two arbitrary adjustable, hit two order at a time, one minute to play more than 60.

6, Two modes: flat/saddle stitching convertible

7, Switch on/off the power switch, indicator light

8, Foot switch, saddle stitching start, start: flat touch switch.

9, Tinker bell high strength screw head, high quality and durable.

10, Nail box nail needle can carry 210

11, Sets binding pressure knob, can be controlled by light to heavy 9 period of nailing force.

12, Supporting board in accordance with the needs of: flat and saddle stitching, and adjust the angle on both sides of the attached side bar gauge.

13, Open circuit protection safety cover.

14, Can machine attachment more binding.

15, Can string a few head for synchronous nail needle, does not occupy a space, increase the work efficiency greatly.

Product parameters:

width:250 mm (with wide table even the machine)

60 mm (With narrow table even fuselage)

Length: 250mm

Height: 483mm

Weight: 4.2Kg

Magazine:210 Rapid 66/6-8mm staples

210 grains of 66/6 66/8 nail needle

Capacity:Up to 40 sheets(75gsm)in flat stapling

Up to 20 Sheets(75qsm)in saddle stapling

Supplied:Table.250*150mm,0.7kg

Attachment pedal, 0.7 kg The workbench and foot

Color: white

Quantity: 1

Net weight: 10.5 (kg)

Gross weight: 12 (kg)

Specifications: 51 * 28* 31 (cm)

Power: 220 v50hz, 110 v60hz - 30 w

Special books: 66/6, 66/8
