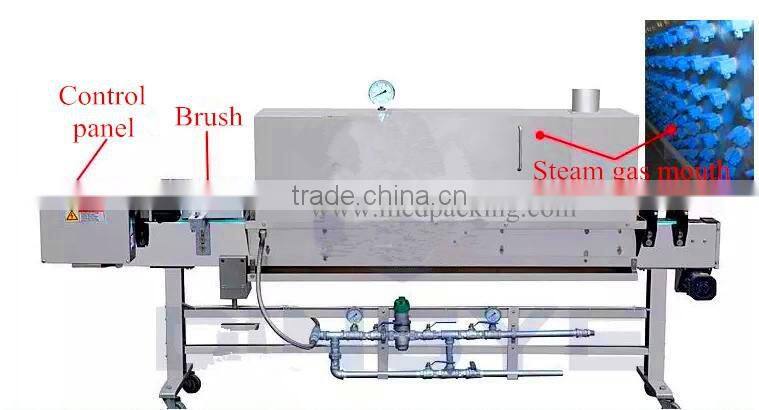

ZBS83A steam label shrinking machine

Name:ZBS83A steam label shrinking machine

ZBS83A Parameters:

Model: ZBS83A

Maximum width of packing:100 mm

Shrink the speed:5000 ~ 15000 b/H

The power supply:220 v / 50 hz

Steam pressure:0.1 Mpa

The total power:150 w

The steam consumption:24 kg/H

The weight:150 kg

The temperature :75 ~ 85 ℃

Shrink the height:200 mm

Installation dimensions (L * W * H):2620 * 500 * 1200 mm

LDR18-0.4 - Z parameters of boiler furnace:

Power:12/24 kw

Voltage:380 v / 3 ph

Pressure:0.4 MPa

Capacity:27L

Evaporation:16/32 kg/H

The weight:76 kg

Product introduction:

Steam label shrinking machine is my company developed a new generation of shrink film machine, exquisite design, beautiful shape, using steam as heat source, has a fast speed, uniform shrinkage, no fold, adjustable power, such as shrinkage effect is perfect, is widely used in mineral water, pure water, soft drinks and tea drinks and other food and beverage industry.

Steam the label shrinking machine manufacturing technology introduced from abroad and combining the characteristics of packaging industry in China to design heat shrinkable label packaging equipment, this machine adopts the electric heating method. Thermal channel automatic constant temperature control, temperature control part adopts advanced non-contact execution parts, long-term stability to ensure that the equipment can work, and reduces the equipment failure. Hot air for the wind system adopts double machine cycle for wind, big air volume, low power consumption, heat evenly, make sure that heating heat supply channels.

This steam label shrinking machine is my company developed a new generation of shrinkable film packaging machine equipment, exquisite design, beautiful shape, using steam as heat source, has a fast speed, uniform shrinkage, no fold, power adjustable, shrinkage effect is perfect; The machine shell with stainless steel.
