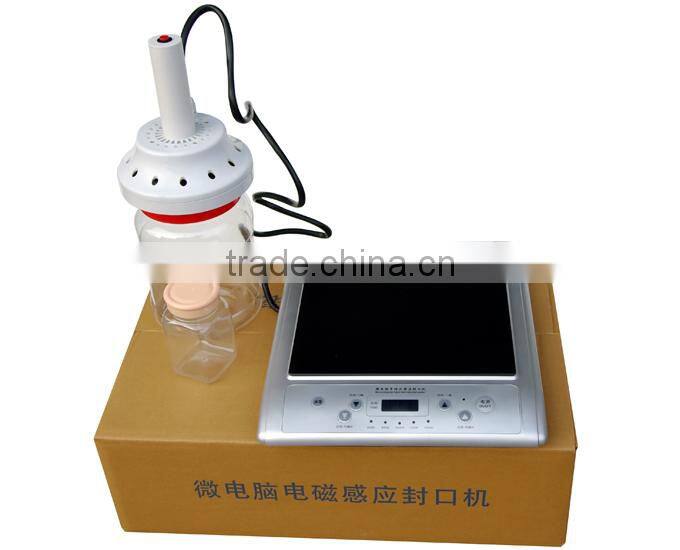

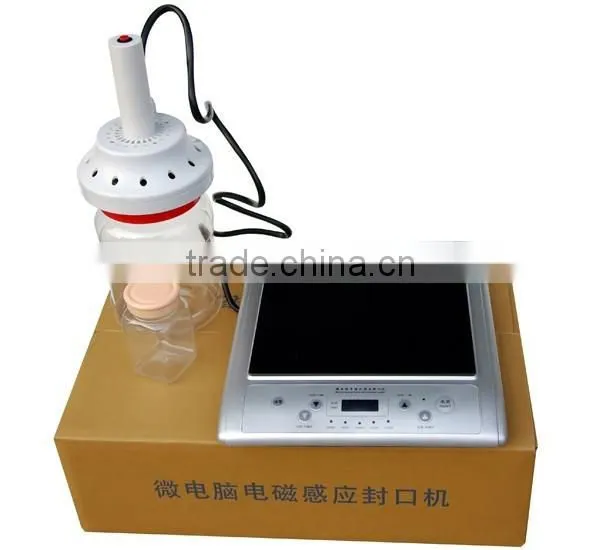

DL-500C Large-caliber Electromagnetic Induction Cap Sealing Machine Sealing Machine Aluminum Foil Sealing Machine Bottle Sealing

Device Name: electromagnetic induction sealing machine

Equipment Model: DL-500C (large diameter, adapt bottle diameter 20-130 mm)

technical parameters

 1.Power supply: 220V
 2.Power: 0.8KW-1.2KW (adjustable)
 3.Static current: <0.1A
 4.The maximum allowable power current: <6A

 5.Enclosure rating: lp21
 6.Operating Frequency: 30KHz (± 5%)
 7.Adaptation bottle diameter :20-130 mm
 8.Carton Size: 540 * 335 * 175mm
 9.Weight: 2.7KG

 Aim: wet-proof,leakage-proof,midew-proof and extending presevation time

Equipment Introduction
The hand-held electromagnetic induction aluminum foil sealing machine for pharmaceutical, chemical, food, beverages, cosmetics, lubricants and other industries plastic glass and other nonmetal packaging containers aluminum foil sealing operation.

Handheld induction sealing machine is used electromagnetic induction heating principle is the use of high-frequency current through the inductor coil generates a magnetic field, when the magnetic field lines through aluminum foil sealing material, instantly generate a large number of small eddy, resulting in aluminum foil own high-speed heat, melt the aluminum foil composite the sol thus attached to the closure of closure order, and to achieve rapid sealing purposes.

 The material can be sealed polyethylene containers (PE), polypropylene (PP), polyester (PET), polystyrene (PS), ABS and glass, etc., can not be used for metal bottles and caps.

Equipment Features
 Imported chip control, high efficiency, low power consumption.
Automatic counting function, effectively control the seal number.
Structural design is reasonable, the touch panel operation convenient and simple.
Automatic heating, overvoltage, overcurrent protection.
Wide voltage range.
