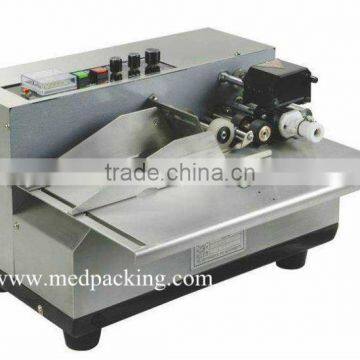

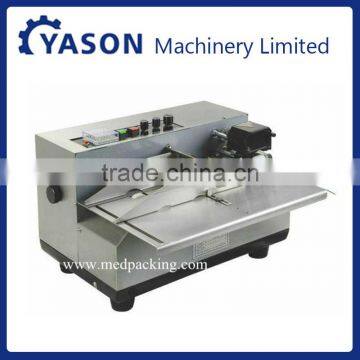

Ink wheel code printer Date coding printer

FOB Price

USD $1 - $382 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port shenzhen
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Automatic Grade	Automatic
Application	Packaging	Place of Origin	Guangdong, China
Brand Name	YASON	Model Number	YS-380FW
Packaging Material	Paper	Packaging Type	Cartons
Driven Type	Electric	Voltage	220V 50Hz
Power	18W	Dimension(LWH)	440 * 465 * 280 mm
Weight	30kg	After-sales Service Provided	No overseas service provided

Product Description

Name:Wider YS-380FW ink wheel code printer ink marking machine date coding printer

Technical parameters:

Power supply voltage: 220V 50Hz

Power: 18W

Solid ink wheel size: 35 * 15MM (two combined)

Print speed: up to 300 beats / min

Minimum to be printed: Length 50 mm * Width 30 mm

Maximum printed material: length 500 mm * Width 340 mm

Max Printing lines: 10 lines, up to 11 characters per line

Imprint location: Unilateral be adjusted within 60-250 mm

Font Size: Width 2 mm * Height 3 mm (entity words)

Dimensions: 440 * 465 * 280 mm

Weight: 26kg

Note: the max width this machine can make is 340 mm

Device Name: Solid ink marking machine

Equipment Model: YS-380FW (wide type, stainless steel)

Equipment Introduction:

Marking machine, also known as rapid ink wheel code printer, use a separate machine, mainly used for paper bags, paper labels, plastic bags, plastic labels and printed on thin paper production date, batch number and other identification. With automatic sub-sheets, automatic counting, automatic positioning and high-speed coding features. This machine adopts advanced solid ink, with instant printing and instant dry, easy to erase the excellent performance, especially for paper, plastic film, aluminum foil bags and other non-absorbent materials and paper packaging production date code.

Equipment Features:

1.Solid ink coder is an advanced contact-type thermal coder. The machine automatically intermittent heating and precision mechanical combination, according to user needs, choose a code content and coding position, and set the number of sheets of play yards play yards fast, reliable, clear writing, playing action code and count using photoelectric switch control.

2.The aircraft structure, stainless steel structure, photoelectric control, automatic counting, and the preset number and location of charge sheets.

3.The use of advanced solid ink printing, writing clear, instant printing and instant dry, easy to erase.

4.The ink marking machine is widely used in medicine, food, cosmetics, hardware and other labels, plastic bags, date, batch number, expiration date printed a variety of industries such as flexible packaging cartons, paper, plastic bags, aluminum foil and other materials surface coding.

The following is the video about this machine :

/watch?v=9ZdOMLiLFoI
