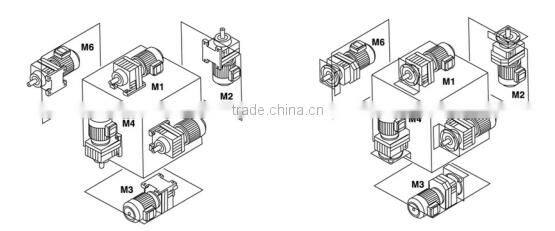

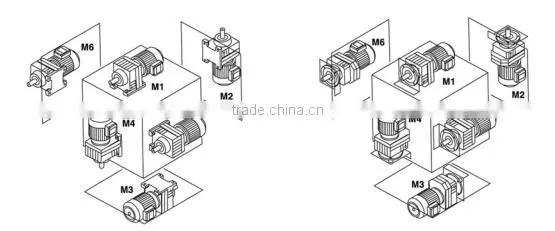

R series Mounting position

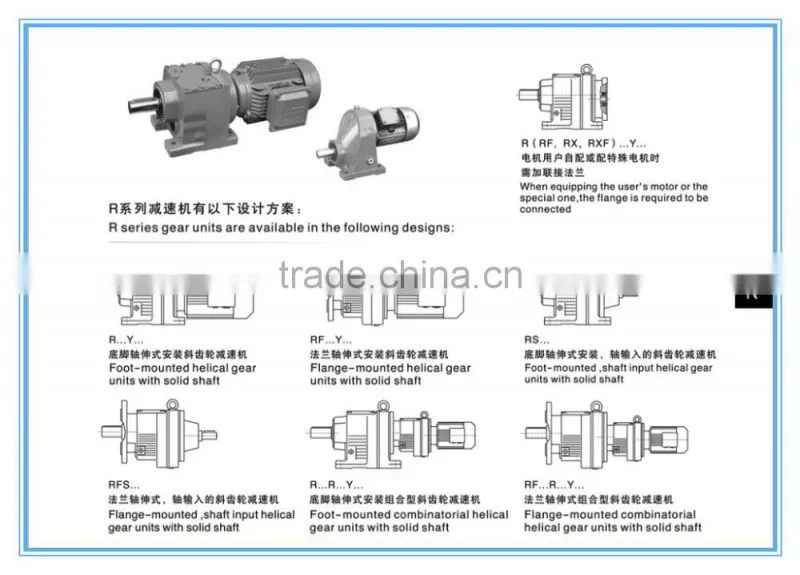

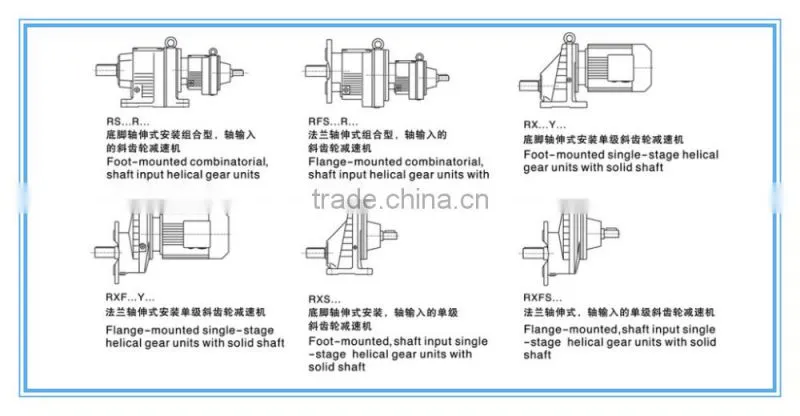

R series designs
R series Input Power and Output torque
Size | 17 | 27 | 37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 137 |
Structure | R (Foot mounting) RF (Flange mounting) | ||||||||||
Input power | 0.18~0.75 | 0.18~3 | 0.18~3 | 0.18~5.5 | 0.18~7.5 | 0.18~7.5 | 0.18~11 | 0.55~22 | 0.55~30 | 2.2~ 45 | 5.5~ 55 |
Ratio | 3.83~74.84 | 3.37~135 | 3.33~134.8 | 3.83~176.8 | 4.39~186.8 | 4.29~199.8 | 5.21~195.2 | 5.36~246.5 | 4.49~289.7 | 5.06~249.1 | 5.15~222.6 |
Torque | 85 | 130 | 200 | 300 | 450 | 600 | 820 | 1550 | 3000 | 4300 | 8000 |
Size | 37 | 57 | 67 | 77 | 87 | 97 | 107 | 127 | 157 |
Structure | RX (Foot mounting) RXF (Flange Mounting) One stage | ||||||||
Input power | 0.18~1.1 | 0.18~5.5 | 0.18~7.5 | 1.1~11 | 3~22 | 5.5~30 | 7.5~45 | `7.5~90 | 11~132 |
Ratio | 1.62~4.4 | 1.3~5.5 | 1.4~6.07 | 1.42~8.0 | 1.39~8.6 | 1.42~8.2 | 1.44~6.6 | 1.51~6.2 | 1.57~6.2 |
Torque | 20 | 70 | 135 | 215 | 400 | 600 | 830 | 1110 | 1680 |
R series weight
| Type | R17 | R27 | R37 | R47 | R57 | R67 | R77 | R87 | R97 | R107 | R137 | R147 | R167 |
| Weight(kg) | 4 | 5.5 | 8.5 | 10 | 18 | 25 | 36 | 63 | 101 | 153 | 220 | 400 | 700 |
| Type | RX37 | RX57 | RX67 | RX77 | RX87 | RX97 | RX107 | RX127 | RX157 | ||||
| Weight(kg) | 5 | 8 | 14 | 23 | 39 | 70 | 100 | 150 | 250 |

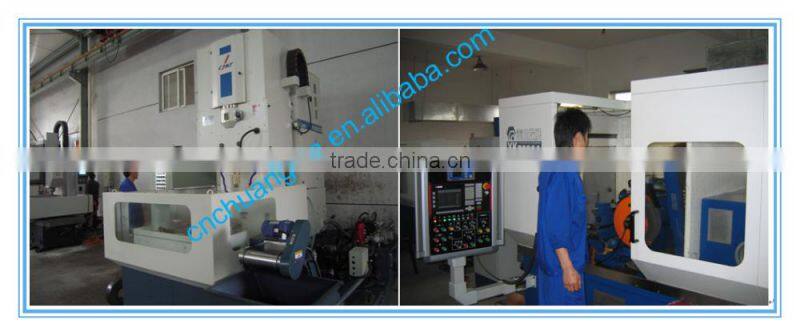

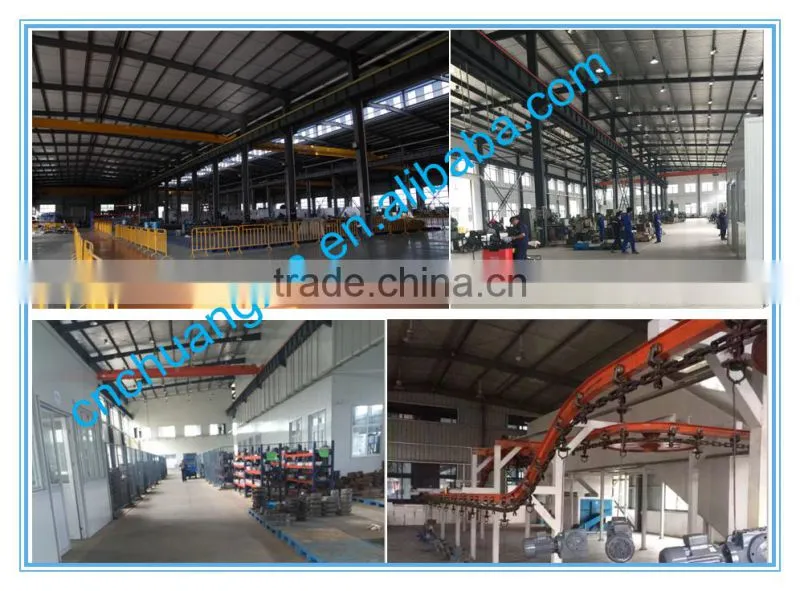

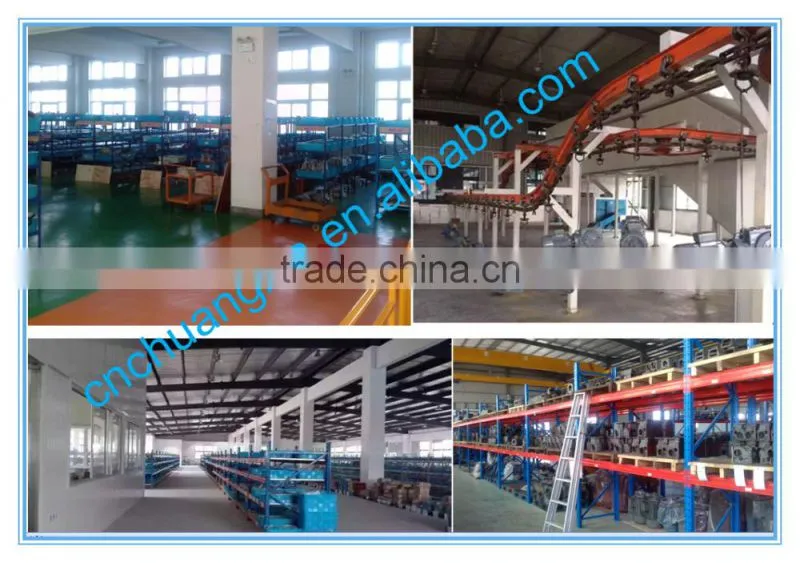

Workshop
Spare Parts Workshop

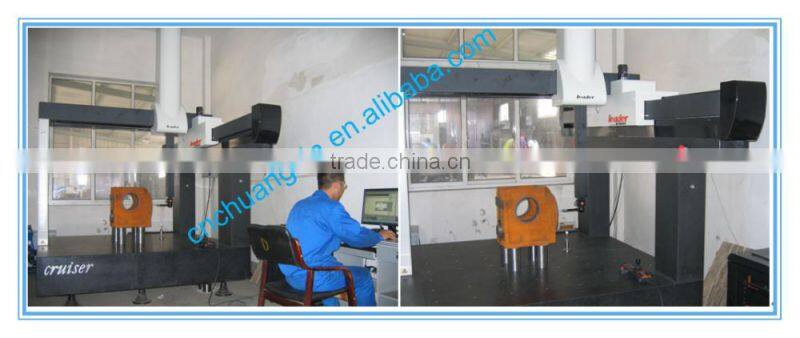

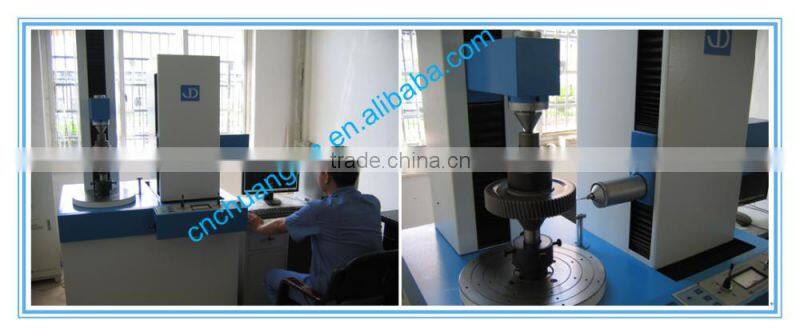

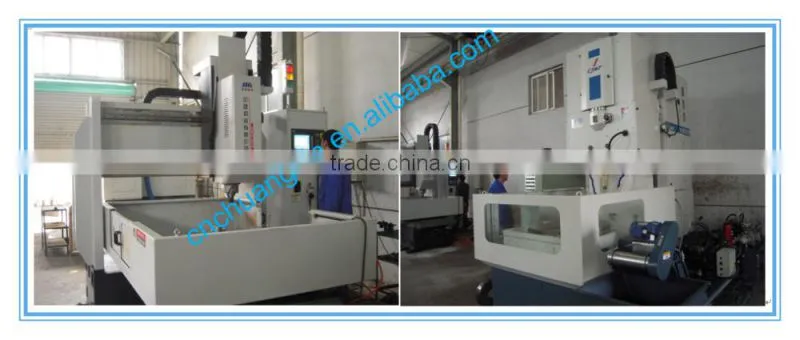

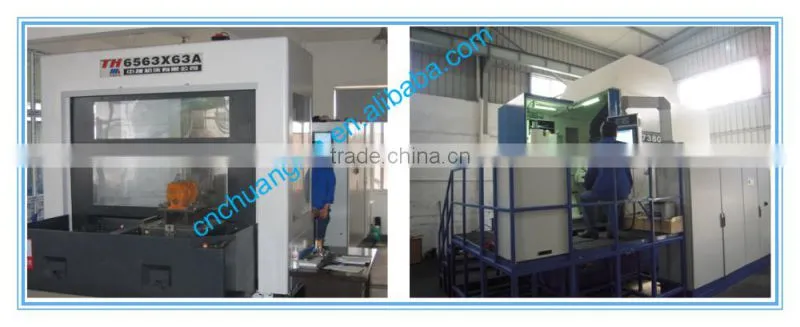

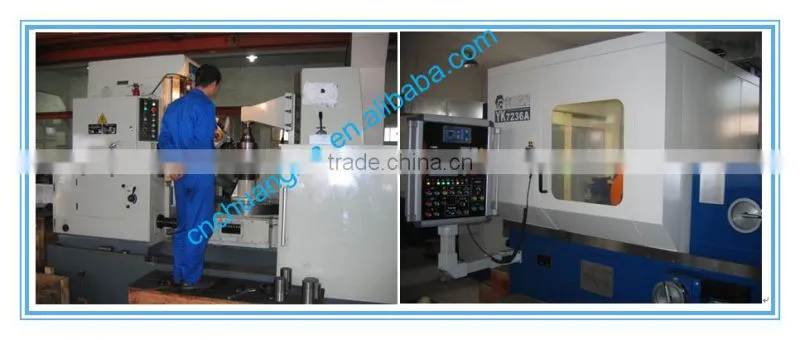

Equipments
Packaging and shipping:
Application case
