Fine gold mining machine, mining concentrator equipment gold dredging machine
- 500 Set / Sets per Month
- Qingdao/Tianjin
- T/T L/C Credit Card PayPal
- High efficiency gold machine/gold mining machine hot sale in Ghana
- 2017 Yigong Small Portable Crusher/grinding ball mill for Gold Mining Machine
- gold mining machine/gold grinding ball mill/gold shaking table
- Gold mine trommel machine for placer gold wash plant
- High efficiency gold machine/gold mining machine/gold grinding machine

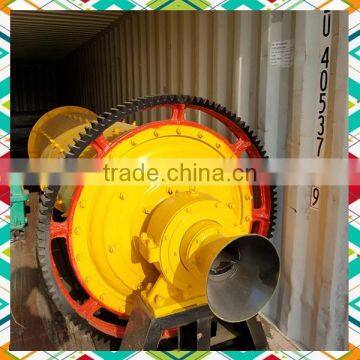

- ball mill for mining gold,gold dredging mining machine,wet ball mill gold mining machine
Product Details
Place of Origin: | Henan, China | Brand Name: | Yigong Machinery | Model Number: | XJK/SF |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details

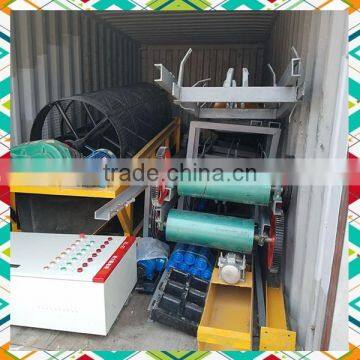

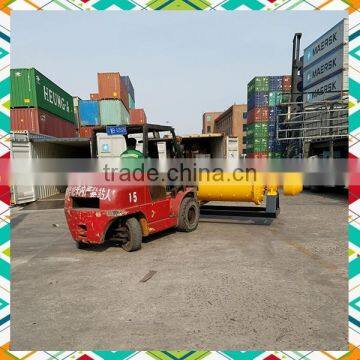

gold mining machine Main equipments are in nude package, the easily lost, damaged, damped, broken ones will be packed in wood crate or composite board crate. We will also satisfy what kind of package style customers need in particular situation, such as the plastic shrink bag.
Product Description
Fine gold mining machine, mining concentrator equipment gold dredging machine
placer gold mining equipment,flotation machine
Introduction of flotation machine:
Yigong floatation machine consists of two series: XJK and SF floatation machine, it is mainly applicable for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry, which are subject to coarse separation, swept separation, fine separation and floatation, so the useful ore are reclaimed.
Working Theory of Floatation Machine:
When the floatation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.
Features of Floatation Machine:
The floatation machine has the advantages of large air-absorption capacity and low energy consumption. Every cell owns three functions: air absorption, slurry absorption, and floatation separation, and the cells form a floatation separation loop by itself without any auxiliary equipment, and is allocated horizontally, which favors the change of flow. The circulation of mineral slurry is reasonable, and can avoid the disposition of coarse sand to the largest extent. There is self-control device on the surface of mineral slurry, so it is easy to adjust it. The impeller has backward-inclined upper and lower vanes, which produce upper and lower circulation of mineral slurrry respectively.
Technical Data of XJK flotation machine:
type | Cell Volume (m3/cell) | impeller diameter (mm) | capacity (m3/min) | impeller Speed (r/min) | Scraper speed (r/min) | Power(KW) | overall Dimension four-cell in one body(mm) | |
Impeller Motor | Scraper Motor | |||||||
XJK-0.13 | 0.13 | 200 | 0.05-0.16 | 600 | 17.5 | 1.5 | 0.55 | 2100*865*900 |
XJK-0.23 | 0.23 | 250 | 0.12-0.28 | 500 | 17.5 | 1.5 | 0.55 | 2625*1130*1290 |
XJK-0.35 | 0.35 | 300 | 0.18-0.5 | 470 | 17.5 | 2.2 | 0.55 | 3012*1350*1320 |
XJK-0.62 | 0.62 | 350 | 0.3-0.9 | 400 | 16 | 3 | 1.1 | 3800*1500*1550 |
XJK-1.1 | 1.1 | 500 | 0.6-1.6 | 330 | 26 | 5.5 | 1.1 | 4680*1820*1950 |
XJK-2.8 | 2.8 | 600 | 1.5-3.5 | 280 | 26 | 11 | 1.1 | 7750*1600*1700 |
Technical Data of SF flotation machine:
type | Cell Volume (m3/cell) | impeller diameter (mm) | capacity (m3/min) | impeller Speed (r/min) | Power(KW) | overall Dimension four-cell in one body(mm) | |
Impeller Motor | Scraper Motor | ||||||
SF0.37 | 0.37 | 200 | 0.2-0.4 | 352 | 1.5 | 0.75 | 700*700*750 |
SF0.7 | 0.7 | 350 | 0.3-0.9 | 400 | 3 | 1.1 | 900*820*950 |
SF1.2 | 1.2 | 450 | 0.6-1.2 | 312 | 5.5 | 1.1 | 1100*1100*1100 |
SF2.8 | 2.8 | 550 | 1.5-3.5 | 268 | 11 | 1.5 | 1700*1600*1500 |
SF4 | 2.8 | 550 | 0.5-4 | 238 | 15 | 1.5 | 1850*2050*1200 |
....
Company Profile
Henan Yigong Machinery & Equipment Co., Ltd. is a manufacturer specialize in building material equipment, mining machines, stone plant equipments,etc. that is founded in 2008 by restructuring. The firster company was established in 1978. Now, We integrate the research, development, production, and sale together. Our company is located in Zhengzhou City which is a transportation junction city of China. After 30 years' development, our company has already owed 3 branch companies and 1 machinery research institute. Our company covers an area of 50,000 square meters, including 15,000 square meters of modern buildings. We have adopted the scientific management mode of modern enterprises, and constantly strived to create novel products. As a result, our company has become a famous enterprise of machinery industry in China.
With many years' development, we have accumulated rich experience in the production and management, and brought up a large number of technical members and management elites. Nowadays, we have 660 employees, including 180 senior and intermediate technical members. Through constant introduction, digestion and absorption, our company has 100 sets of various large and medium equipment and several workshops for casting, forging, thermal treatment, machinery processing, welding, assembly, and machine repair. The maximum capability of assembly lift is 120MT. Our company has passed the evaluation of ISO9001.2000 certification. We constantly renew products, which are well-known around the world and well-accepted by customers.
Our main products include five series, such as aerated concrete equipment, lime-sand brick and autoclaved ash brick equipment, sandstone making equipment, metallurgy and mineral processing equipment and crushing equipment. They can be divided into 30-odd kinds and 100-odd types. These equipment are widely used in building-material, metallurgy, corhart, and ceramic industries.
Welcome to visit our web site : www.enyigong.com and contact us to know more information about our product.
